GE LOGIQ E10

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL

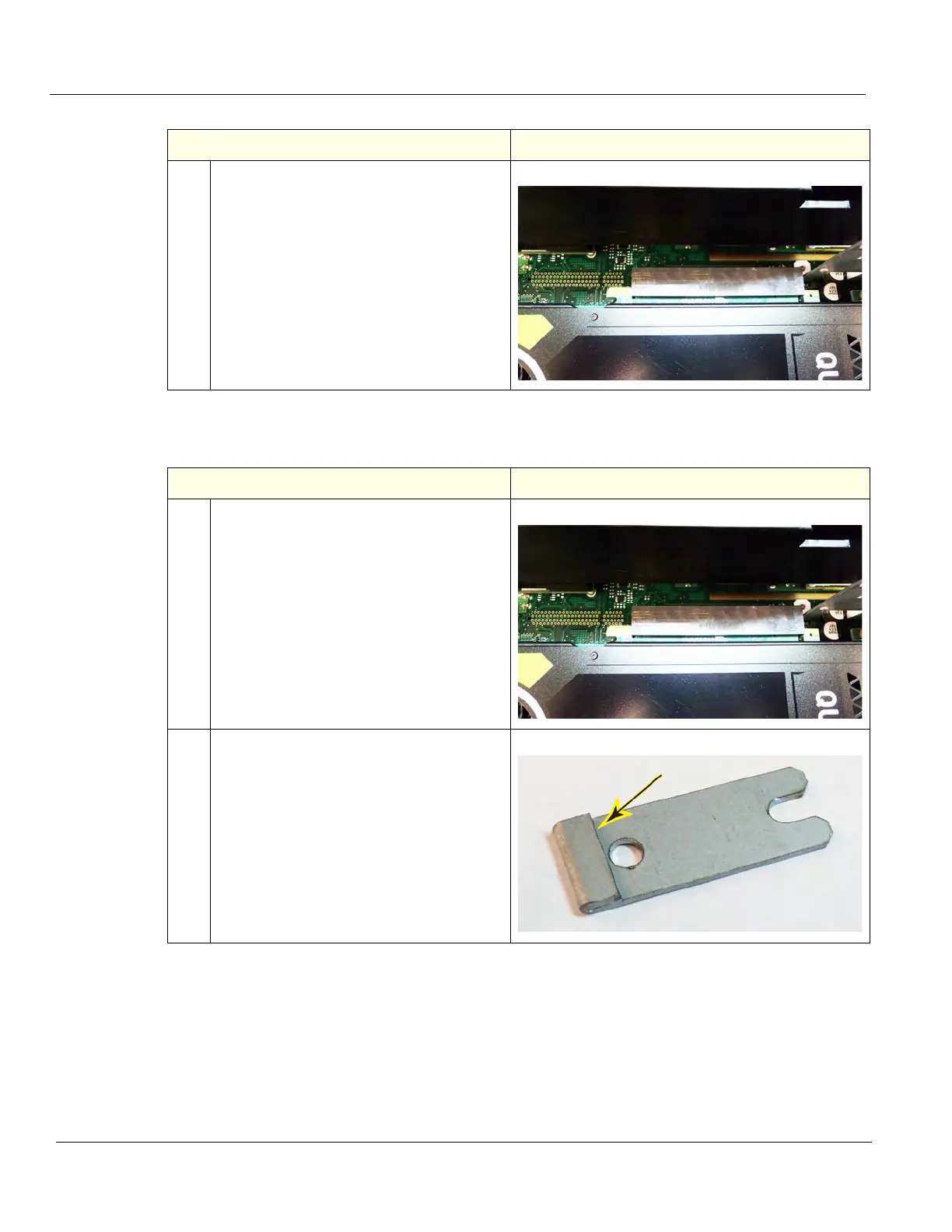

8 - 282 Section 8-11 - Front End Acquisition / Card Cage parts replacement
GPU installation
4.
Grasp the GPU with your forefingers and
thumbs. Make sure your forefingers are
outside of the GPU to ECB connection and
gently slide the GPU out of the connector
(away from the heatsink).
Remove the GPU from the bottom the
ECB.
Table 8-309 GPU installation
Steps Corresponding Graphic
1.
Slide the GPU from the bottom of the ECB
and gently slide the GPU into the GPU to
ECB connection (toward the heatsink).
2.
The upper retainer has slot for the front T10
screw and a lip to balance the installation of
the GPU.
The retainer must be re-installed with the lip
toward the GPU.
Table 8-308 GPU removal
Steps Corresponding Graphic
