DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 315
NOTE: The Option covers are secured to the Option Bracket with M4 threaded studs, as part of the
Option Bracket and M7 flange nuts. All Options may not be present.
All the Option covers, can be removed at once, if desired. The Shear Wave Capacitor Pack is
the only Option in the Option Box that does not have a removable cover.
It is not necessary to remove the ECG (Patient I/O Module) or the Rear I/O, but the USB Cable
at the bottom of the Rear I/O, and all other cabling will have to be removed.
Preparation Links (if you need more information):
• 4-2-4 "Power SHUT DOWN" on page 4-9.
• 8-6-3 "Side Cover(s)/Side Air Intake (Filter) inspection / replacement" on page 8-33.
• 8-6-4 "Front Cover replacement" on page 8-38.
• 8-11-3 "Front End Card Cage Cover replacement" on page 8-255.
• 8-11-4 "Front Plane / XD BUS replacement" on page 8-259.
• 8-6-14 "Printer Filler Storage replacement" on page 8-66.
• 8-11-20 "Printer Tray replacement" on page 8-345.
• 8-16-8 "Printer (Digital Graphic) replacement" on page 8-427.
• Section 8-16 "Options replacement" on page 8-406.
CAUTION
During this procedure, wear cut resistant gloves to avoid scraping your hands when
reaching into the Main Console or blind spaces.

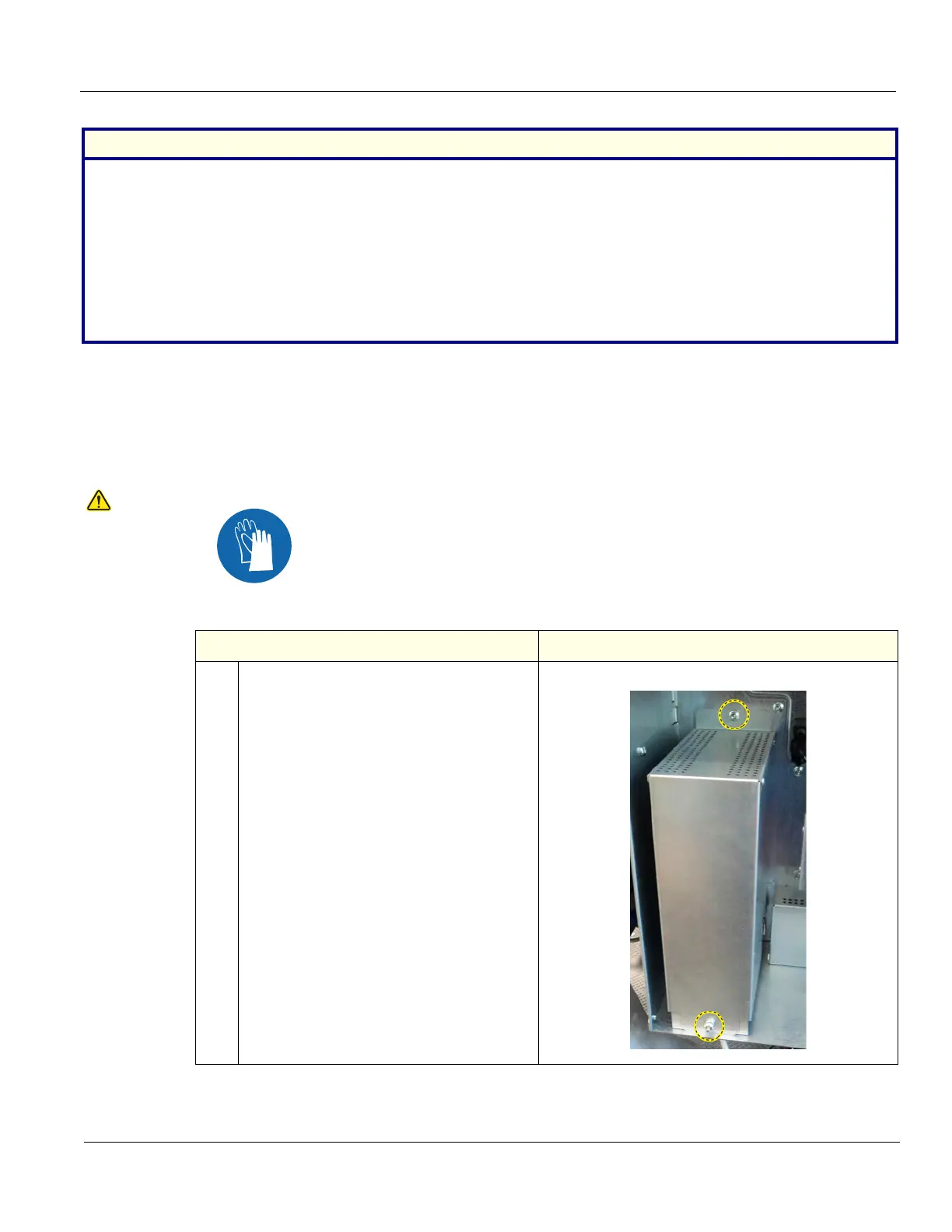

Table 8-334 Connector Panel replacement
Steps Corresponding Graphic
1.
Remove the two flange nuts securing the
Battery Cover to the Option Bracket, using
a 7 mm driver.
Remove the Cover.
Table 8-333 Preparations and Preparation Links
Preparations - you must perform the following steps
To Next Page
