GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 316 Section 8-11 - Front End Acquisition / Card Cage parts replacement
2.

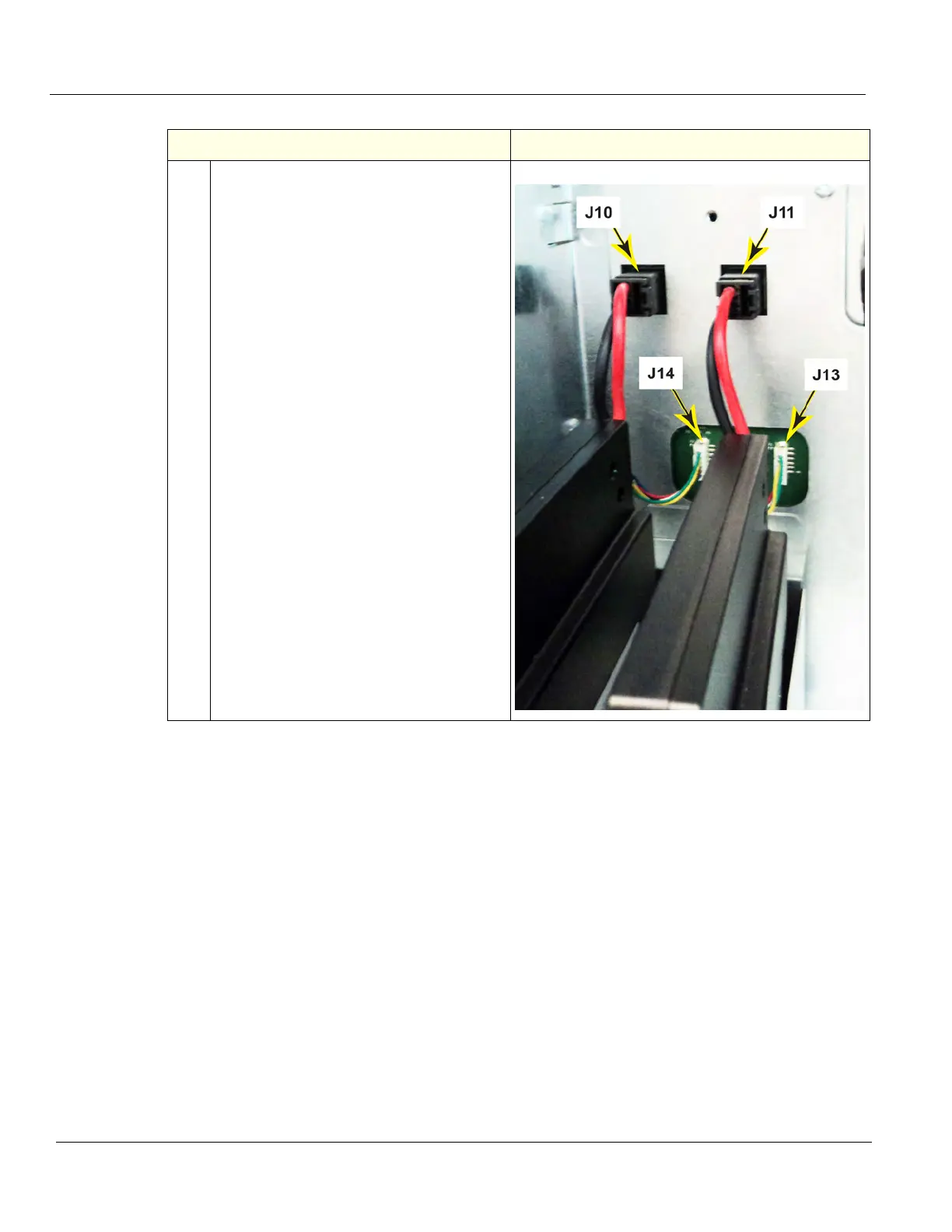

Disconnect the from the Backplane:
the Batteries power J10 and J11, and the
signal/communication connections J13
and J14.
NOTE: The power J10 and J11
connections of the Batteries MUST BE
DISCONNECTED as part of the Energy
Control and Power Lockout for the
LOGIQ E10.
Remove the batteries.
Table 8-334 Connector Panel replacement
Steps Corresponding Graphic
