GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 317
3.
Remove all Options within the Option Box.
Place all the Options on an ESD safe place.
Disconnect all cabling to the Backplane.
Proceed to the next step for removing the
Options.

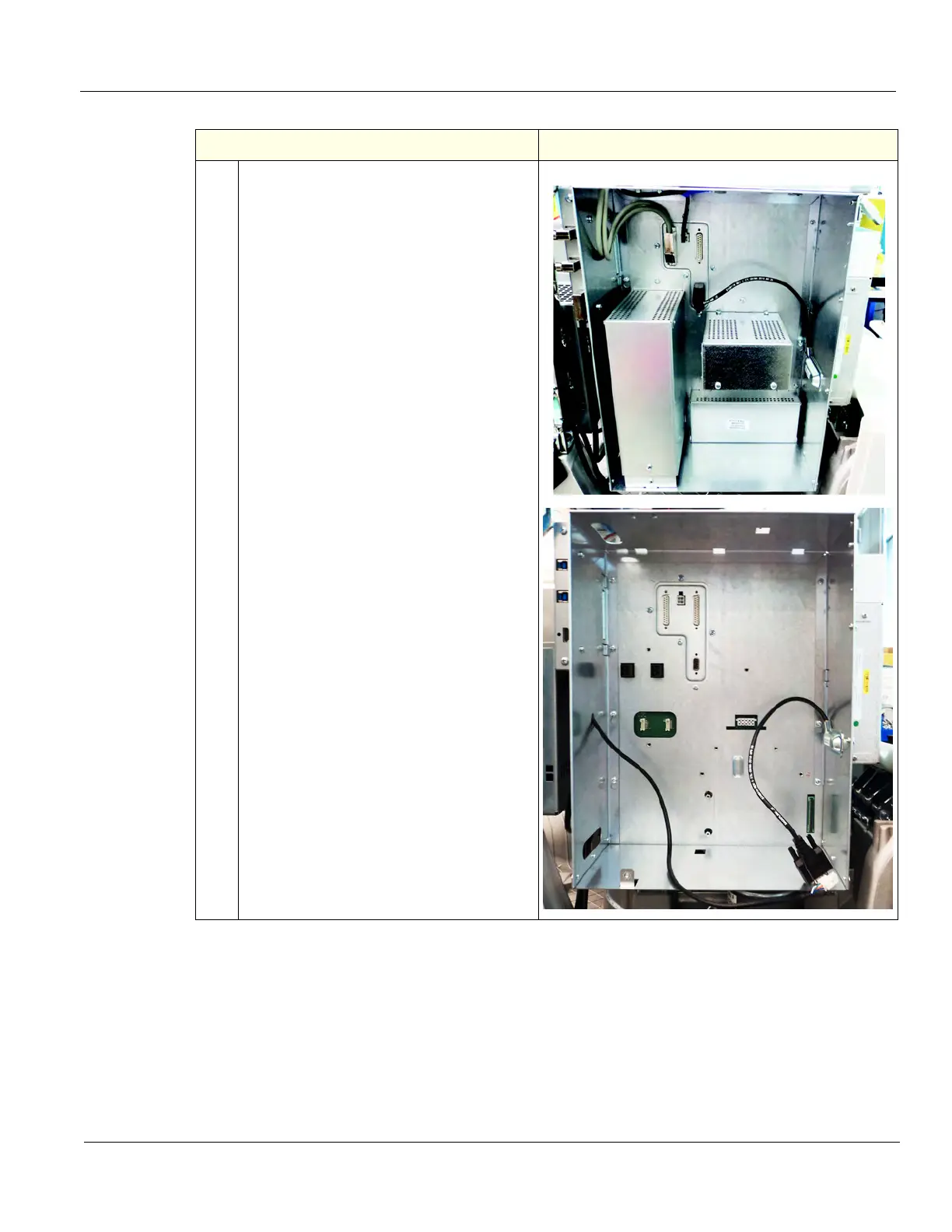

Options installed (Options and cabling
removed are shown below).
Table 8-334 Connector Panel replacement
Steps Corresponding Graphic
