GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 318 Section 8-11 - Front End Acquisition / Card Cage parts replacement
4.
Remove the flange nut securing the Battery
Bracket to the Option Bracket.
Remove the Bracket.
5.
Remove the screw securing the Subwoofer
audio cable grounding clamp to the Option
Box.
Place the cable and clamp below the
Option Box.

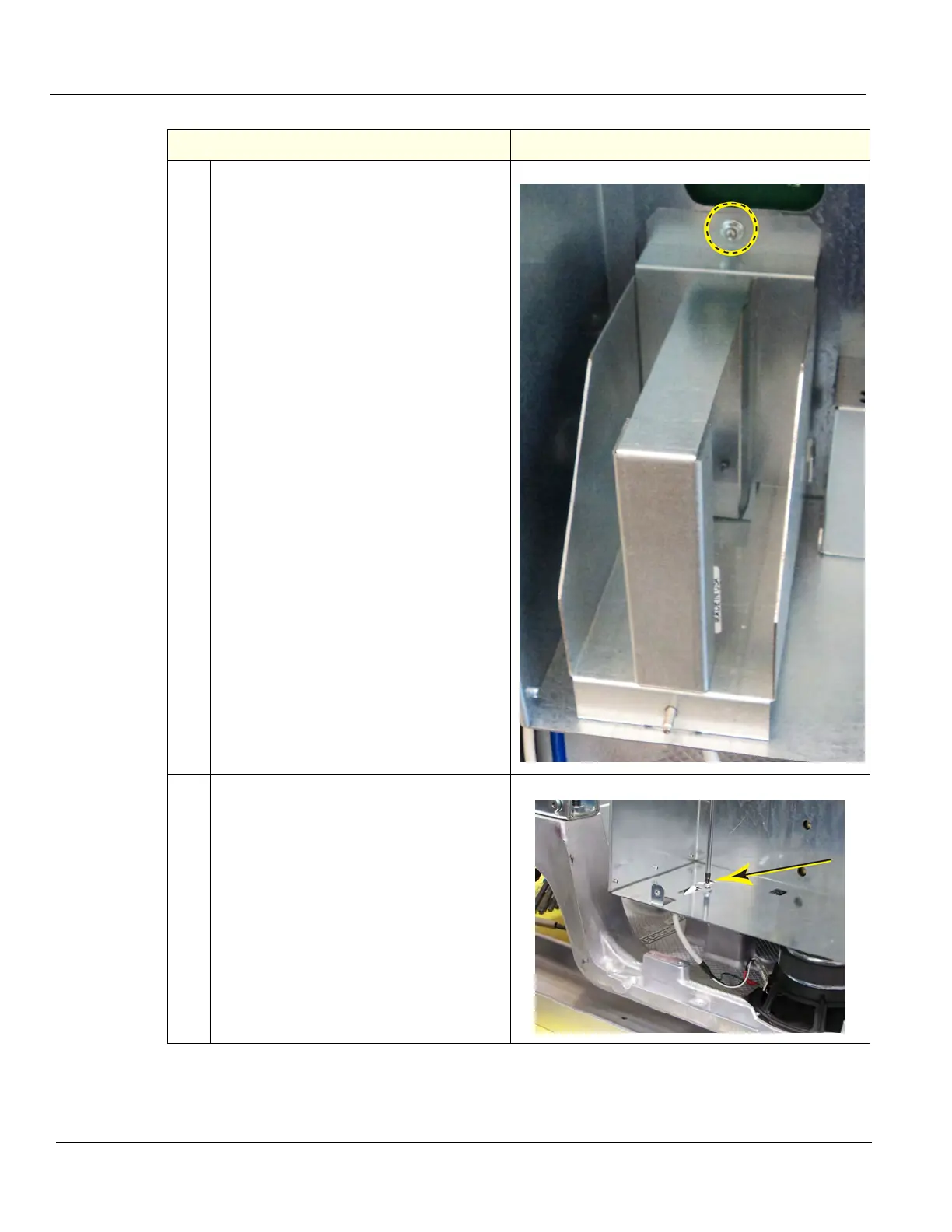

Table 8-334 Connector Panel replacement
Steps Corresponding Graphic
