GE LOGIQ E10

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 350 Section 8-11 - Front End Acquisition / Card Cage parts replacement
3.
Re-install the Cables to the Holder(s) replaced.
To:
1) MPS USB2
2) XYZ Controller USB2
3) BW Printer USB2
4) Rear I/O HDMI
5) Rear I/O Network
6) Rear I/O USB2
7) Rear I/O USB3
G) USB Cable - MPS
J) Rear I/O USB3
K) Rear I/O USB2
L) Rear I/O Network
M) Rear I/O HDMI
N) USB Cable - XYZ Controller
U) USB Cable - BW Printer
4.
Re-install all Covers removed.

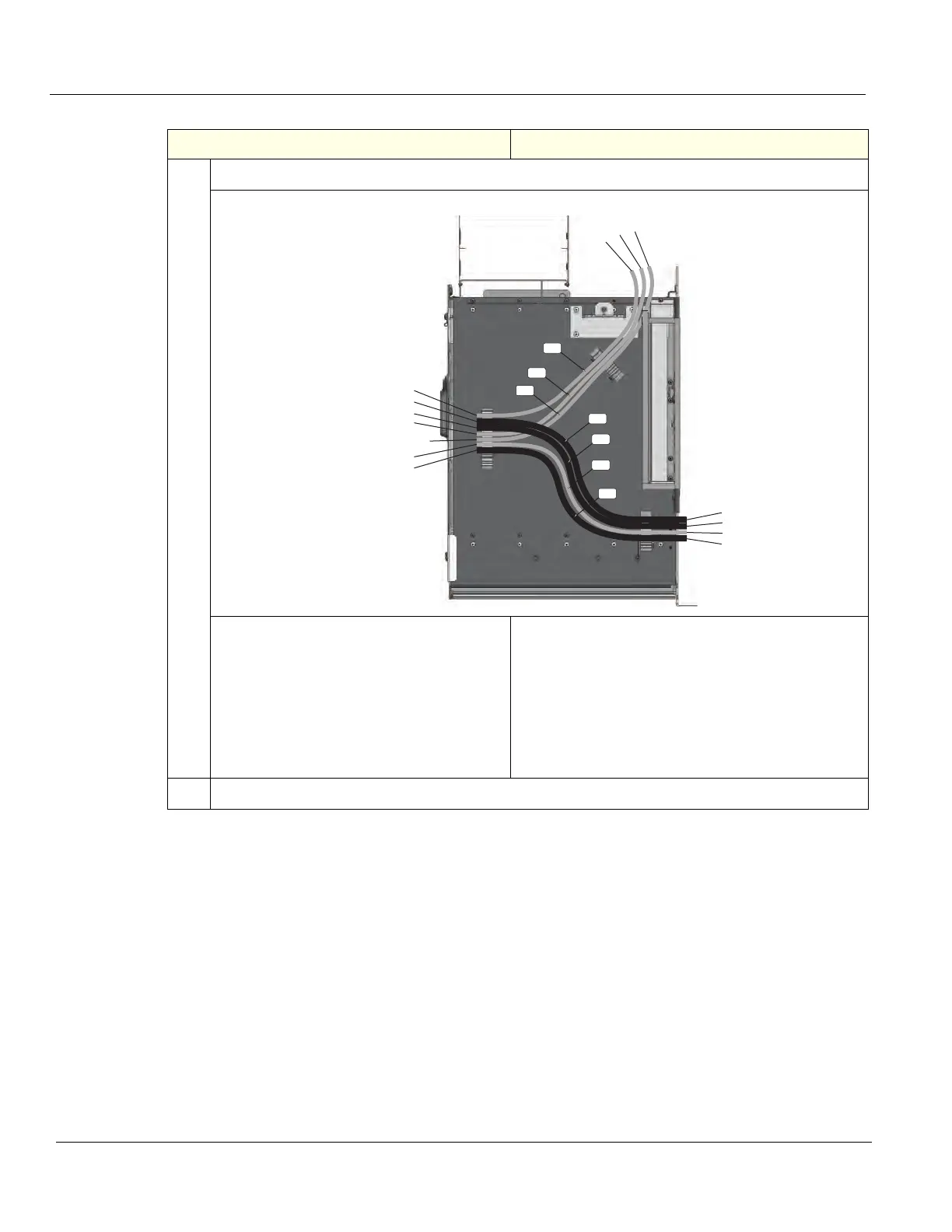

Table 8-364 Cable Holders - ECB, MPS and Rear I/O replacement
Steps Corresponding Graphic
M
G
N
U
J8 (USB2)
J9 (USB2)
J10 (Network)
J11 (USB2)
J12 (USB2)
J13 (USB2)
J14 (USB2)
L
K
J
1
2
3
4
7
6
5
