8 - 354 Section 8-11 - Front End Acquisition / Card Cage parts replacement
2.

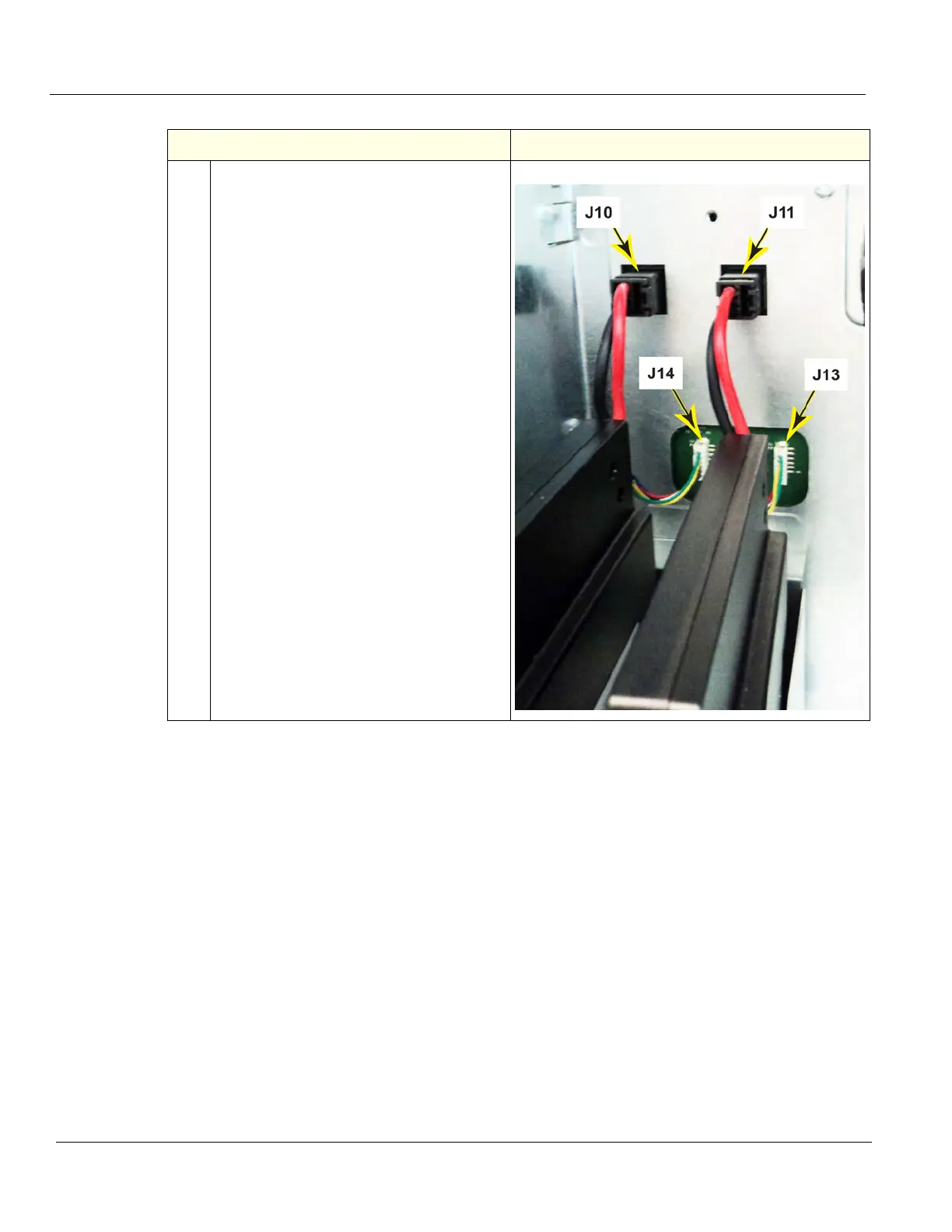

Disconnect the Batteries power J10 and
J11, and the signal/communication
connections J13 and J14.
NOTE: The power J10 and J11
connections of the Batteries MUST BE
DISCONNECTED as part of the Energy
Control and Power Lockout for the
LOGIQ E10.
Remove the batteries.
Disconnect all cabling to the Back Plane.
Table 8-368 Option Box removal
Steps Corresponding Graphic
