GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 357

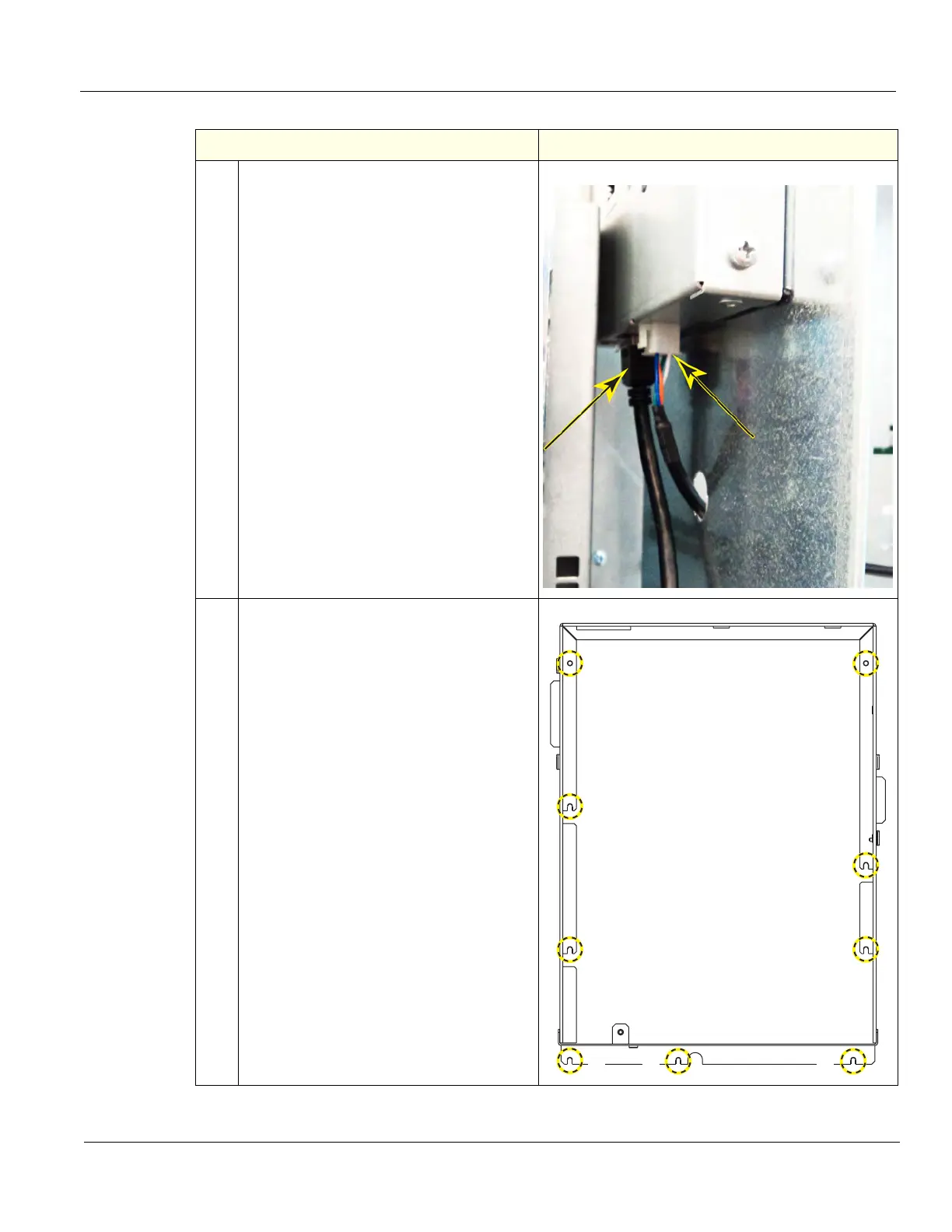

7.
Slide the Rear I/O straight off the Option
Box and disconnect the Network Cable and
Power Cable.
8.
There are 9 flange nuts securing the Option
Box to the Option Bracket (three are
underneath). ONLY the TOP SIX have to
be removed. The lower three (A), only have
to be loosened.
Loosen the lower three (A) and remove the
top six, using a 7 mm driver.
NOTE: Be aware, the Subwoofer magnet
may draw the Option Box to it, as it is
removed.
Lift the Option Box up slightly and turn it
away from the Main Power Supply and
continue to remove the Option Box away
from the Card Cage.
Table 8-368 Option Box removal
Steps Corresponding Graphic
A A A
