DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 403
8-15-3 Adjusting Tension on Sliding Mechanism
Table 8-398 Adjusting Tension on Sliding Mechanism
Steps
Corresponding Graphic
1.
Remove the plastic bolt cap from the lower
tension nut.
The clamping knob must be unlocked while
making this adjustment. Using the 1/2 inch
socket wrench, loosen or tighten the
tension nut for the desired tension.

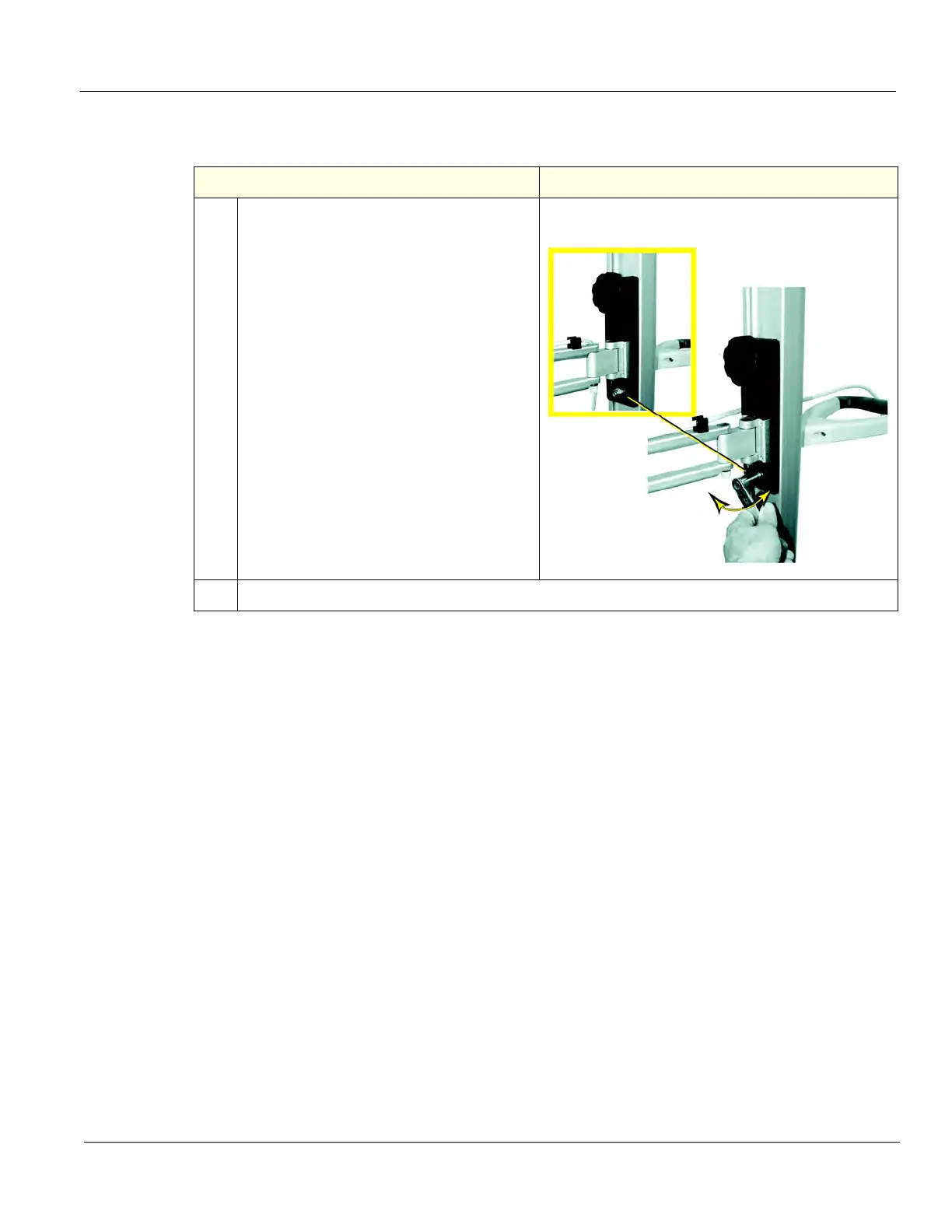

Plastic Bolt Cap for tension nut and Unlocking
Clamping Knob
2.
Perform Functional Checks.
