GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 425
2.
With the Batteries power J10 and J11
disconnected (part of the Energy Control
and Power Lockout), disconnect the
signal/communication J13 and J14
connections from the Backplane.
Remove the Batteries.
Regulations vary for different countries.
Dispose of a used battery in accordance
with local regulations.
Slide the replacement Batteries into the
Battery Bracket and connect the power J10
and J11 and signal/communication J13
and J14 connectors to the Backplane.
3.
Re-install Battery Cover and Left Side cover.

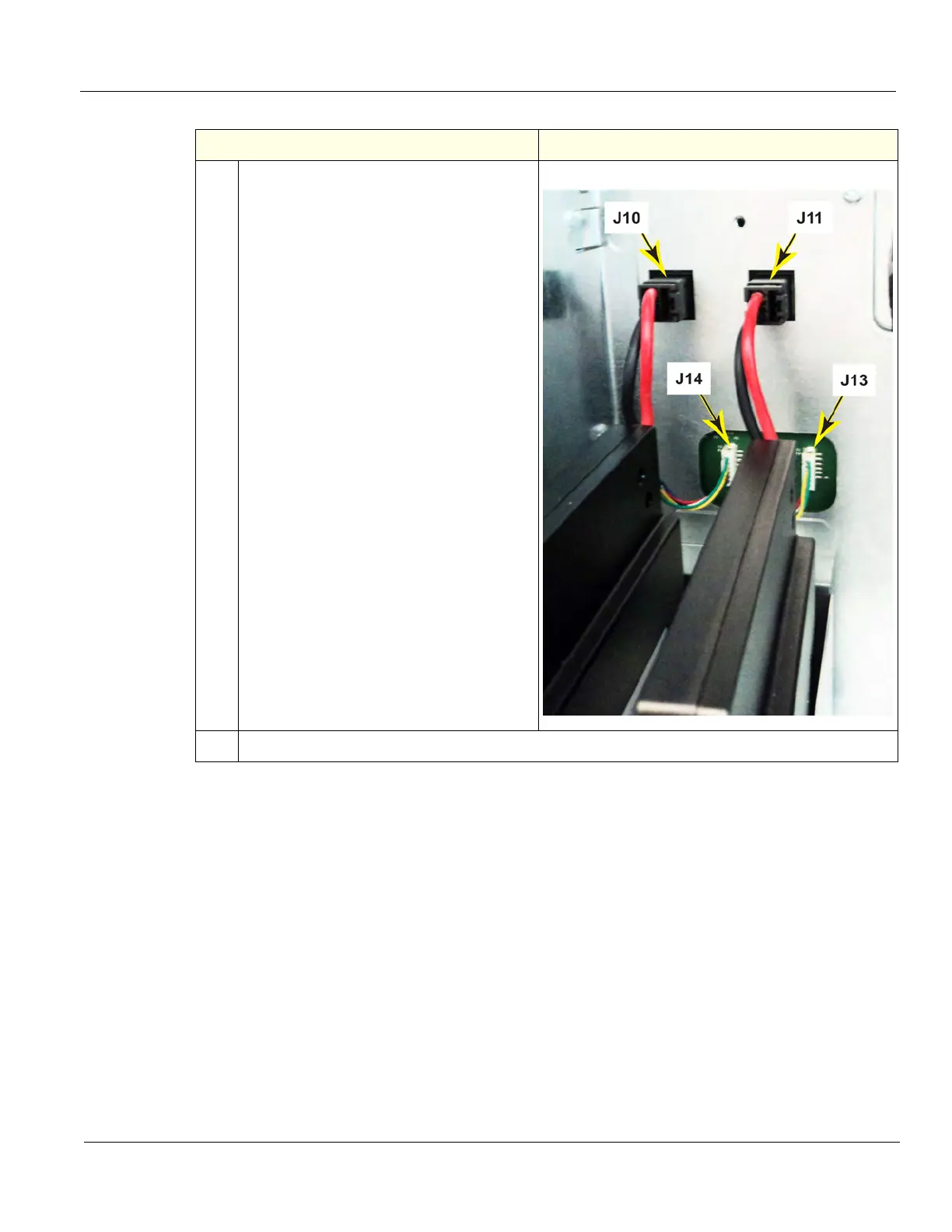

Table 8-419 Power Assistant Option replacement
Steps Corresponding Graphic
