GE LOGIQ V1 User Manual

Scan Coach (Option)
LOGIQ V2/LOGIQ V1 – User Guide 2-37
Direction 5610736-100 Rev. 9
Edit Scan Coach Protocol (continued)
3. Select the Scan Plane. Select Browse to upload the
reference image.

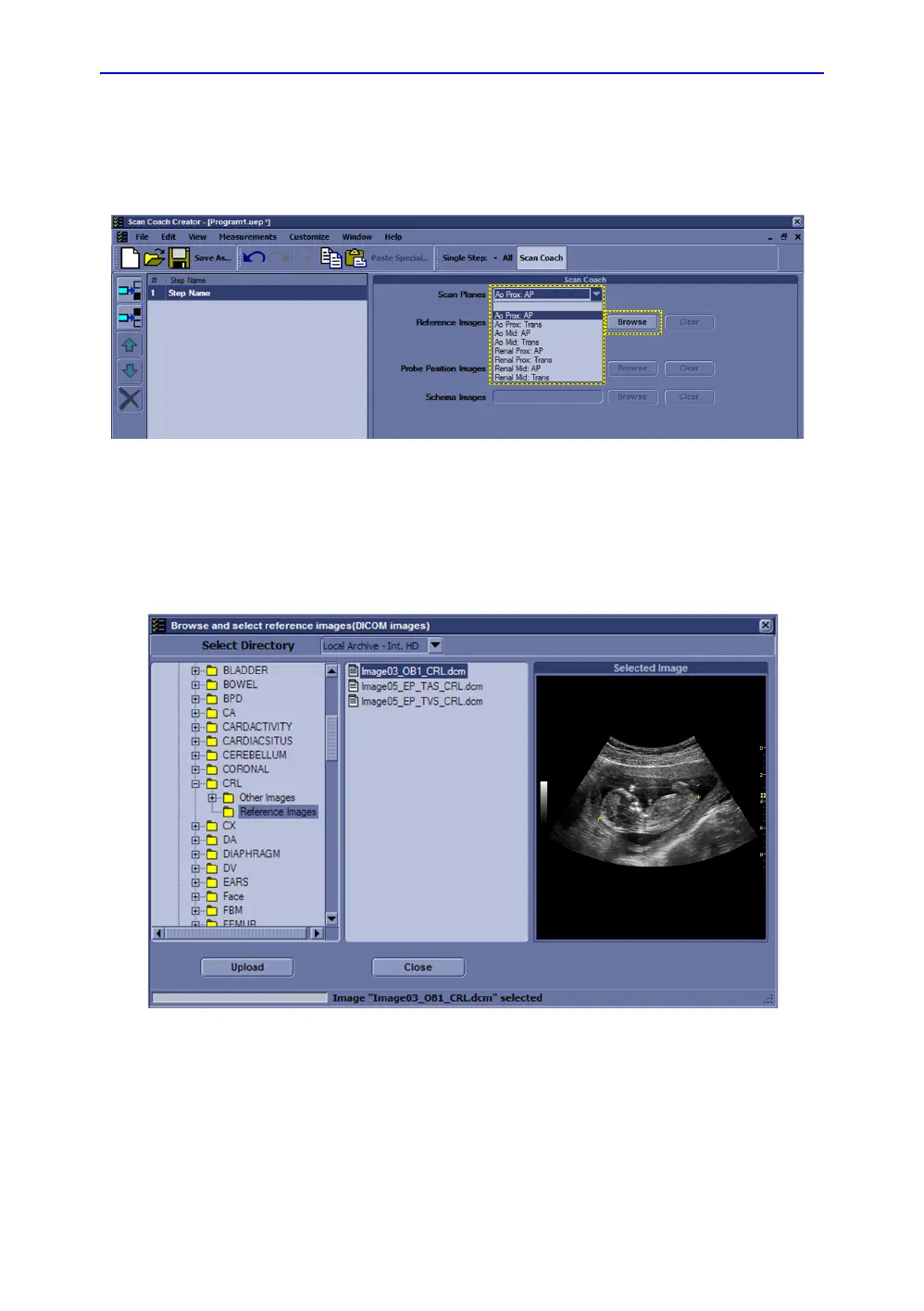

Figure 2-22. Select Scan Plane
4. Select Upload to Upload the reference image from the
folder called “Reference Images” of the corresponding
application. Then select Close after the upload is complete.
NOTE: The reference image only supports *.dcm file.
Figure 2-23. Upload Reference Image
