GE LOGIQ V1 - Phantoms

After the Exam is Over
3-56 LOGIQ V2/LOGIQ V1 – User Guide
Direction 5610736-100
Rev. 9
Phantoms (continued)

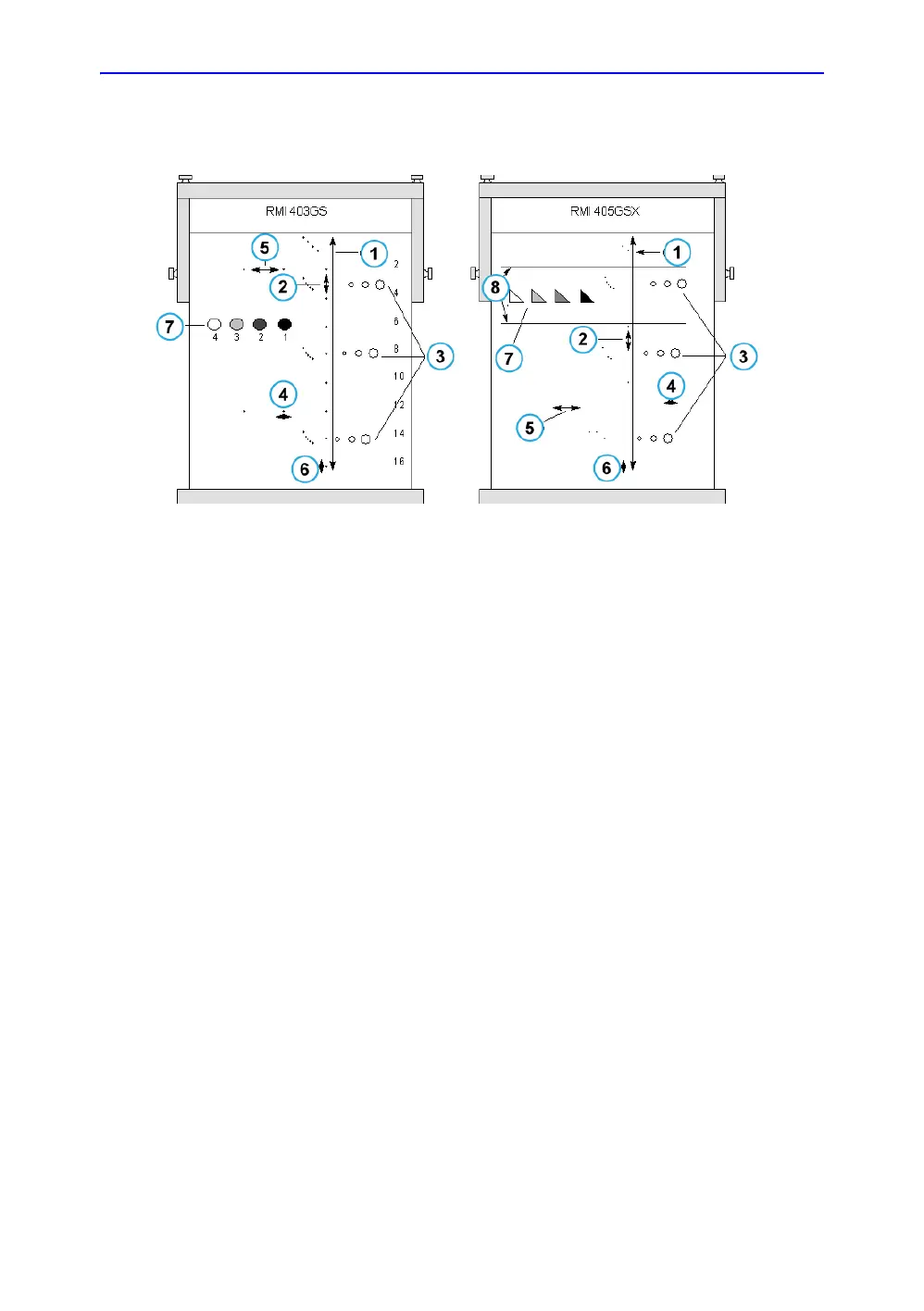

Figure 3-35. Phantoms
1. Penetration
2. Axial Distance Measurement
3. Functional Resolution
4. Lateral Resolution
5. Lateral Distance Measurement
6. Axial Resolution
7. Contrast Resolution and Gray Scale Photography
8. Gray Scale Plane Targets
