Location of Measurement Controls

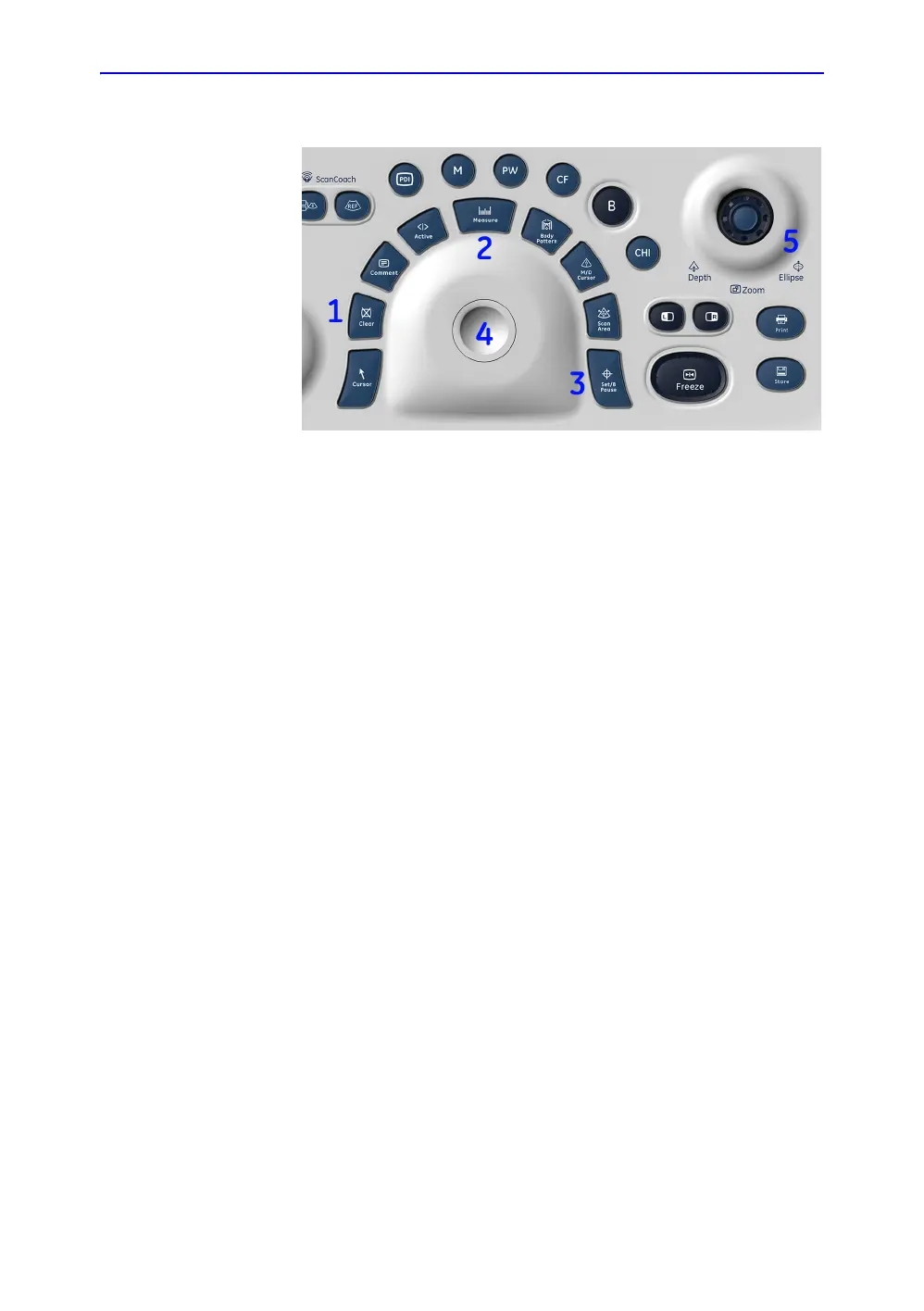

Figure 2-28. Locating Measurement Controls
1. Clear. During a measurement sequence, erases the
measuring caliper and measurement data from the display.
When not performing a measurement sequence, clears all
calipers and measurements from the display. To remove all
annotations/body markers/arrows, hold down the Clear
button.
2. Measure. Activates a measurement caliper and the
calculation package associated with the currently selected
preset.
3. Set/B Pause. Set fixes the caliper for measurements and
completes the measurement sequence.
4. Trackball. Moves the measurement calipers, selects the
measurement on the Summary Window.
5. Depth/Zoom/Ellipse. Ellipse activates the area/ellipse
measurement function. During the ellipse adjustment, use
the Trackball to increase or decrease the size of the ellipse.
Select Cursor Select to adjust the measurement calipers.
