Peripheral Connection
This section includes six subsections:
1. Back Panel Ports
2. Network Connectivity
3. Connect to a Printer
4. Dicom Setting
5. Back-up/Restore the patient information
6. Software Version

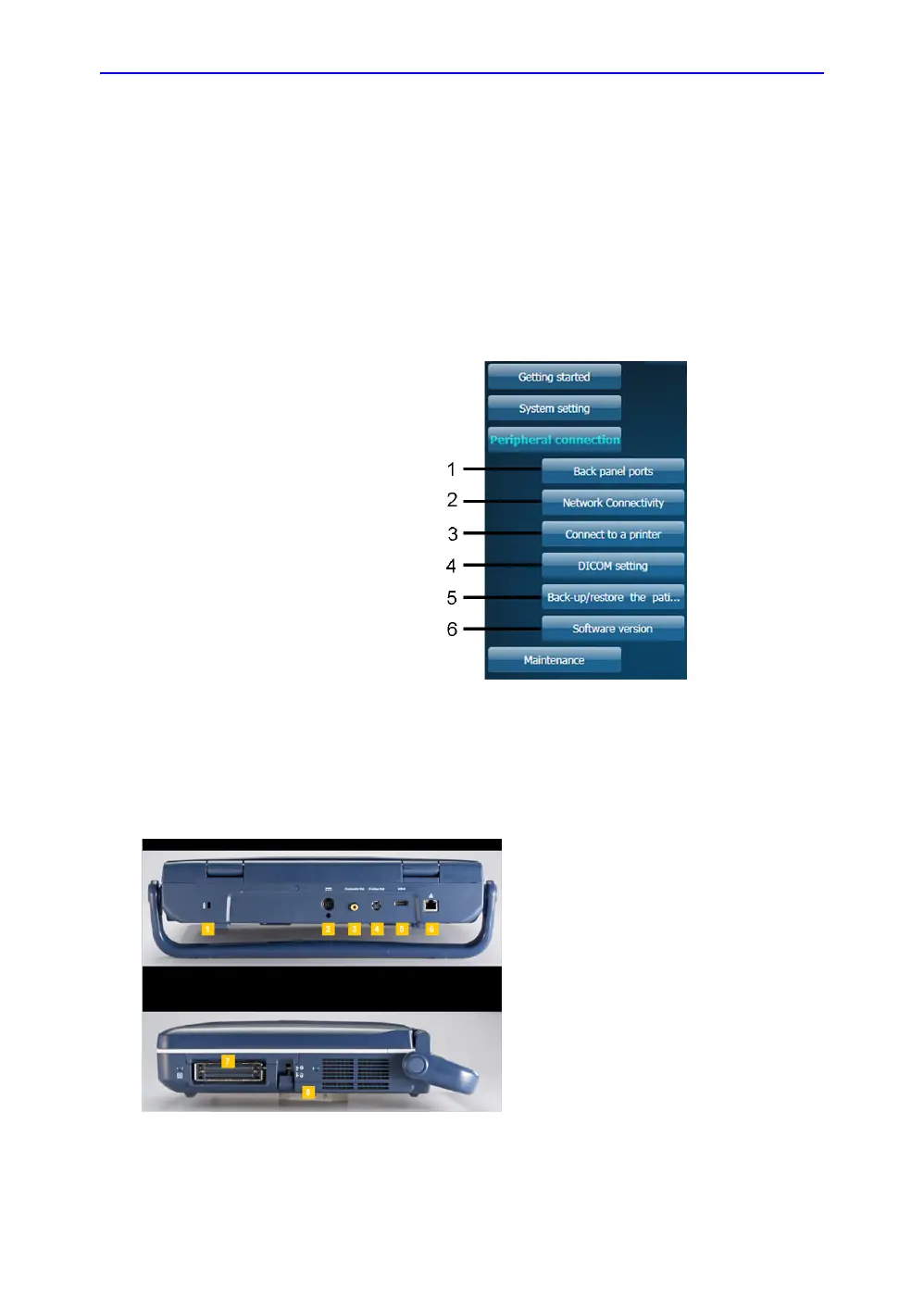

Figure 6-21. Peripheral Connection
Back Panel Ports
Figure 6-22. Back Panel Ports
1. Security Lock
2. Port for DC In (AC Adapter)
3. Composite Out Port
4. S-Video Out Port
5. HDMI Port
6. Network Port
7. Probe Connector
8. Probe Locking Mechanism
