Overview
LOGIQ V2/LOGIQ V1 – User Guide 1-37
Direction 5610736-100 Rev. 9
Monitor Display

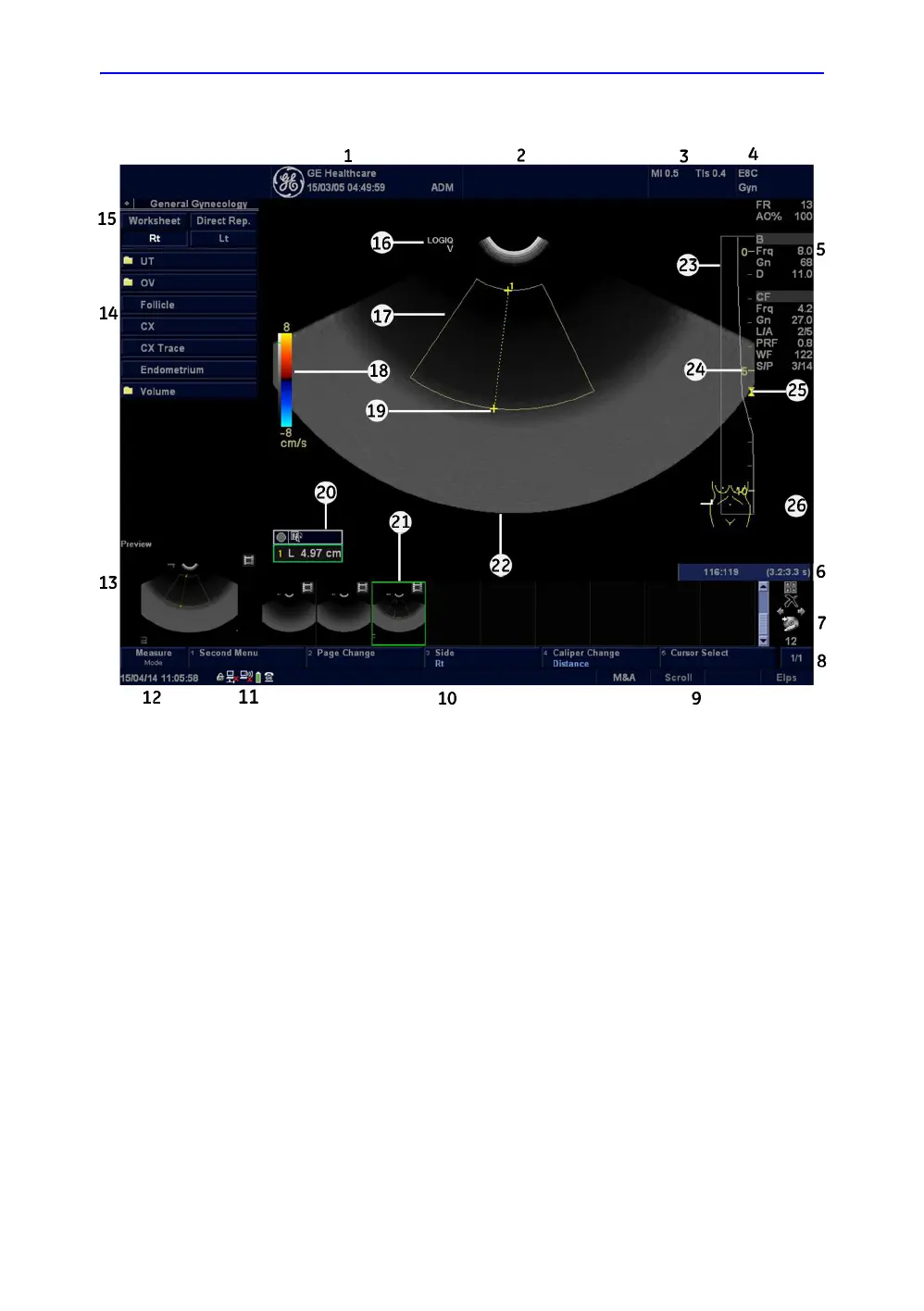

Figure 1-25. Monitor Display Tour
1. Institution/Hospital Name, Date, Time, Operator
Identification
2. Patient Name, Patient Identification
3. Power Output Readout
4. Probe Identifier. Exam Preset
5. Imaging Parameters by Mode
6. Cine Gauge
7. Image manage controls
8. Primary Menu
9. Trackball Functionality Status
10. System messages
11. Caps Lock: (lit when on), network connection
indicator (PC=connected, PC with X=not
connected), Battery Icon/Plug Icon, InSite
status, InSite controls
12. Current date and time
13. Image Preview
14. Measurement Summary Window
15. Worksheet/Direct Report
16. Probe Orientation Marker
17. Region of interest.
18. Gray/Color Bar
19. Measurement Calipers
20. Measurement Results Window
21. Image Clipboard
22. Image
23. TGC
24. Depth Scale
25. Focal Zone Indicator
26. Body Pattern
