Multi Angle Biopsy Guide Assembly (continued)
7. Push the locking mechanism towards the bracket to secure
the lock (a). Make sure the needle guide is firmly attached to
the bracket.

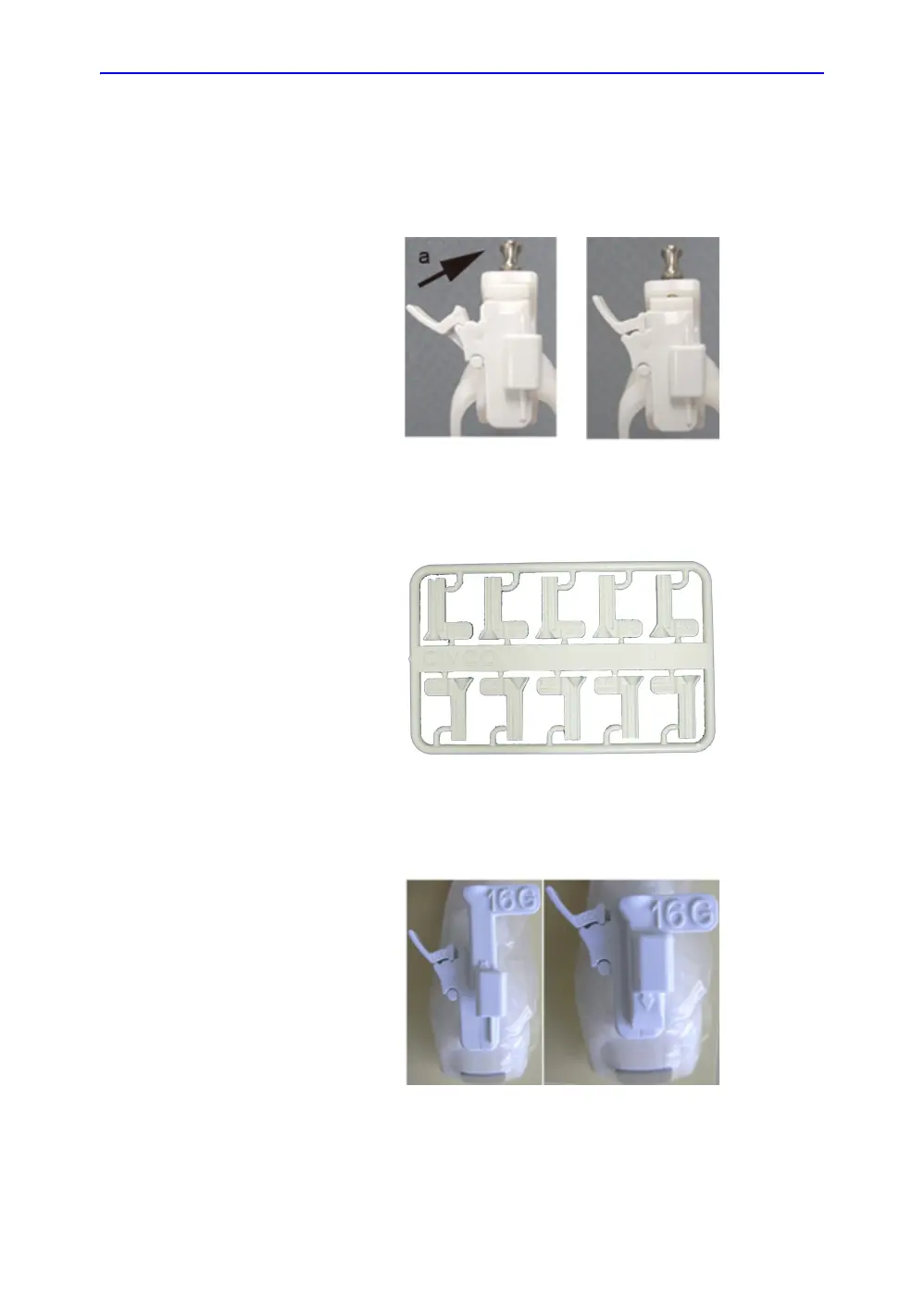

Figure 5-15. Lock the Needle guide
8. Choose the desired gauge (size) needle barrel. Twist it back
and forth to remove it from the plastic tree.
Figure 5-16. Needle Barrel
9. Place the needle barrel into the needle clip with the desired
gauge facing the needle clip and snap into place.
Figure 5-17. Needle Barrel Installation
