Getting Started
1-58 LOGIQ V2/LOGIQ V1 – User Guide
Direction 5610736-100
Rev. 9
Mounting 2-Probe Port Adapter to LOGIQ V2/LOGIQ V1 (continued)

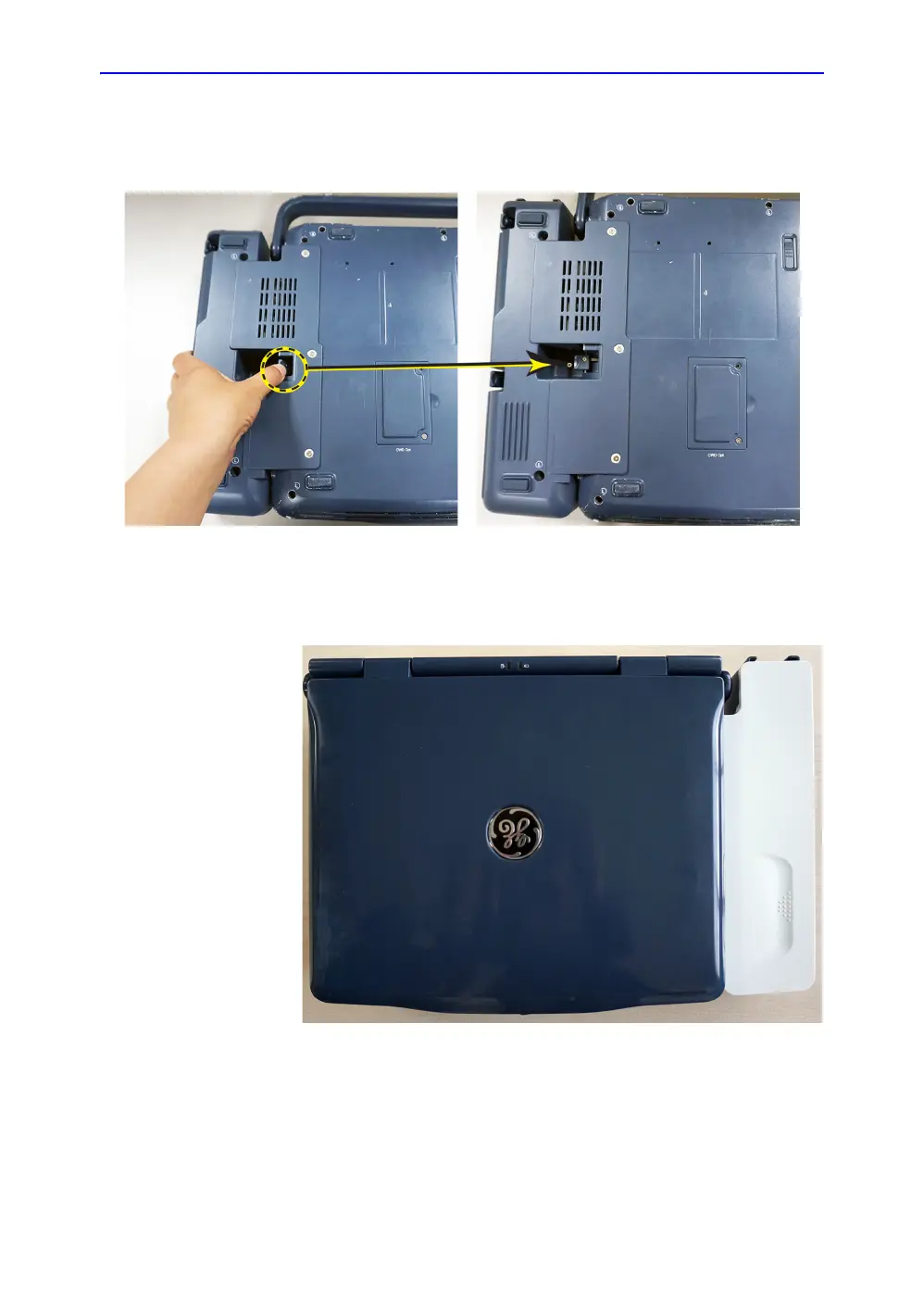

3. Flip the connector locking lever down.
Figure 1-39. 2-Probe Port Adapter connection, Step 3
4. Turn over the system with 2-Probe Port Adapter, now the
2-Probe Port Adapter is connected successfully.
Figure 1-40. 2-Probe Port Adapter connection, Step 4
To Next Page
