58 ADL300 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.9 1616 Analog inp 1X offset cnt INT16 0 -32768 +32767 ERW FVS
12.21 1666 Analog inp 2X offset cnt INT16 0 -32768 +32767 ERW FVS

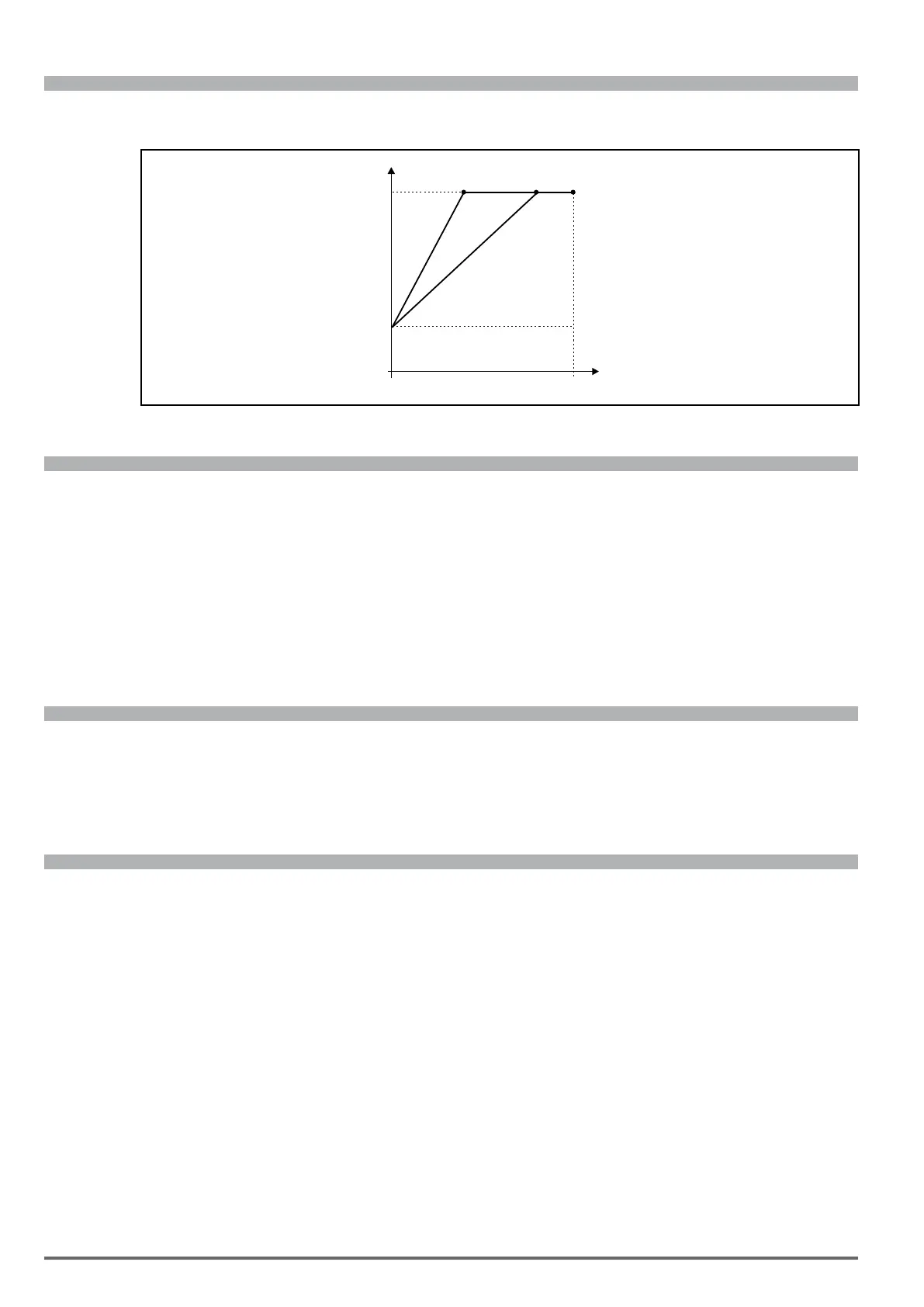

PAR 1604=2
PAR 1604=1
PAR 1616
10V
100%
100%
AnInp Drive
AnInp Terminal
0
Setting of an oset value to algebrically add to the relative analog input of the expansion card.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.10 1618 Analog inp 1X gain FLOAT 1.0 -10.0 10.0 ERW FVS
12.22 1668 Analog inp 2X gain FLOAT 1.0 -10.0 10.0 ERW FVS
This parameter contains the value of the multiplier factor to apply to the analog reference of the expansion card calculated
using the Analog inp gain tune function.
Example :
An external analog reference only reaches a maximum of 9.8V instead of 10V. 1.020 (10V : 9.8V) is entered as the Analog
inp x gain parameter.
The same result can be achieved using the Analog inp x gain tune function. This parameter can be selected from the
keypad menu. The maximum analog value available (in this case 9.8V) must be present on the terminal, with positive
polarity. Press the Enter key on the keypad to start analog reference self-tuning.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.11 1626 An inp 1X sign src LINK 16BIT 6000 0 16384 ERW FVS
12.23 1676 An inp 2X sign src LINK 16BIT 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal to be assigned to the relative digital input of the expansion card for selecting
the direction of rotation of the motor. The functions that can be associated with the digital outputs are listed in the “L_DIG-
SEL2” selection list”.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
12.12 1632 Analog input 1X dest ILINK 0 0 0 ER FVS
12.24 1682 Analog input 2X dest ILINK 0 0 0 ER FVS
The function for which the relative analog input of the expansion card has been programmed and on which it acts is dis-
played.
To Next Page
