Appendix
A.1 - ADV100 Basic Conguration
ADV100 is coded as the BASIC version (see chepter 2.3 Standard congurations) and does not implement any I/O or
encoder expansion cards.
The user may integrate any of the available options, to meet specic system requirements. These integrations can
be performed quickly and simply, by inserting the cards in the relative connectors on the regulation card (provided as
standard with the drive and not interchangeable).

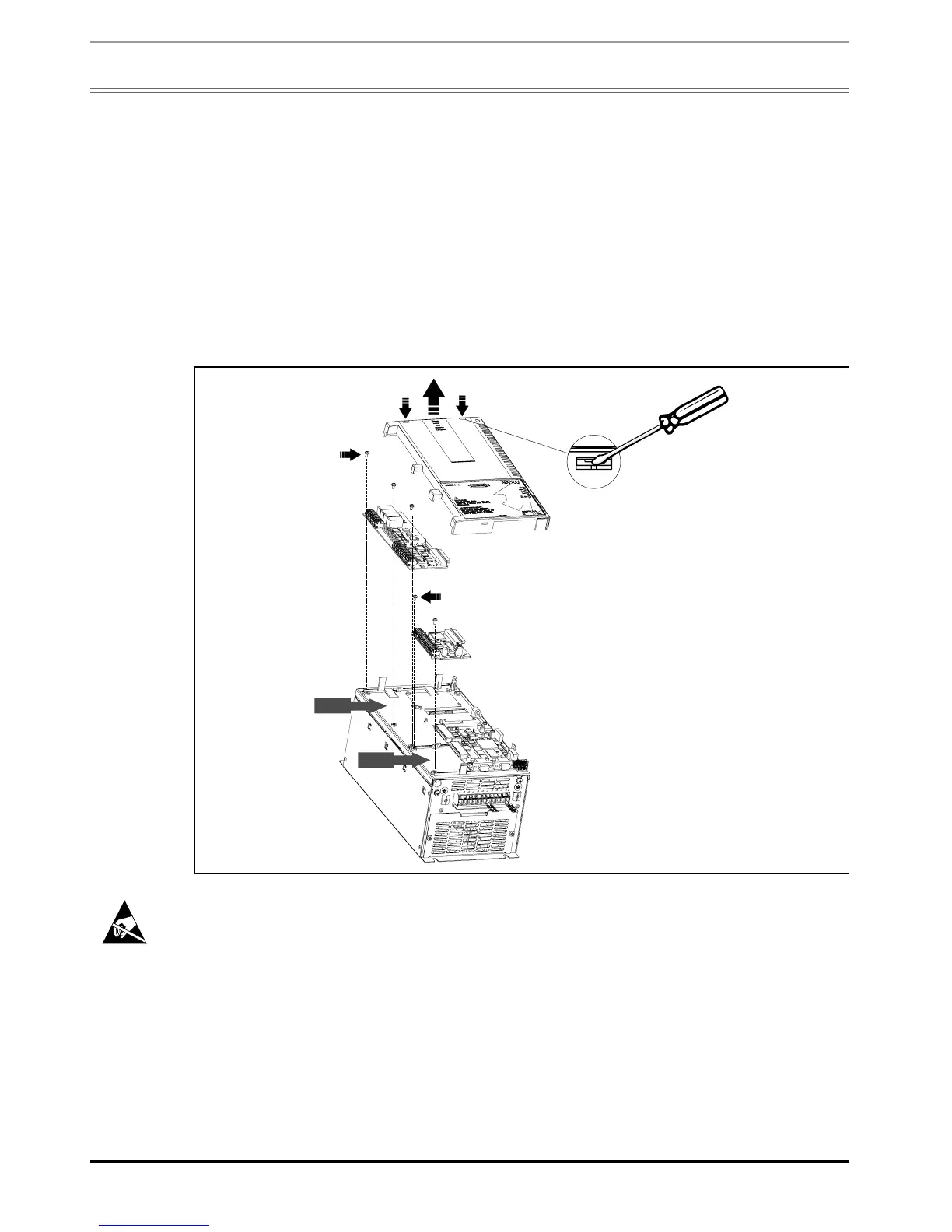

A.1.1 - Inserting expansion cards
• Slot 1: dedicated to I/O cards (EXP-IO-...-ADL)
• Slot 2: dedicated to encoder expansion cards (EXP-DE-...-ADL)
3 (x3)
1
2
1
3 (x2)
Slot 1
Slot 2
1. Remove the top cover: insert a screwdriver into the holes at the top of the plastic card cover and push gently
2. Raise the cover as shown in the gure.
3. To replace an expansion card, loosen the screws (A) and remove the card to be replaced.
4. Insert the new card in the dedicated slot and tighten the screws (A) supplied with the card in the seats (C).
