8 ADV100 • Quick installation guide - Specifications and connection
2 - Introduction to the product
The new inverter series “SIEIDrive ADV100” represents an innovative concept in drive technology, as a result of the
constant technological research and of the experience that the Gefran Group has acquired keeping a constant pres-
ence aside that of the major sector players.
The new range has been engineered and developed to satisfy the real needs of System Integrators and OEM’s in order
to provide them the best innovations and economical competitiveness in the international markets.
Based on full mechanical modularity and on a powerful, intuitive and “fully open” programming platform, ADV100 offers
absolute integration exibility with high-end performance in any system architectures of the most advanced automation
environments
• Modularity
An innovative concept of integrated technology that offers full modularity. Mountable side by side and with accessories specically
dedicated to system solutions, ADV100 has been engineered to make installation easy for any operator, both in existing systems and
in specic machine solutions, always offering a real reduction of required space in the cabinet and the best manageability.
• Integrated Quality
ADV100 integrates (as standard on 4300 and higher sizes) the fundamental devices for an absolute quality level, such as the DC
choke that ensures maximum reliability in any conditions of working and the input lter that renders the drive in compliance with the
EMC normative EN61800-3.
• User-friendly.
Designed to ensure simple, fast management of the product in all installation and assembly scenarios, with easy access to extractible
terminal strips to make each operation quick and immediate.
• Smart Connections
Dedicated accessories and fully removable terminals, ensure simple and fast installation and start-up in compliance with the EMC
normative.
• Feedback
ADV120 models incorporate an encoder card for managing digital encoders.
• Serial Line
Integrated standard RS232 serial line with Modbus RTU protocol, for peer-to-peer connections.
• Cables shield
OMEGA clamp to grounding 360° of shielded cables. (optional).
• SD card
With ADV120-C models you can export and import drive conguration using the SD memory card (SD-ADL).

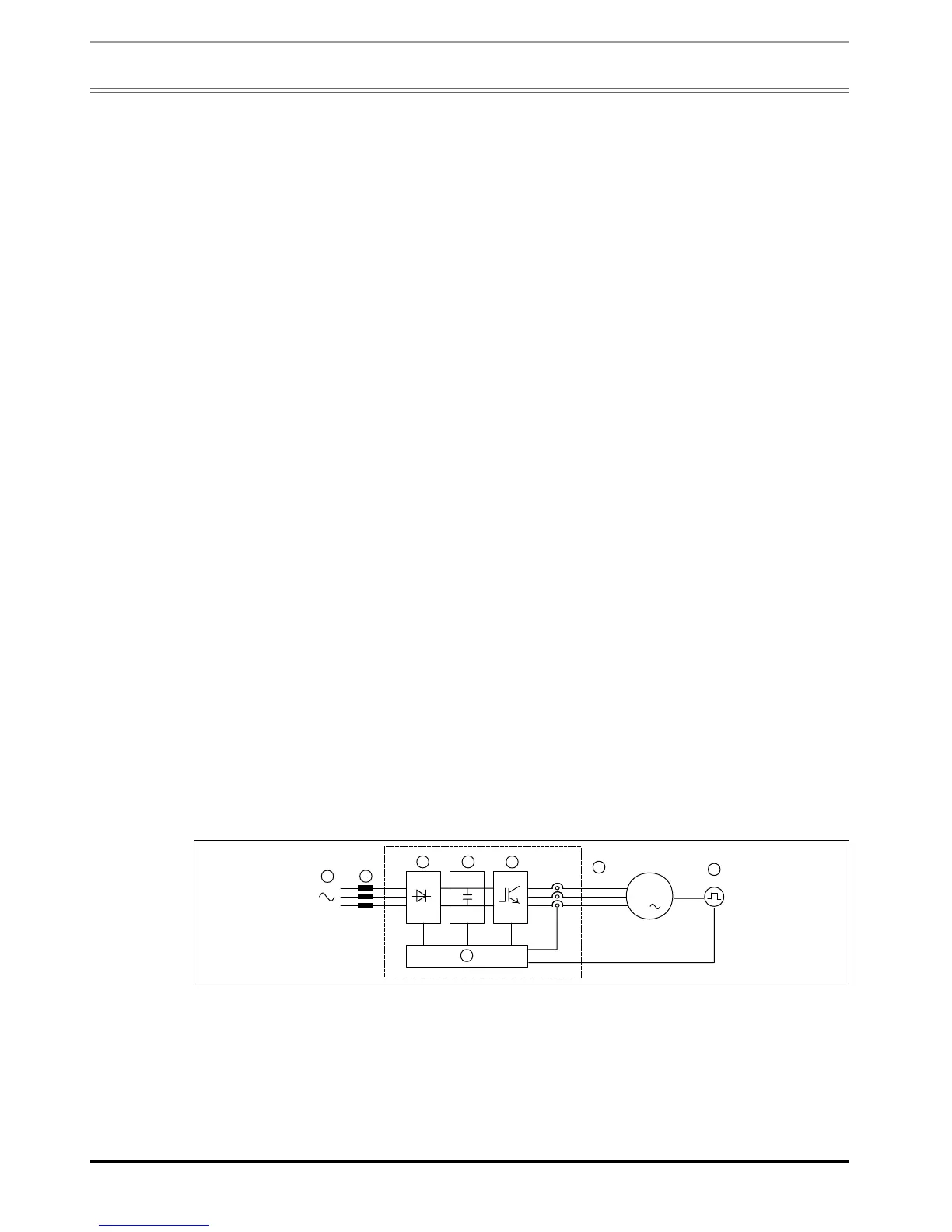

2.1 Identication of components
The inverter converts the constant frequency and voltage of an existing three-phase network into DC voltage, from
which it obtains a new three-phase network with variable voltage and frequency. With this variable three-phase network
the speed of three-phase asynchronous and synchronous motors can be controlled continuously.
8
6
5
4
3
2
1
7
M
3
1. Mains supply voltage
2. Mains choke (
see chapter 5.2)
3. Three-phase rectier bridge
Converts AC voltage into DC voltage via a three-phase full wave bridge.
4. Intermediate circuit
With pre-load resistor and levelling capacitors DC voltage (Udc) =√2 x mains voltage (Uln)
5. IGBT inverter bridge
Converts DC voltage into three-phase AC voltage with variable amplitude and frequency
