44 ADV100 • Quick installation guide - Specifications and connection

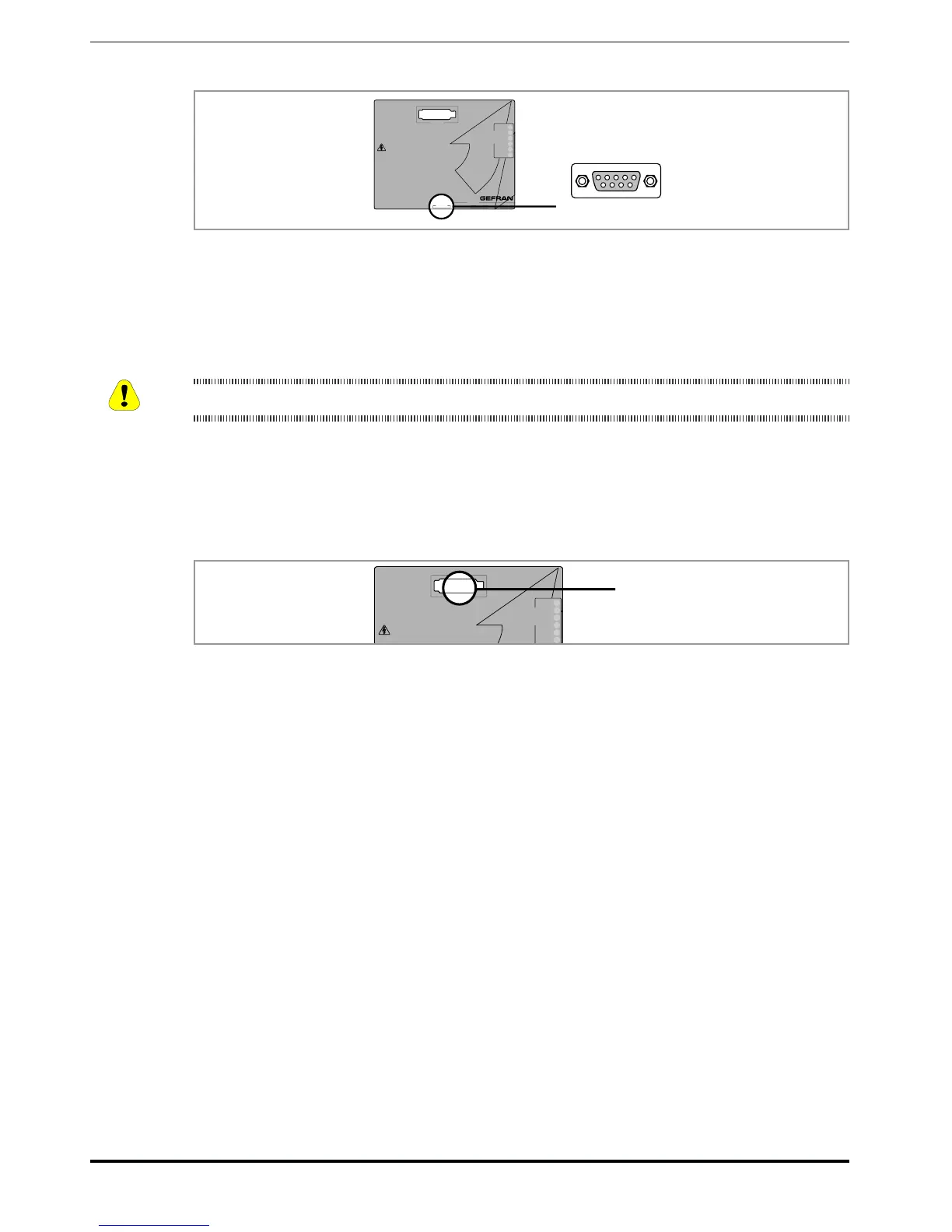

7.7 Keypad interface (keypad connector)
SIEIDrive
ADV100
SD Card
WARNING:
Risk of Electric Shock.
Capacitive voltages above 50V may
remain for 5 minutes after power is
disconnected.
AVERTISSEMENT:
Risque de décharge électrique.
Des tensions supérieures à 50V
peuvent subsister aux bornes des
condensateurs durant 5 minutes
après la coupure de l’alimentation.
PC
Connectors
CAN
Status LEDs
EN
CAN Error
Alarm
I Lim
CAN Run
Run
Keypad (XS1)connector
Keypad
1
5
6 9
Several devices can be connected to the multifunction keypad connector (9-pin D-SUB receptacle connector XS1) and
are automatically recognised and managed.
Optional KB-ADV100 keypad (default connection)
- The keypad is supplied with a 40 cm-long cable,
for longer distances, a 1:1 non-crossover cable must be used (9
shielded cables, e.g. code 8S8F59, length 5 m).
- Very long cables (max. 15 m) must be of good quality with low voltage loss (max. 0.3 ohm/m).
The connections have no galvanic isolation!
7.8 Saving data on the Memory Card
With the ADV120-C drive, data can be saved on a normal Secure Digital-type memory card. In order to use the
memory card, the specic adapter (SD-ADL) must be connected by inserting it into the dedicated slot on the front of the
drive. For further information, see chapter 8.9.
SIEIDrive
ADV100
WARNING:
Status LEDs
EN
CAN Error
Alarm
I Lim
CAN Run
Run
SD Card
SD Card
Caution
To Next Page
