ADV100 • Quick installation guide - Specifications and connection 37

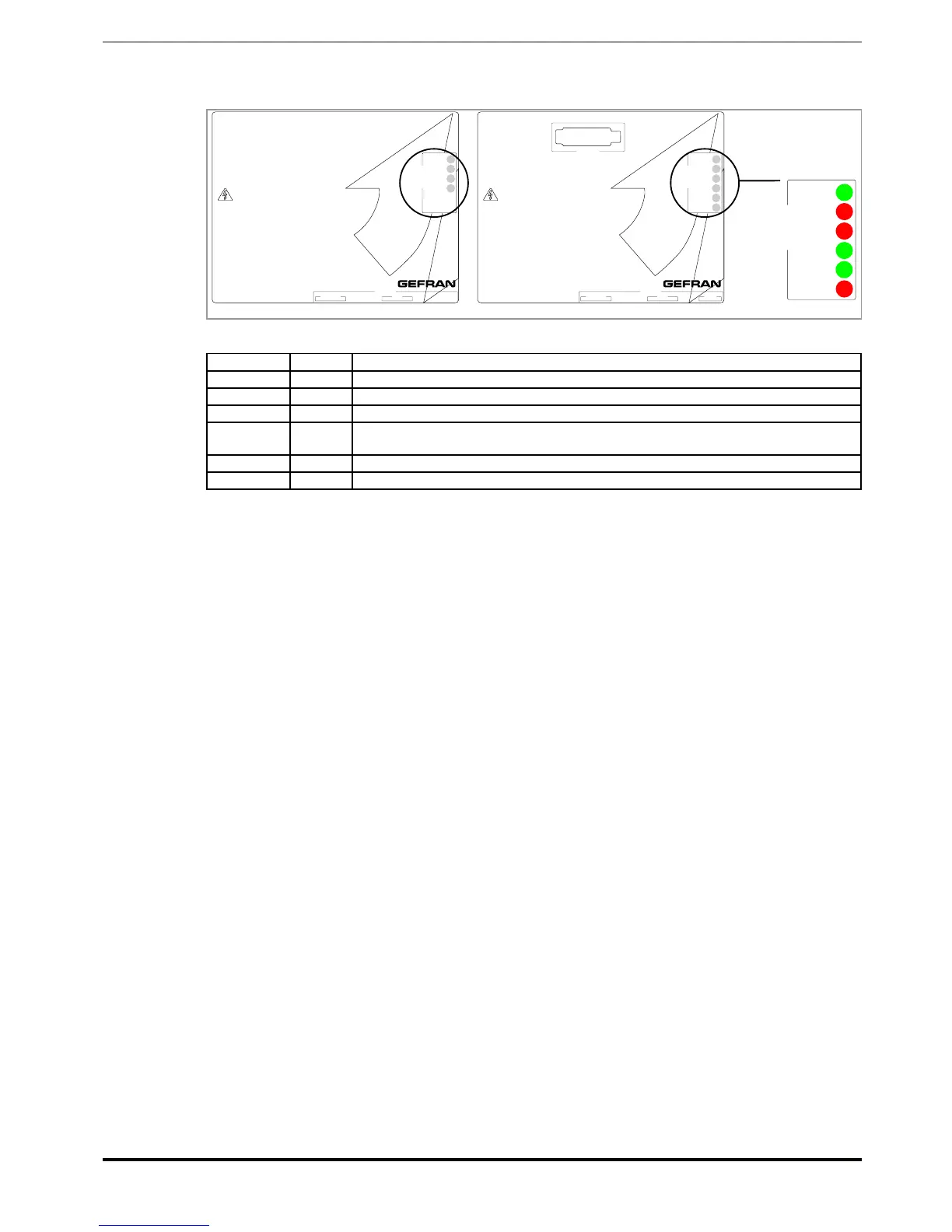

7.3 LEDs
Up to 6 LEDs indicating the drive status are located on the front of the ADV100 drive.
SIEIDrive
ADV100
SD Card
WARNING:
Risk of Electric Shock.
Capacitive voltages above 50V may
remain for 5 minutes after power is
disconnected.
AVERTISSEMENT:
Risque de décharge électrique.
Des tensions supérieures à 50V
peuvent subsister aux bornes des
condensateurs durant 5 minutes
après la coupure de l’alimentation.
Keypad PC CAN
Status LEDs
Connectors
EN
CAN Error
Alarm
I Lim
CAN Run
Run
Status LEDs
EN
CAN Error
Alarm
I Lim
CAN Run
Run
SIEIDrive
ADV100
WARNING:
Risk of Electric Shock.
Capacitive voltages above 50V may
remain for 5 minutes after power is
disconnected.
AVERTISSEMENT:
Risque de décharge électrique.
Des tensions supérieures à 50V
peuvent subsister aux bornes des
condensateurs durant 5 minutes
après la coupure de l’alimentation.
Keypad PC
Connectors
Status LEDs
EN
Alarm
I Lim
Run
LEDs Colour Meaning of LEDs
EN Green Lit during IGBT modulation
Alarm Red Lit when the drive signals an alarm condition
ILim Red Lit when the drive is operating at its current limit
Run Green Flashes (freq. 1 sec) if no errors or faults have occurred.
If on or off, indicates an error condition (software hangup)
CAN Run Green Lit when the CANopen interface is in the operational condition
CAN Error Red Lit when the CANopen interface is in the alarm condition
