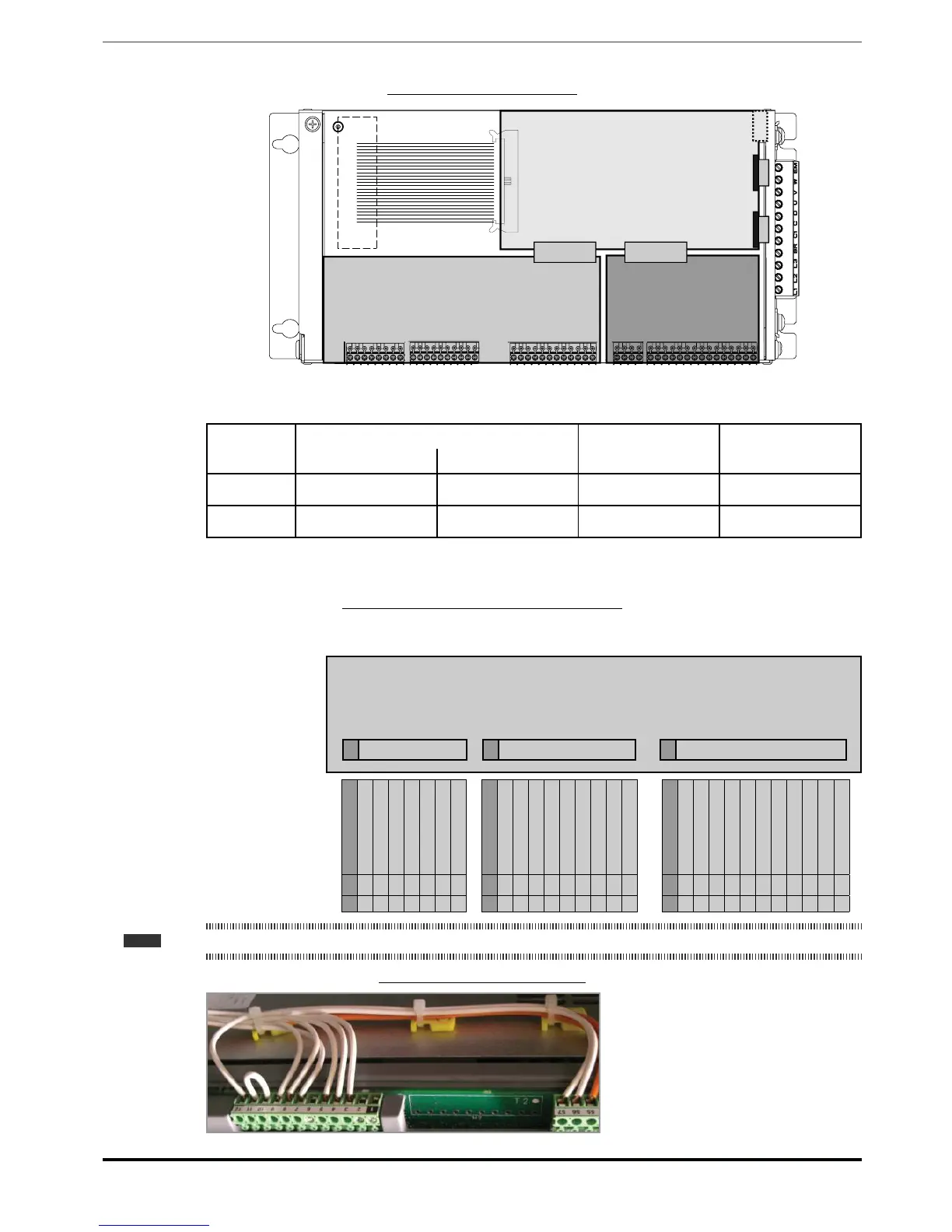

ADV100 • Quick installation guide - Specifications and connection 35
7.2 Regulation section
Figure 7.2.1: Identication of cards and terminals
EXP-I/O-D6A4R2-F-ADL
EXP-DE-I1-ADL
R-ADL
T3 T2
XE
XER
XS1 XS2 XC
Keypad
(RS485/422)
PC
(RS232)
CAN
(RC-ADL only)
XE
(RC-ADL)
To P-ADV
T1
XO
XP
7.2.1 Cable cross-sections
Terminals
Maximum cable cross-section Recommended stripping Tightening torque (min)
(mm
2
) (AWG) (mm) (Nm)
T3, T2, T1
0,2 ... 2,5 (1 cable)
0,2 ... 0,75 (2 cables)
26 ... 12
26 ... 19
5 0,4
XER, XE
0,2 ... 1,5 (1 cable)
0,2 ... 0,5 (2 cables)
26 ... 16
26 ... 19
5 0,25
7.2.2 Connection of I/O card (EXP-IO-D6A4R2-F-ADL)
Figure 7.2.2: EXP-IO-D6A4R2-F-ADL card terminal strip and connection
1 enable input (Enable) + 6 digital inputs (DI) + 2 analog inputs (AI) + 2 analog outputs (AO) + 2 relay outputs (RO).
The terminals of this card are not extractable.
EXP-IO-D6A4R2-F-ADL
T3
T2
T1
Commands
Associated parameter
1064,Driveready
1062,DriveOK
Associated parameter
Commands
Associated parameter
4500,Faultresetsrc
842,Multirefsel1src
840,Multirefsel0src
1044,FRreversesrc
1042,FRforwardsrc
RO
2O
RO
2C
RO
1O
RO
1C
AI
2N
AI
2P
AI
1N
AI
1P
AO
2N
AO
2P
AO
1N
AO
1P
-10
OUT
+10
OUT
DI 6 DI 5 DI 4 DI 3 DI 2 DI 1
EN
HW
DI
CM
OV
out
24
out
54 55 56 57 40 41 42 43 44 45 46 47 48 49 3 4 5 6 7 8 9 10 11 12
Note! For electrical properties of analog, digital and relay inputs/outputs see Appendix.
Figura 7.2.3: Connection of shielding (recommended)
