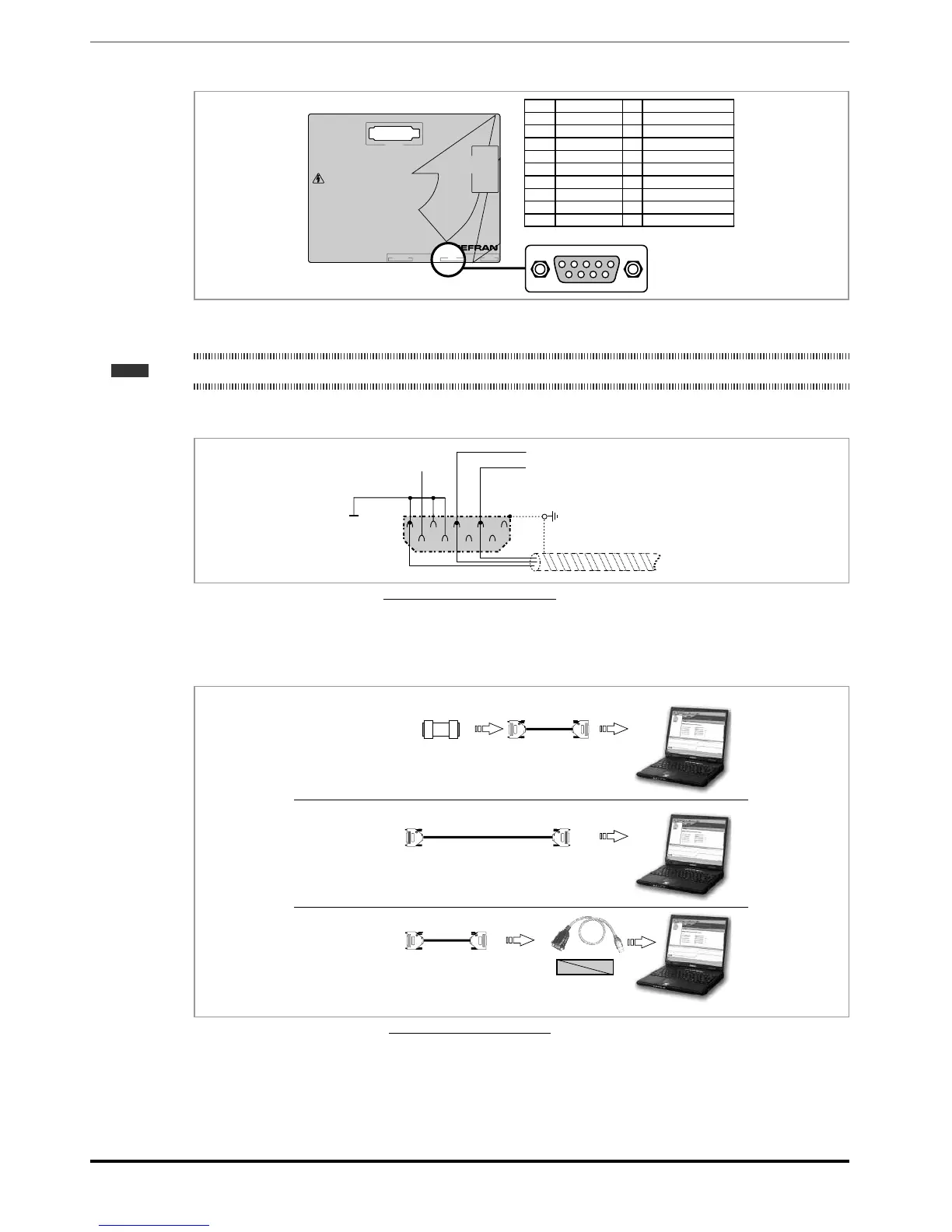

42 ADV100 • Quick installation guide - Specifications and connection
7.5 Serial interface (PC connector)
SIEIDrive
ADV100
SD Card
WARNING:
Risk of Electric Shock.
Capacitive voltages above 50V may
remain for 5 minutes after power is
disconnected.
AVERTISSEMENT:
Risque de décharge électrique.
Des tensions supérieures à 50V
peuvent subsister aux bornes des
condensateurs durant 5 minutes
après la coupure de l’alimentation.
Keypad CAN
Status LEDs
EN
CAN Error
Alarm
I Lim
CAN Run
Run
PC
Connectors
Funzione / Function I/O Interfaccia elettr./ Elect. Interface
PIN 1
-
PIN 2
TxD RS232
PIN 3
RxD I
RS232
PIN 4
PIN 5
0V (Ground)
Alimentazione / Supply
PIN 6
PIN 7
O
PIN 8
PIN 9
Alimentazione / Supply
I = Ingresso / Input
O = Uscita / Output
-
-
-
-
+5V
1
5
6 9
The ADV100 drive is provided with a port as standard (9-pin D-SUB receptacle connector) for connection of the RS232
serial line used for drive-PC point-to-point communication (with the GF-eXpress conguration software).
Note! The port is not galvanically isolated. The PC-OPT-ADL option must be used If galvanic separation is required.
7.5.1 Drive/RS232 port point-to-point connection
12
3
45
9 8 7 6
RxD
TxD
PE
+5 V
XS2
RS232
Figure 7.5.1: Serial connection (not isolated)
The serial connection must consist of a twin pair with two symmetrical conductors, spiral wound with a common
shield, plus the ground connection cable, connected as shown in the gure (a 3-wire RS232 cable, not cross-over, is
recommended). The maximum transmission speed is 38.4 kBaud.
For connection of the RS232 serial line to the PC, see the gure below.
RS232
USB
USB RS232 converter
(S5A20)
PC con porta RS232
PC con porta USB
RS232
(PC)
RS232
(PC)
Cavo schermato con connettori,
5 mt (8S8F59)
Cavo schermato con
connettori,
5 mt (8S8F59)
PC con porta RS232
RS232
(PC)
Fig. A
Fig. B
Fig. C
Cavo schermato con
connettori,
5 mt (8S8F59)
Opzione
PC-OPT-ADL
(S573L)
Figure 7.5.2: RS232 connection to the PC
Connection to a PC with RS232 port and PC-OPT-ADL option (isolated)
The following are required for connection:
optional PC-OPT-ADL card (for galvanic isolation), code S573L
a shielded cable (code 8S8F59) for connection to the RS232 PC port of the drive to the RS232 connector of the
PC, see gure 7.5.1-A.
