18 ADV100 • Quick installation guide - Specifications and connection
4.8 Weights and dimensions
159.2 (6.27”)
131.5 (5.18”)
115 (4.53”)
13.1 (.52”)
158.67 (6.25”)
27 (1.06”)
331.1 (13.04”)
367.6 (14.47”)
115 (4.53”)
135 (5.31”)
318.5 (12.54”)
mm (inches)
ADV100
Run

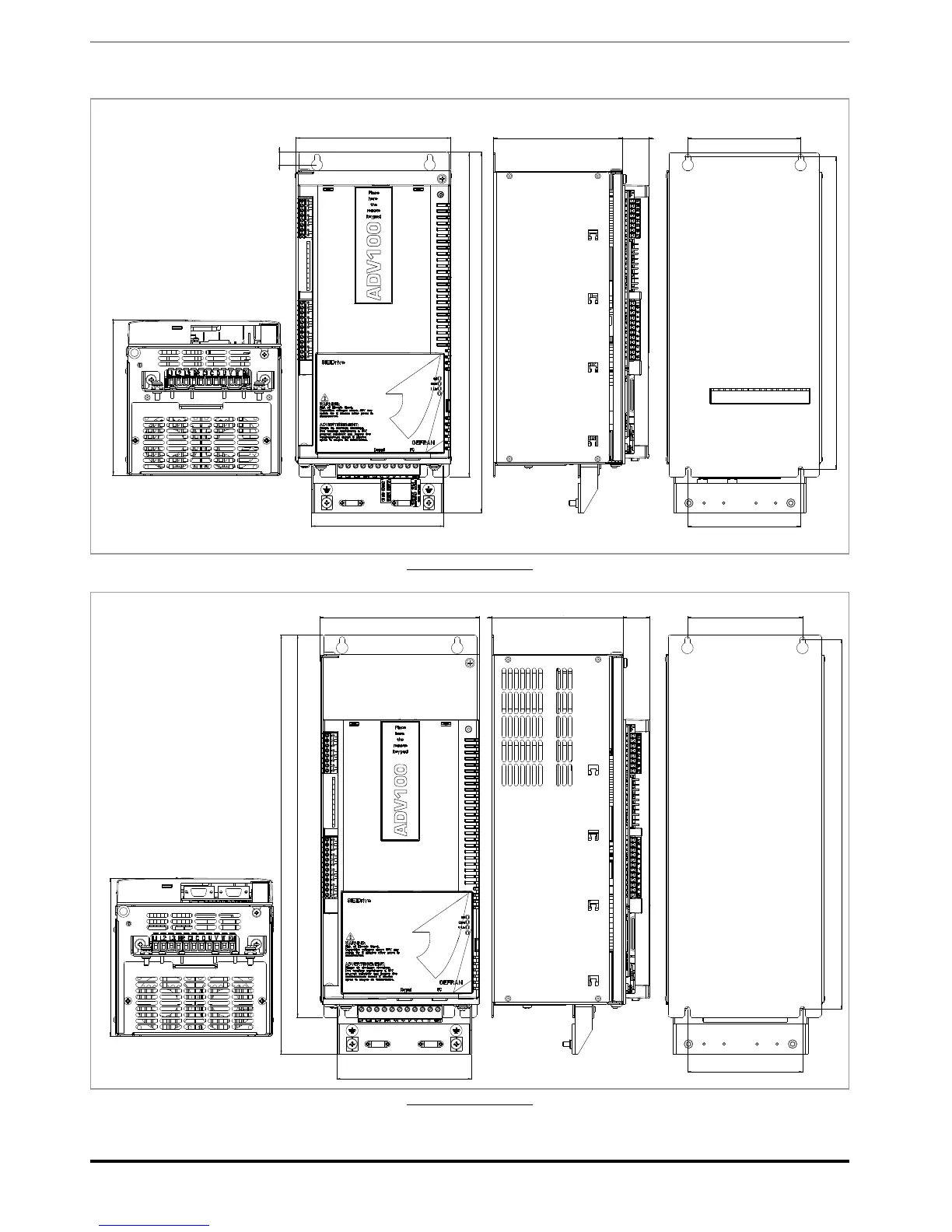

Figure 4.8.1: Size 1 dimensions
115 (4.53”)
115 (4.53”)
369.5 (14.55”)
131.2 (5.17”)
27 (1.06”)
135
(5.31”)
159.2 (6.27”)
418.8 (16.49”)
382.05 (15.04”)
158.67 (6.25”)
mm (inches)
ADV100
Run
Figure 4.8.2: Size 2 dimensions
