ADV100 • Quick installation guide - Specifications and connection 19
13
178 (7.01”)
227.8 (8.97”)
151.2 (5.95”) 27 (1.06”) 168 (6.61”)
164 (6.46”)
165 (6.5”)
374.5 (14.74”)
387 (15.24”)
448.4 (17.65”)
mm (inches)

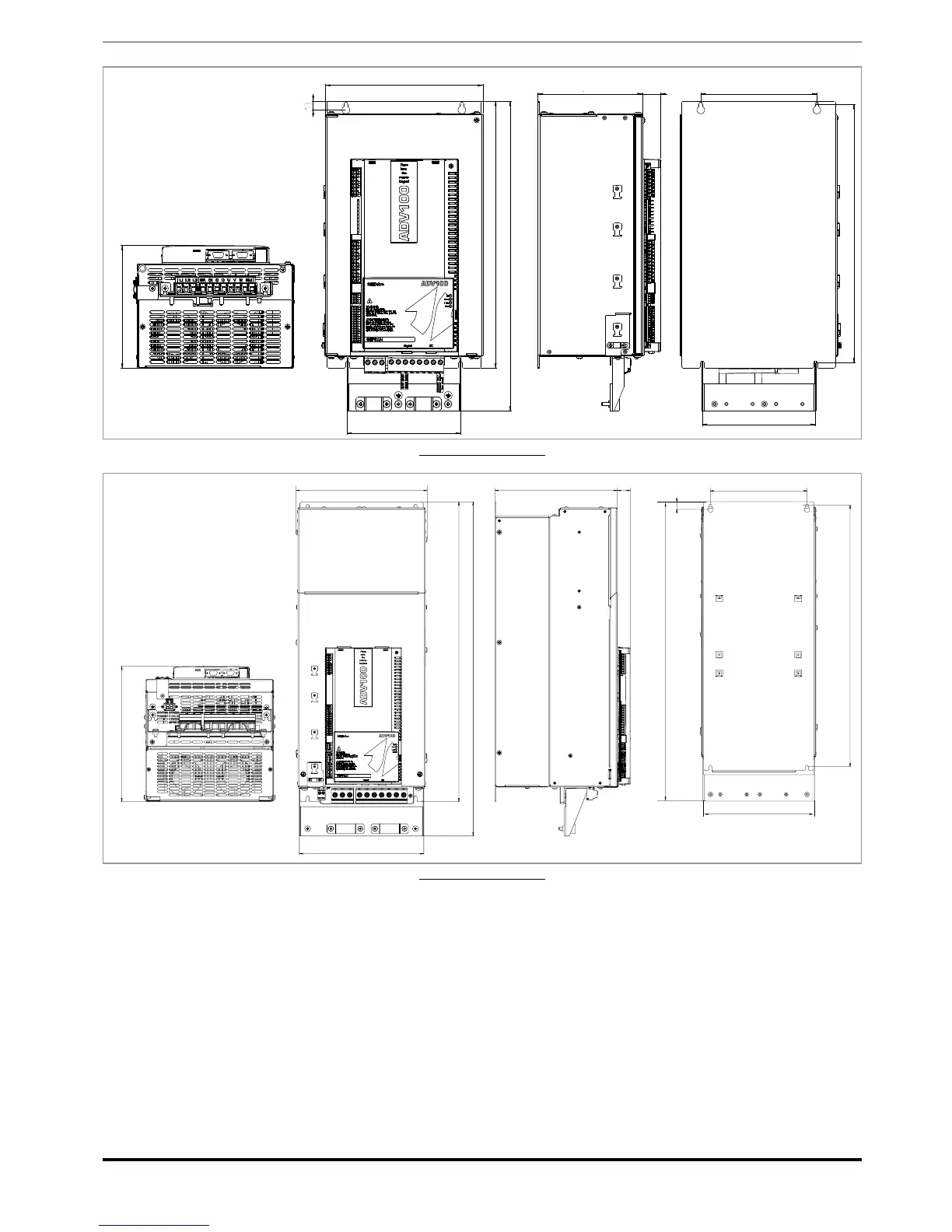

Figure 4.8.3: Size 3 dimensions
682 (26.85”)
612 (24.09”)
276 (10.87”)
254 (10”)
268 (10.55”) 250 (9.84”) 27 (1.06”)
594.9 (23.42”)
220 (8.66”)
17.6 (0.69”)
254 (10”)
682 (26.85”)
mm (inches)
Figure 4.8.4: Size 4 dimensions
