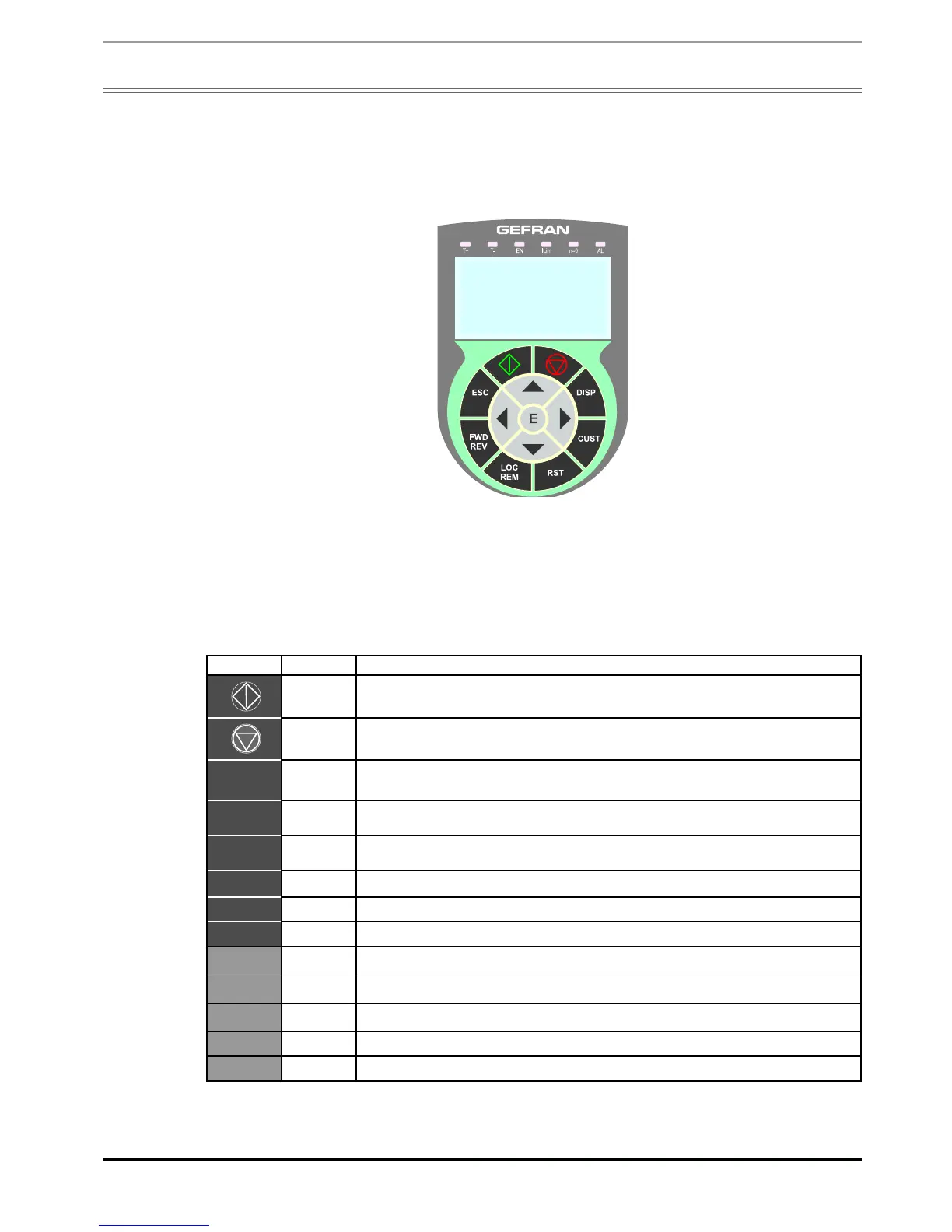

8. Use of the keypad
This chapter describes the optional KB-ADV100 keypad and methods of use for displaying and programming inverter
parameters.
8.1 Description
→
Drive status indicator LEDs
←
5-line x 21 character alphanumerical LCD display
→
Membrane keypad
The programming keypad is used to display the status and diagnostics parameters during operation. It has a strip of
magnetic material on the back so that it can be attached to the front of the drive or other metal surface (e.g. door of the
electrical panel). The keypad can be used remotely from distances of up to 15 m. A 70 cm-long connection cable is
supplied as standard. Up to 5 sets of parameters can be saved using the KB-ADV100 keypad and sent to other drives.
8.1.1 Membrane keypad
This section describes the keys on the membrane keypad and their functions
Symbol Reference Description
Start Starts the motor
Stop Stops the motor
ESC
Escape
Returns to the higher level menu or submenu. Exits a parameter, a list of parameters, the list of the last 10 parameters and the
FIND function.
Can be used to exit a message that requires use of this.
FWD
REV
Forward/
Reverse
Returns to the higher level menu or submenu.
LOC
REM
Local/Remote Changes the method of use from local to remote and vice versa.
Is active only if the drive is not enabled.
RST
Reset Resets alarms, only if the causes have been eliminated.
CUST
Custom
Displays the last 10 parameters that have been modified. To exit these functions, press the  key.
DISP
Display Displays a list of drive functioning parameters.
E
Enter
Enters the submenu or selected parameter, or selects an operation. It is used when modifying parameters to confirm the new
value that has been set.

Up
Moves the selection up in a menu or list of parameters.
During modification of a parameter, increases the value of the digit under the cursor.

Down
Moves the selection down in a menu or list of parameters.
During modification of a parameter, decreases the value of the digit under the cursor.

Left Returns to the higher level menu. During modification of a parameter, moves the cursor to the left.

Right Accesses the submenu or parameter selected. During modification of a parameter, moves the cursor to the right.
