34 ADV100 • Quick installation guide - Specifications and connection

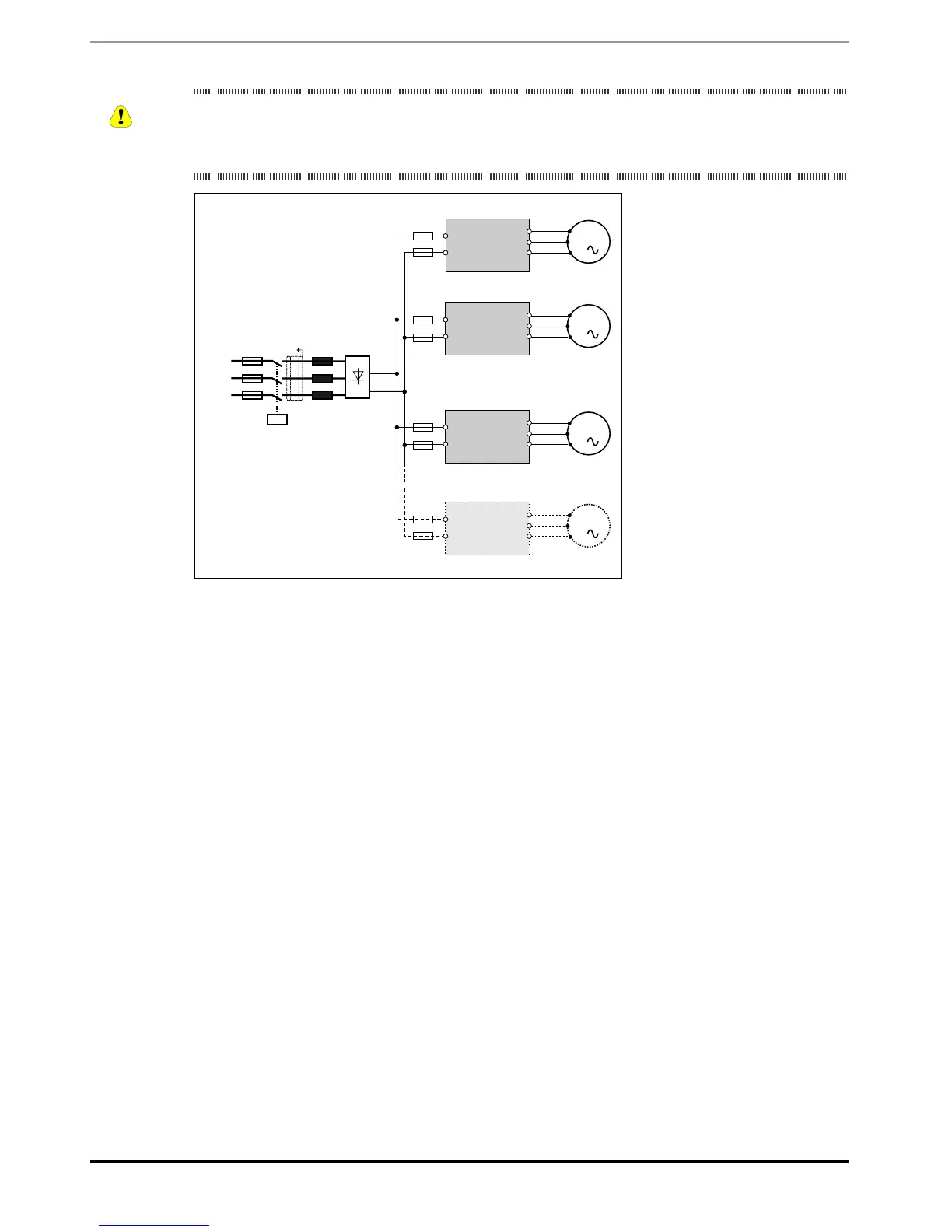

7.1.11 DC connection
In the case of DC power supply, insertion of an AC mains inductance on the power supply input of the power supply
unit is compulsory (for the type of inductance, consult the manual of the power supply unit).
Regenerative converters must not be used to supply DC to the ADV100 drive ≥ 4300 sizes, as this could damage
the integrated EMI lter.
M1
3
M2
3
U
V
W
C
D
ADV100 (1)
U
V
W
C
D
ADV100 (2)
M..
3
U
V
W
C
D
ADV100 (..)
K1M
L1
L2
L3
F1 (*)
( 400 V / 460 50/60 Hz)
AC
3ph - V
AC
,
SM32 or DC
Power supply (*)
L1 (*)
F12
F22
F..2
M3
3
U
V
W
C
D
ADV100 (3)
F32
(*) Refer to SM32 or DC Power supply manual.
(**) Sizes 1..3: External DC power supply with pre-load
Caution
