ADV100 • Quick installation guide - Specifications and connection 31
7.1.5 Internal EMC lter
ADV100 series inverters from 4300 size and higher are equipped with an internal EMI lter able to guarantee the per-
formance levels required by EN 61800-3 standard (according to 2nd environment, category C3) with a maximum of 20
meters of shielded motor cable (up to 30 metres for size 5 and above).
Taglia
EN 61800-3 :
Category / Environment / Motor cable length
Switching frequency
4300 ... 4450 C3/2°/20m Default
5550 ... 5900 C3/2°/30m Default
NB ! For additional requirements, use the optional filters described in chapter 5.3 External EMC filter.

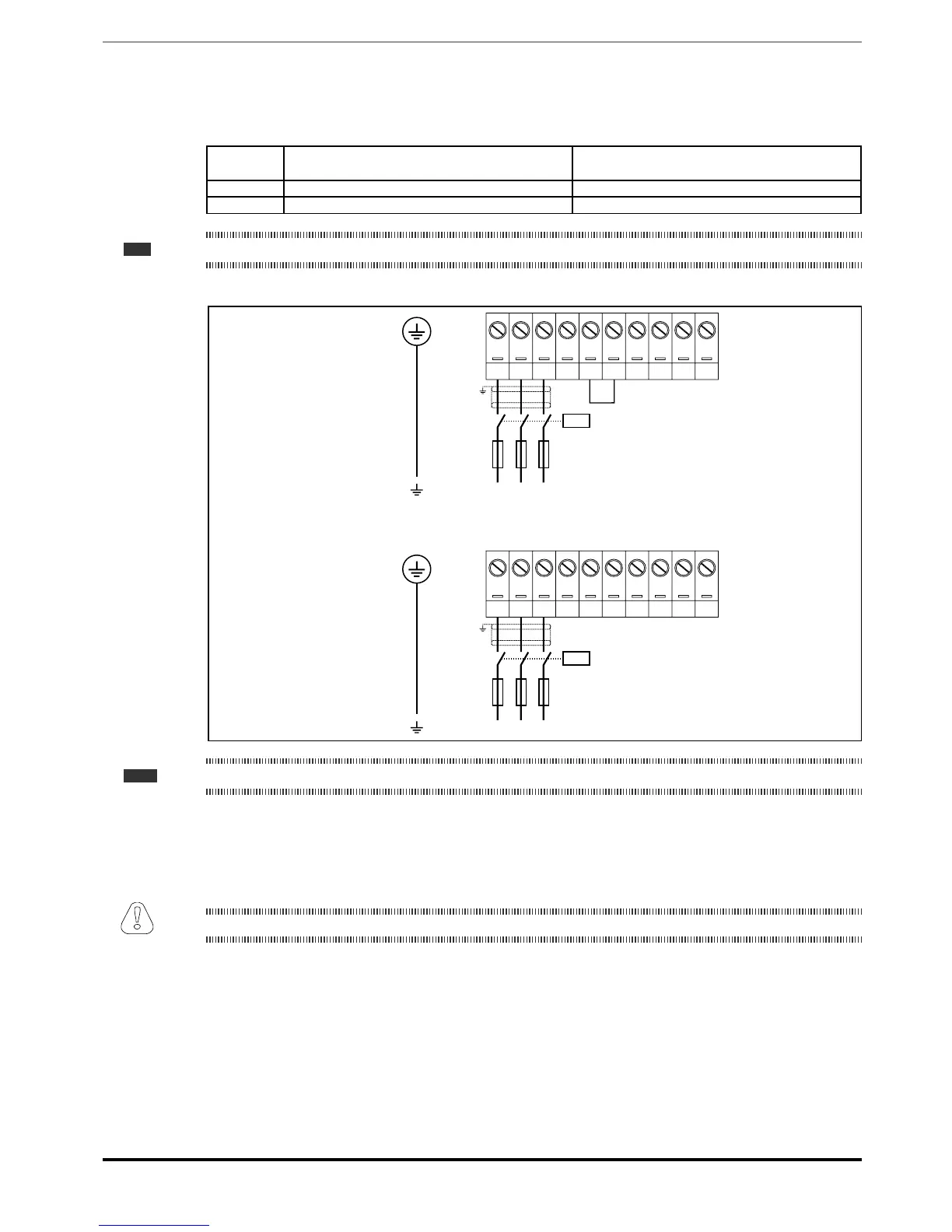

7.1.6 Power line connection
L1 L2 L3 BR C1 C D U V W
K1M
L1 L2 L3
F1
( 0 V / 400 50/60 Hz)
AC3ph - 23 V / 460-480 VAC AC,
L1 L2 L3 BR1 C D U V W
K1M
L1 L2 L3
F1
( 0 V / 400 50/60 Hz)
AC3ph - 23 V / 460-480 VAC AC,
BR2
1040 - 3220
≥ 4300
PE1
PE1
Note! Recommended combination F1 fuses: see paragraph 5.1.1.
7.1.7 Connection of AC and DC chokes (optional)
The drive can use both a three-phase choke on the AC power line and, for 4 to 22 kW drives only, a DC choke between
terminals C1 and C. Refer to
chapter 5.2 for the recommended connections.
If no DC choke is used on 4 to 22 kW drives, terminals C1 and C must be bridged.
If no DC choke is used, terminals C1 and C must be bridged.
Attention
