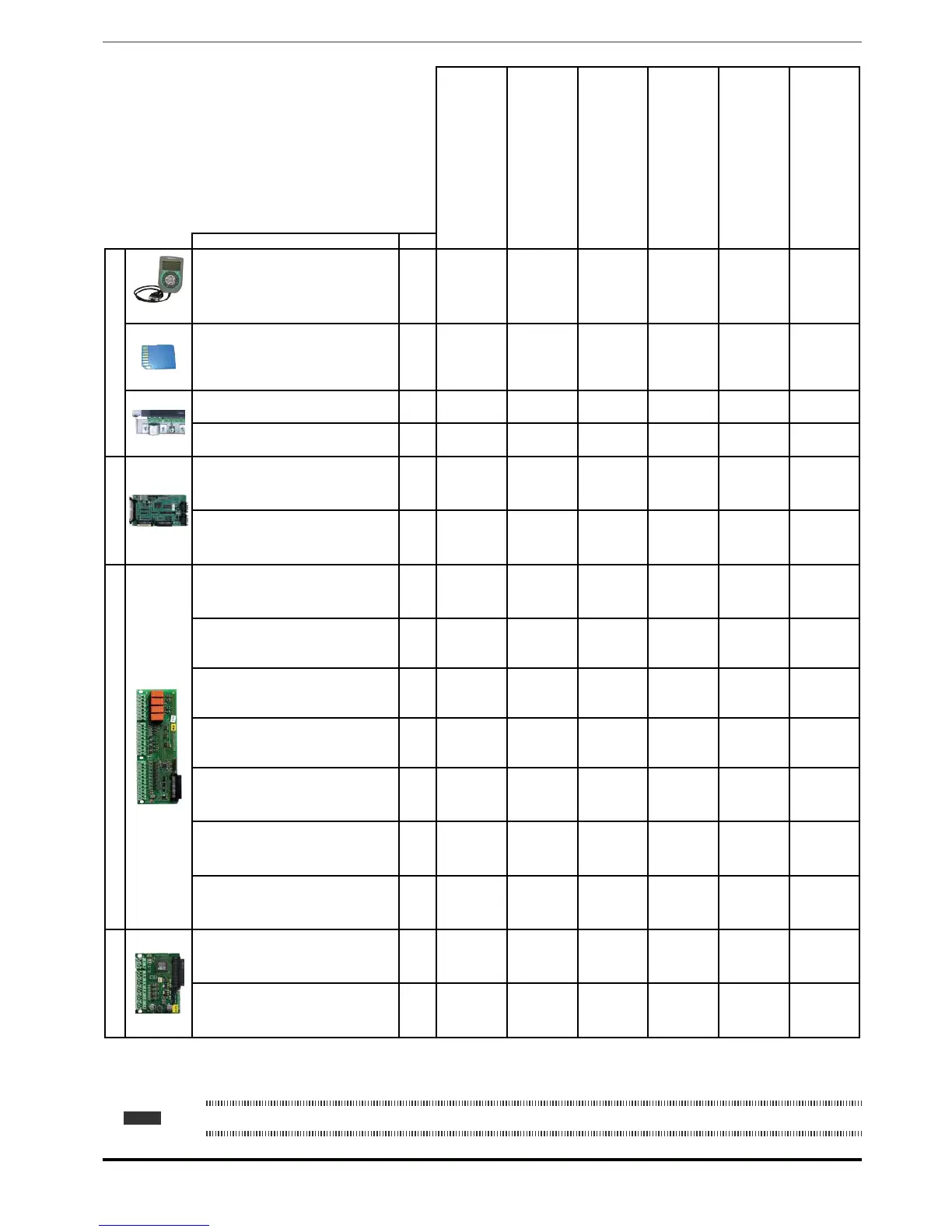

ADV100 • Quick installation guide - Specifications and connection 11
ADV100 – ... – XXX – 4
Sensorless - Versione Basic
ADV110 – ... – XXX – 4
Sensorless
ADV110 – ... – XXX – F – 4
Sensorless + EMI Filter
ADV120 – ... – XXX – 4
Sensorless + Encoder
ADV120 – ... – XXX – F – 4
Sensorless + Encoder + EMI Filter
ADV120 – ... – XXX – F – 4 – C
Sensorless + Encoder + EMI Filter + CAN
Type / Description Code
Various
KB-ADV100
Programming keypad with memory
S5P2T
SD-ADL
Adapter for SD card (data loading memory)
S574L
O O O
POWER SHIELD KIT
Power cable shielding kit (size 1-2)
S72610
POWER SHIELD KIT
Power cable shielding kit (size 3)
S72650
Regulation
R-ADL
Basic regulation card
------
O
RC-ADL
Regulation card with integrated CAN
------
O O O O O
I/O card
EXP-IO-D6A4R2-F-ADL
1 enable input (Enable) + 6 digital inputs (DI) + 2 analog
inputs (AI) + 2 analog outputs (AO) + 2 relay outputs (RO)
The terminals of this card are not extractable.
S580L
EXP-IO-D4-ADL
1 enable input (Enable) + 2 digital inputs (DI) + 2 digital
outputs (DO)
S567L
EXP-IO-D5R3-F-ADL
1 enable input (Enable) + 5 digital inputs (DI) + 3 relay
outputs (RO). The terminals of this card are not extractable.
S5L08
EXP-IO-D8R4-ADL
1 enable input (Enable) + 8 digital inputs (DI) + 4 relay
outputs (RO)
S568L
EXP-IO-D8A4R4-ADL
1 enable input (Enable) + 8 digital inputs (DI) + 2 analog
inputs (AI) + 2 analog outputs (AO) + 4 relay outputs (RO)
S570L
EXP-IO-D12A2R4-ADL
1 enable input (Enable) + 8 digital inputs (DI) + 4 digital
outputs (DO) + 2 analog inputs (AI) + 4 relay outputs (RO)
S569L
EXP-IO-D16R4-ADL
1 enable input (Enable) + 12 digital inputs (DI) + 4 digital
outputs (DO) + 4 relay outputs (RO)
S566L
Encoder cards
EXP-DE-I1-ADL
Digital encoder 2 Channels
S5L36
EXP-DE-I1R1F2-ADL
Digital encoder 3 Channels + Repeat + 2 Freeze
S5L04
= standard, = optional , O= not possible
Note! All the optional I/O and encoder cards available for the ADV100 Basic versions or upon request are listed in the Appendix.
