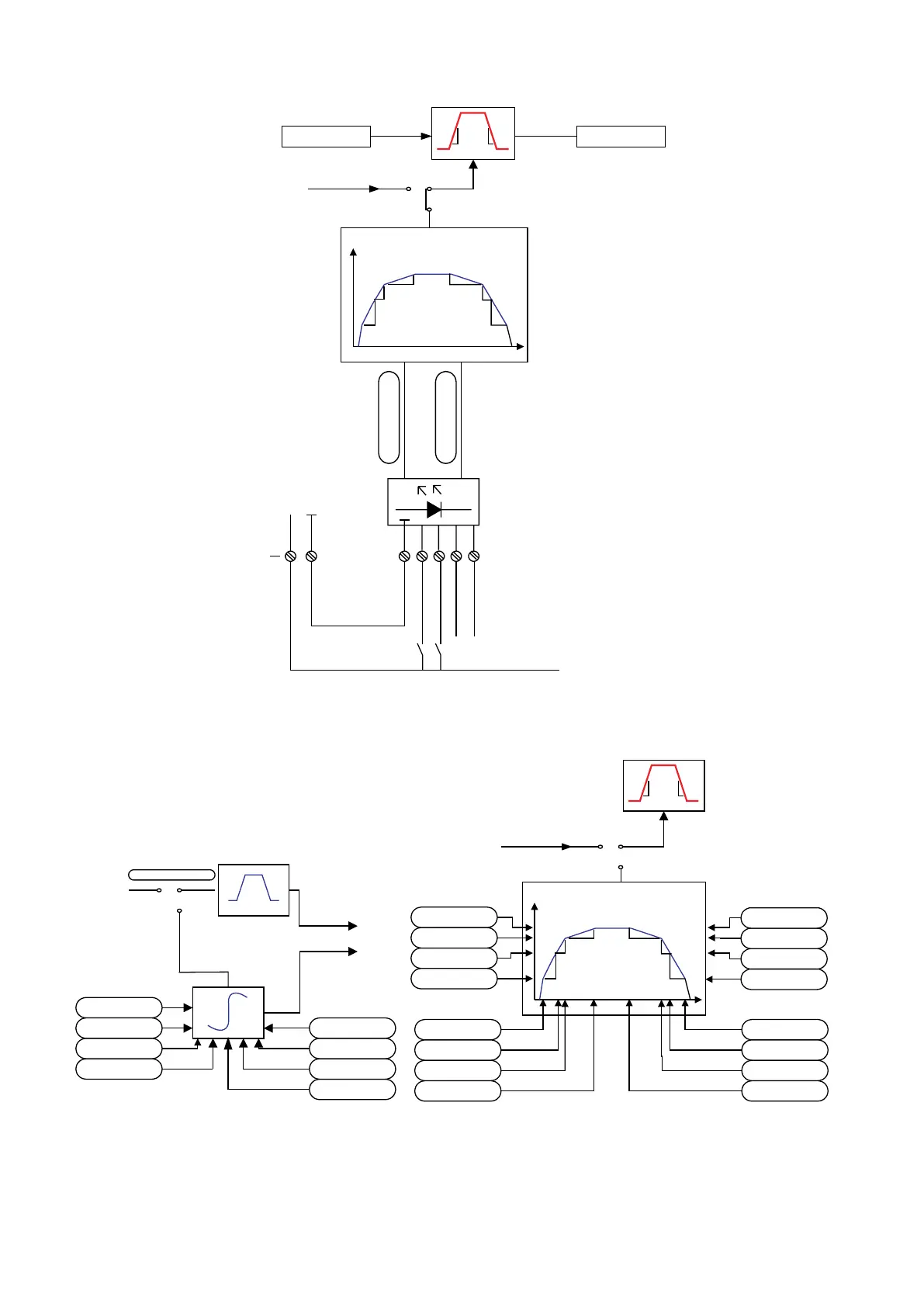

gefran TPD32-EV-500 series - Figure 6.14.4.1: Multi Ramp Selection Via Terminals

—————— TPD32-EV ——————
244
F
Multi Ramp FunctionSpeed
Reference Ramp
Single ramp
Ramp outRamp inp
15
11
12
13
14
19
18
+24V
0V 24
Digital input 1
Digital input 2
Digital input 3
Digital input 4
COM D I/O
2
0
2
1
TBO
Enab multi rmp
Ramp sel 0
Bit 0 Not Selected
Ramp sel 1
Bit 1 Not Selected
Figure 6.14.4.1: Multi ramp selection via terminals
F
F
Linear
Ramp
shape
selection
S-shape
Multi Ramp FunctionSpeed
t
Reference Ramp
Single ramp
Enab multi rmp
Ramp shape
S acctconst 0
300 ms
S acctconst 1
300 ms
S acctconst 2
300 ms
S acctconst 3
300 ms
S dectconst 3
300 ms
S dectconst 0
300 ms
S dectconst 1
300 ms
S dectconst 2
300 ms
Acc delta speed 1
100 rpm
Dec delta speed 1
100 rpm
Acc delta speed 2
100 rpm
Dec delta speed 2
100 rpm
Acc delta speed0
100 rpm
Acc delta speed 3
100 rpm
Dec delta speed0
100 rpm
Dec delta speed 3
100 rpm
Acc delta time 0
1s
Acc delta time 1
1s
Acc delta time 2
1s
Acc delta time 3
1s
Dec delta time 0
1s
Dec delta time 1
1s
Dec delta time 2
1s
Dec delta time 3
1s
Figure 6.14.4.2: Multi ramp selection via signals
