—————— TPD32-EV ——————
330

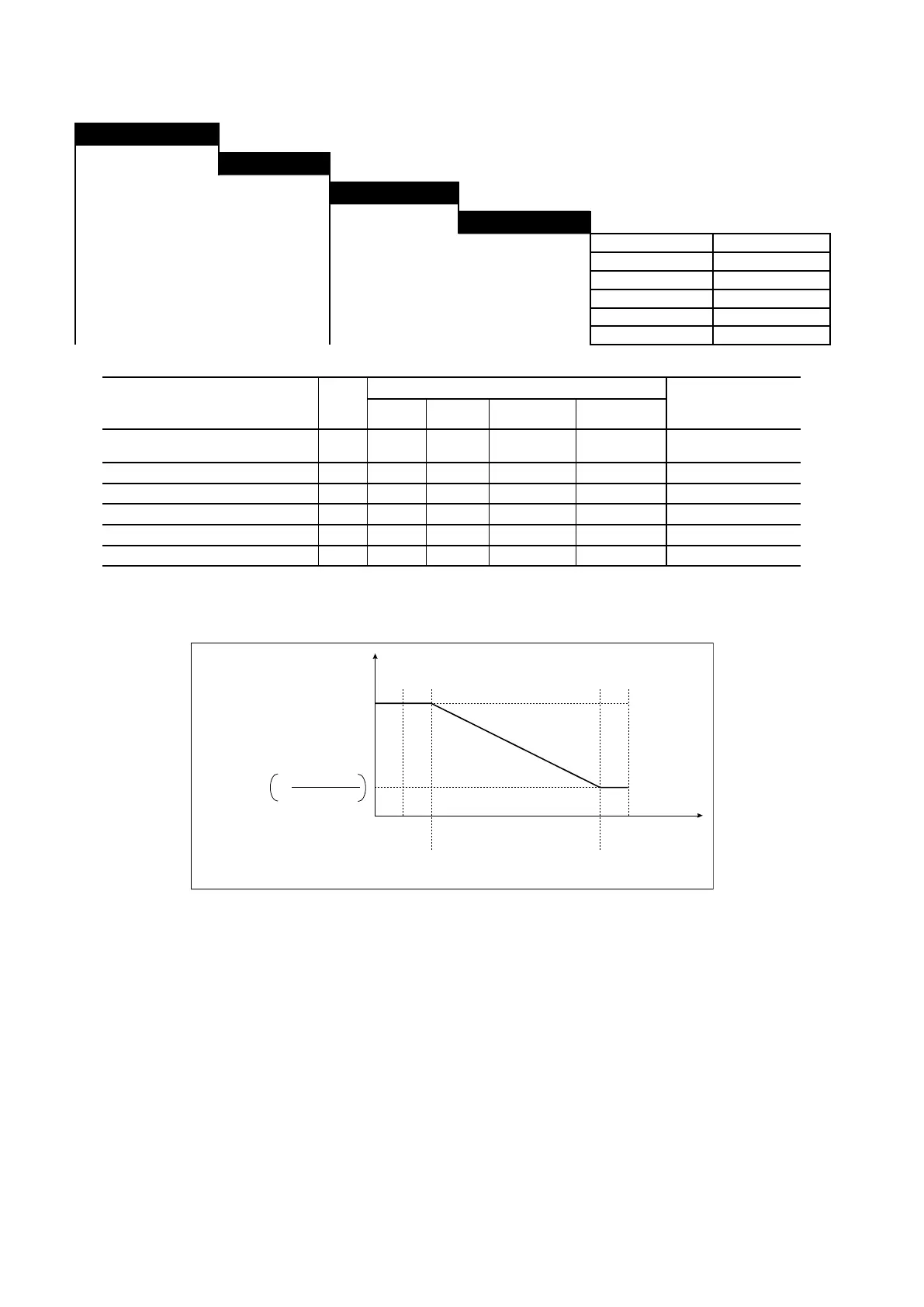

6.17.2.2 Taper function
OPTIONS
Torque winder
Torque calculat
Taper function
[1176] Taperenable
[1177] Initdiameter[m]
[1178] Finaldiameter[m]
[1180] Tensionref[%]
[1179] Tensionred[%]
[1194] Acttensionref[%]
Parameter description No.
Value
Standard
Conguration
min max
Factory
American
Factory
Standard
Taper enable
Enabled(1)/Disabled(0)
1176 0 1 Disabled(0) Disabled(0)
*
Init diameter [m]
1177 0.000 32.000 0.1 0.1
Final diameter [m]
1178 0.000 32.000 1 1
Tension ref [%]
1180 0.00 199.99 0 0
**
Tension red [%]
1179 0.00 199.99 0 0
**
Act tension ref [%]
1194 0.00 200.00 0 0
***
* Thisparametercanbesetonaprogrammabledigitalinput.
** Thisparametercanbesetonaprogrammableanaloginput.
***Thisparametercanbesetonaprogrammableanalogoutput.
Tension ref
Min
diameter
Max
diameter
Init
diameter
Final
diameter
Tension ref x
1-
Tension red
100
Roll diameter
Act tension ref
Figure 6.17.2: Relation among the Taper function parameters
Taper enable EnablingofTaperfunction.
Init diameter Diameterforthestartingofthetapertensionreductioninmeters.
Final diameter Diameterfortheendingofthetapertensionreductioninmeters.
Tension ref Tensionreferencein%.
Tension red TapertensionreductionasapercentageofTension ref.
Act tension ref MonitorfortheactivetensionreferenceasapercentageofTension ref.
