gefran TPD32-EV-500 series - Figure 2.4.7-A: Type D Dimensions

—————— TPD32-EV ——————
42

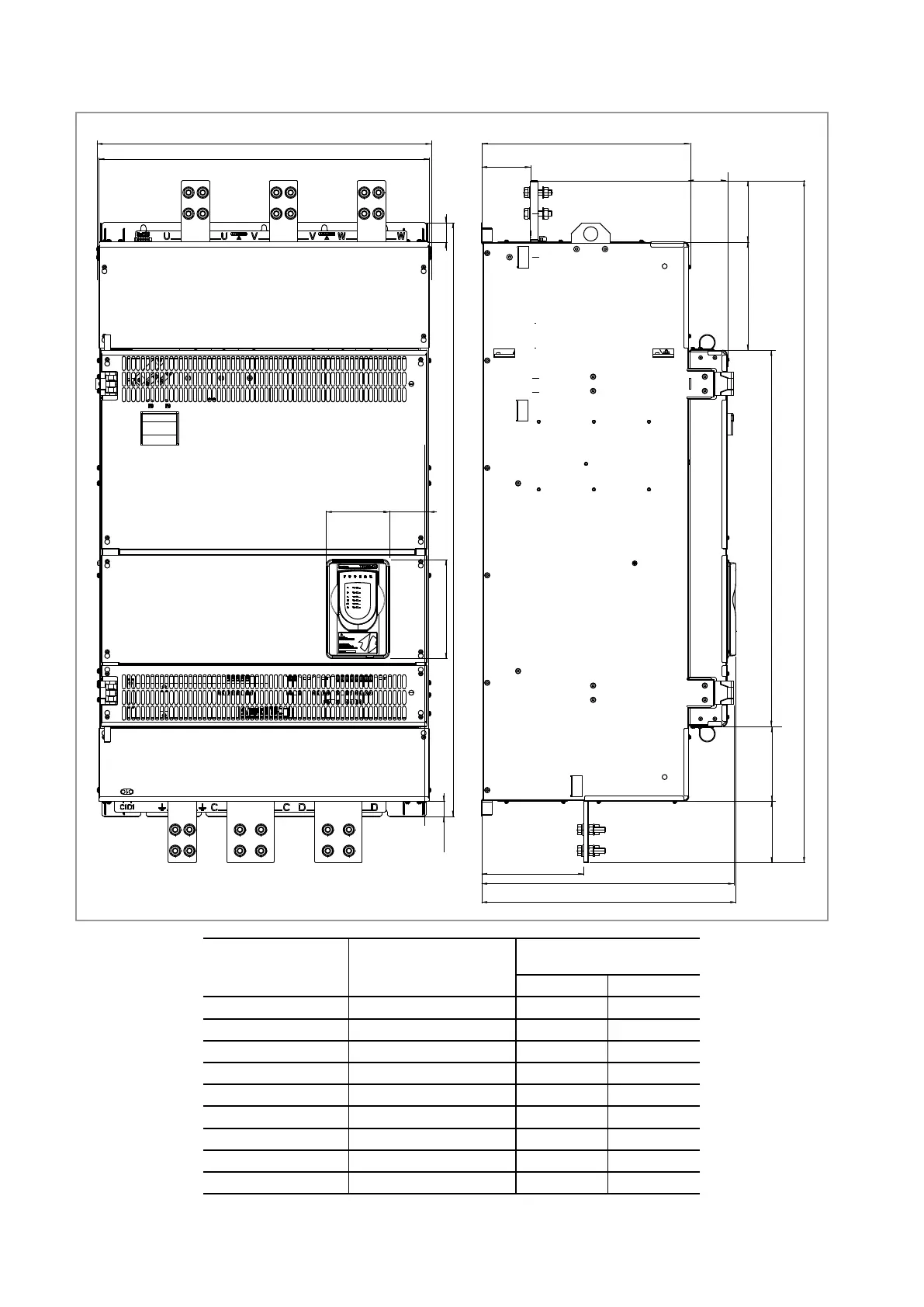

Figure 2.4.7-A: Type D dimensions
1250 mm [49.21”]
436.5mm
215.2mm [8.47”]
83mm133mm
208mm
157.5mm
103.25mm [4.06”]
MAX 1435 mm [56.5”]
792mm
42
32mm
129mm
129mm [5.08”]
80.5mm
227.5mm [89.57”]
704 mm [27.72”]
696mm [27.4”]
531mm [20.9”]
536mm [21.1”]
American Standard Weight
kg [lbs]
2B 4B
TPD32-EV-.../...-920-..-D TPD32-EV-.../...-1300-..-D
152 [335.1] 203 [447.5]
TPD32-EV-.../...-980-..-D TPD32-EV-575/...-1300-..-D
152 [335.1] 203 [447.5]
TPD32-EV-.../...-1000-..-D TPD32-EV-.../...-1400-..-D
165 [363.8] 215 [474.0]
TPD32-EV-.../...-1200-..-D TPD32-EV-.../...-1600-..-D
165 [363.8] 215 [474.0]
TPD32-EV-.../...-1450-..-D TPD32-EV-.../...-1900-..-D
165 [363.8] 215 [474.0]
TPD32-EV-.../...-1500-..-D TPD32-EV-.../...-2000-..-D
165 [363.8] 215 [474.0]
TPD32-EV-.../...-1650-..-D TPD32-EV-.../...-2100-..-D
191 [421.1] 241 [531.3]
TPD32-EV-.../...-1800-..-D TPD32-EV-.../...-2300-..-D
191 [421.1] 241 [531.3]
TPD32-EV-.../...-1850-..-D TPD32-EV-.../...-2400-..-D
191 [421.1] 241 [531.3]
