gefran TPD32-EV-500 series - Figure 2.4.3: Type A3 Dimensions

—————— TPD32-EV ——————
38

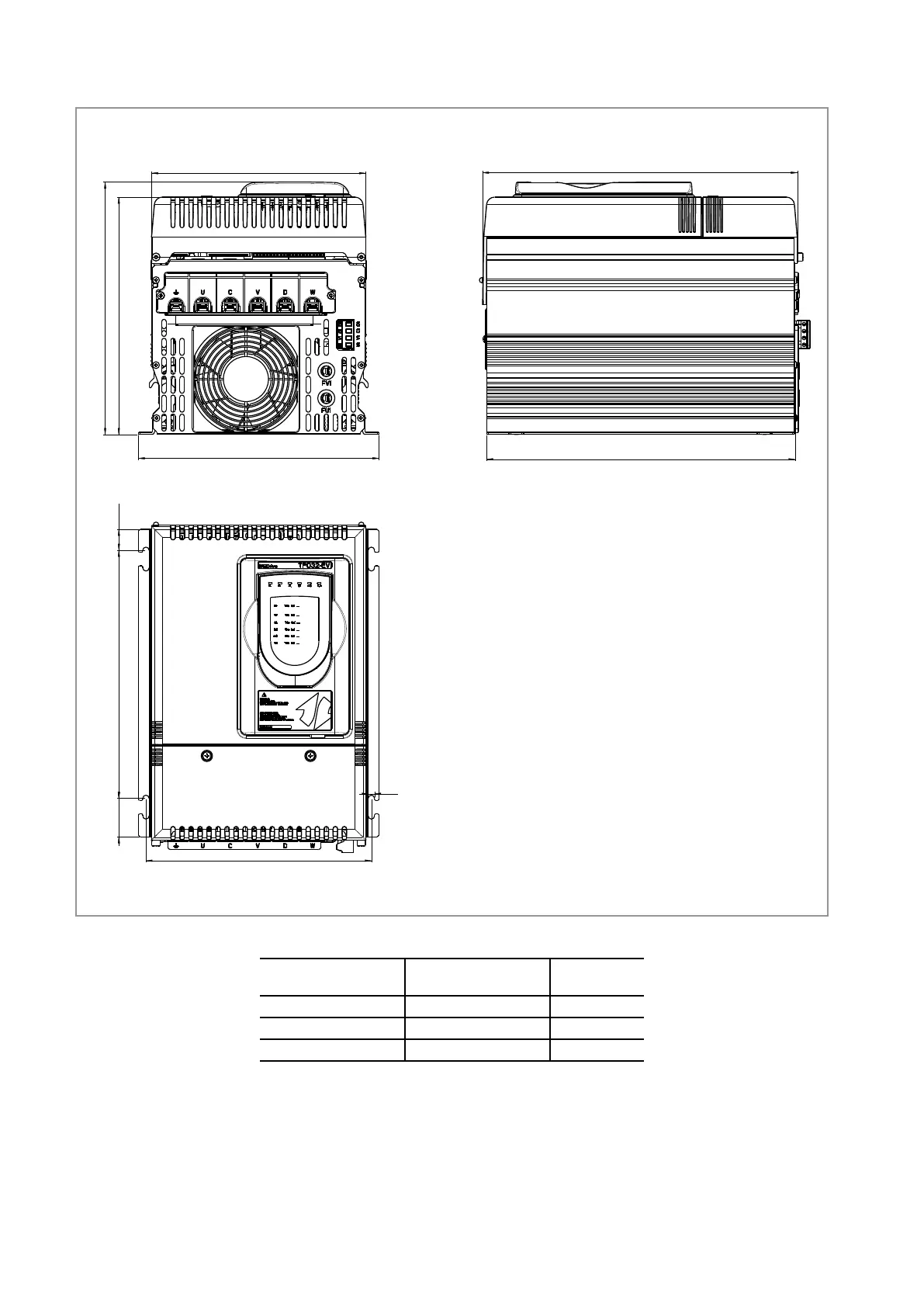

Figure 2.4.3: Type A3 dimensions
266.8mm [10.5”]
263.2mm [9.3”]
280mm [11.02”]
237.2mm [9.34”]
250mm [9.84”]
42.75mm 275mm [10.8”]
23.25mm
7mm
349.2mm [13.75”]
342mm [13.5”]
American Standard Weight
kg [lbs]
TPD32-EV-.../...-88-..-A TPD32-EV-.../...-110-..-A 10.8 [23.8]
TPD32-EV-.../...-112-..-A TPD32-EV-.../...-140-..-A 10.8 [23.8]
TPD32-EV-.../...-148-..-A TPD32-EV-.../...-185-..-A 10.8 [23.8]
