A2.5.3 12-pulse configuration of TPD32-EV with connection via external I/Os between
TPD32-EV-CU and TPD32-EV-FC units

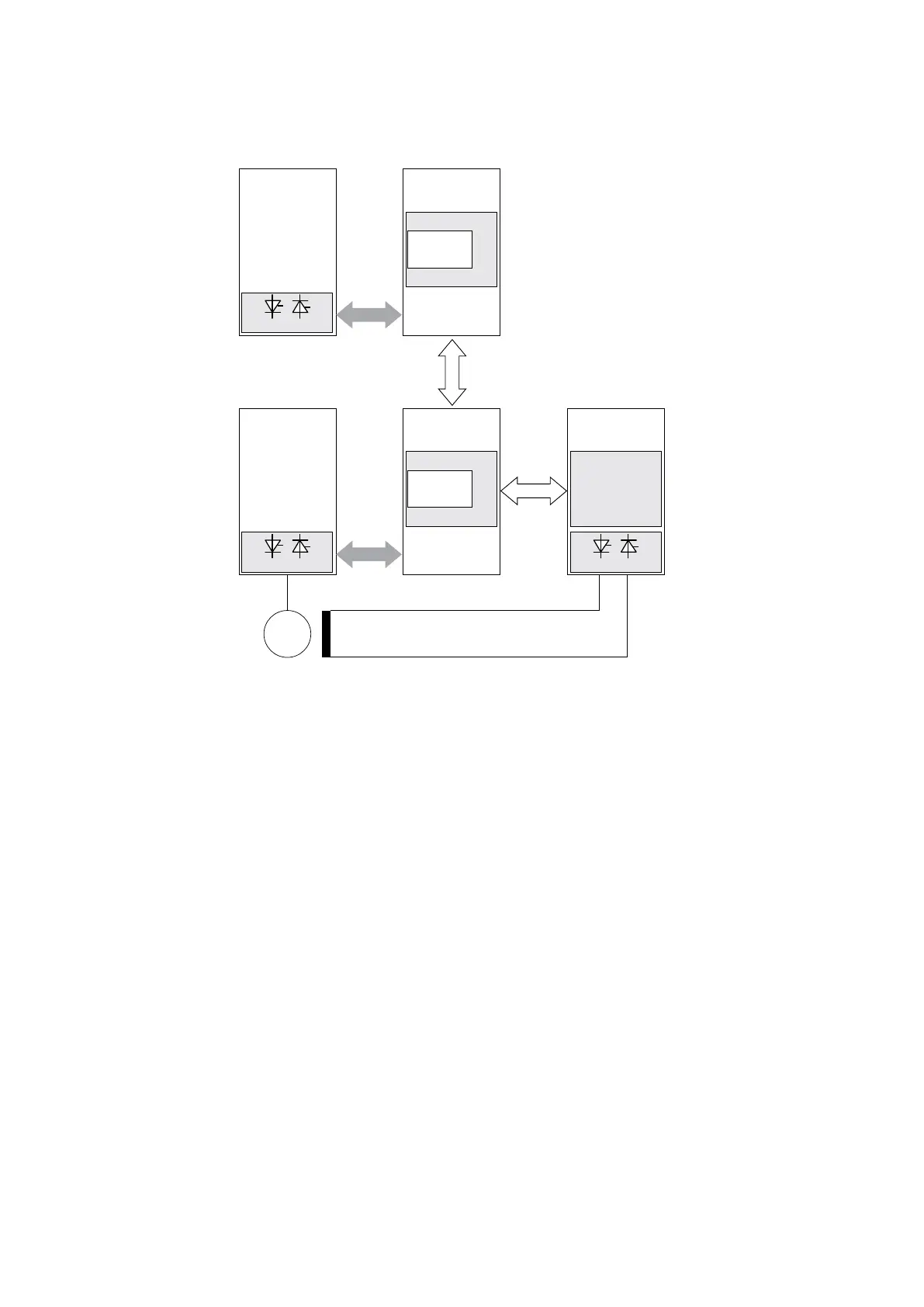

Figure A2.5.3: Block diagram of Field exciter control, connection via external I/Os
TPD32-EV-CU
Control Unit
TPD32-EV-...-E
External Bridge
Optical fiber
R-TPD32
SBI-OFS-32
2Q / 4Q
2Q / 4Q
R-TPD32
M
TPD32-EV-CU
Control Unit
TPD32-EV-FC
External Field
TPD32-EV-...-E
External Bridge
External I/O
R-TPD32
SBI-OFM-32
2Q / 4Q
Cable :
cod. S7QAE3 (3m)
cod. S7QAQ8 (5m)
