36 enVision Owner’s Guide
Material pulldown
Prior to plotting, the plotter unrolls (pulls down) a specific length of material
from the supply roll. This is an automatic feature that prevents pulling the
material directly from the roll at high speeds during the job which could lead to
poor cut quality. The enVision will pull down as much material as it needs for a
job up to the amount set. (The factory default is 12".) If you are using GA rules,
the length to pull down will be sent by GA, otherwise, the enVision calculates
the length. The pulldown range is 4" to 48". Shortening the pulldown may result
in multiple pull-downs for longer jobs.

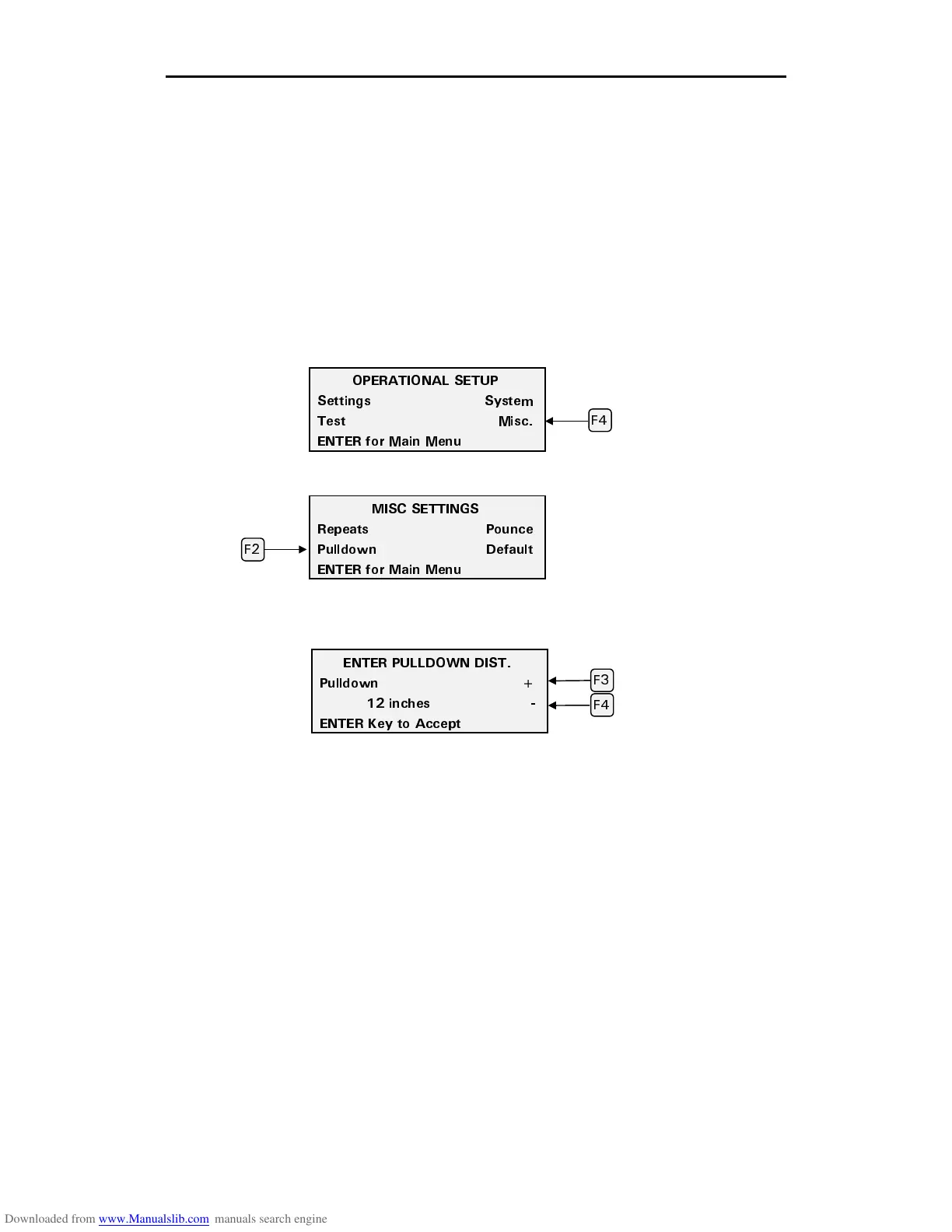

1.
Press F3 while holding down the ENTER key for the Operational Setup
menu.
2.
Press F4, Misc.
3.
Press F2, PULLDOWN.
4.
Press F3 to increase the number of inches or F4 to decrease the number of
inches.
5.
Press ENTER to set the value and return to the Misc Settings. Pressing
CANCEL restores the previous value.
6.
Press ENTER to return to the MAIN MENU.
(
(
/+5% 5'66+0)5
4GRGCVU 2QWPEG
2WNNFQYP &GHCWNV
'06'4 HQT /CKP /GPW
12'4#6+10#. 5'672
5GVVKPIU 5[UVGO
6GUV /KUE
'06'4 HQT /CKP /GPW
(
(
'06'4 27..&190 &+56
2WNNFQYP
KPEJGU
'06'4 -G
VQ #EEG
V
