28.1 Technical Description

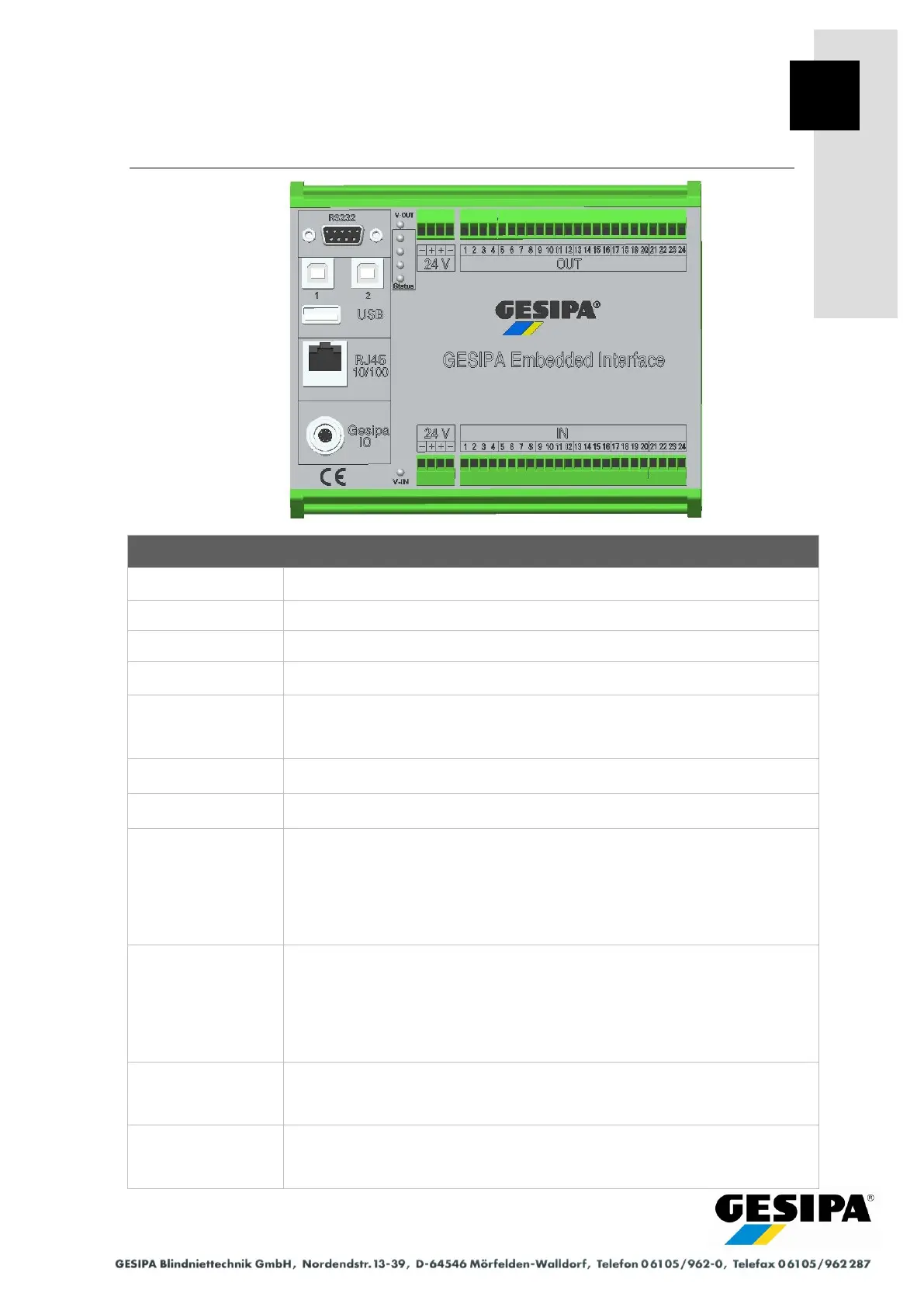

PLC Interface
28.1 Technical Description
Technical data
Dimensions
approx.153 mm x 126 mm x 55 mm
Weight
approx. 320 g
Installation
on mounting rail as per DIN (EN 60715)
Operating voltage
24 VDC (permissible voltage range 20 - 30 VDC)
Maximum current
consumption
Interface: approx. 800 mA
Inputs: approx. 100 mA
Outputs: depending on loads to be switched
Temperature range
permissible ambient temperature -20 °C to +70 °C
Protection class
IP 20
24 PLC inputs
of which only pins 1-
16 available
Switching level 1: > 8 VDC
Switching level 0: < 8 VDC
Input current: typ. 1.4 mA at 24 VDC
- Current limitation
- Overvoltage protection
- Galvanic isolation
24 PLC outputs
of which only pins 1-
16 available
Permissible voltage range: 20 - 30 VDC
Maximum switching current: 250 mA/per output at 24 VDC
- Current limitation
- Overheating protection
- Overvoltage protection
- Galvanic isolation
Interfaces
1x RS232 1x RJ45 10/100
1x USB 2.0 Type A (PC) 1x GESIPA IO (GAV)
2x USB Type B
Plug connector and
connecting cable
- Connectors for power supply, inputs and outputs
(included in scope of delivery)
- RS232 interface cable (Part No. 719 1133)
