28.1 Technical Description
PLC Interface
28.1 Technical Description

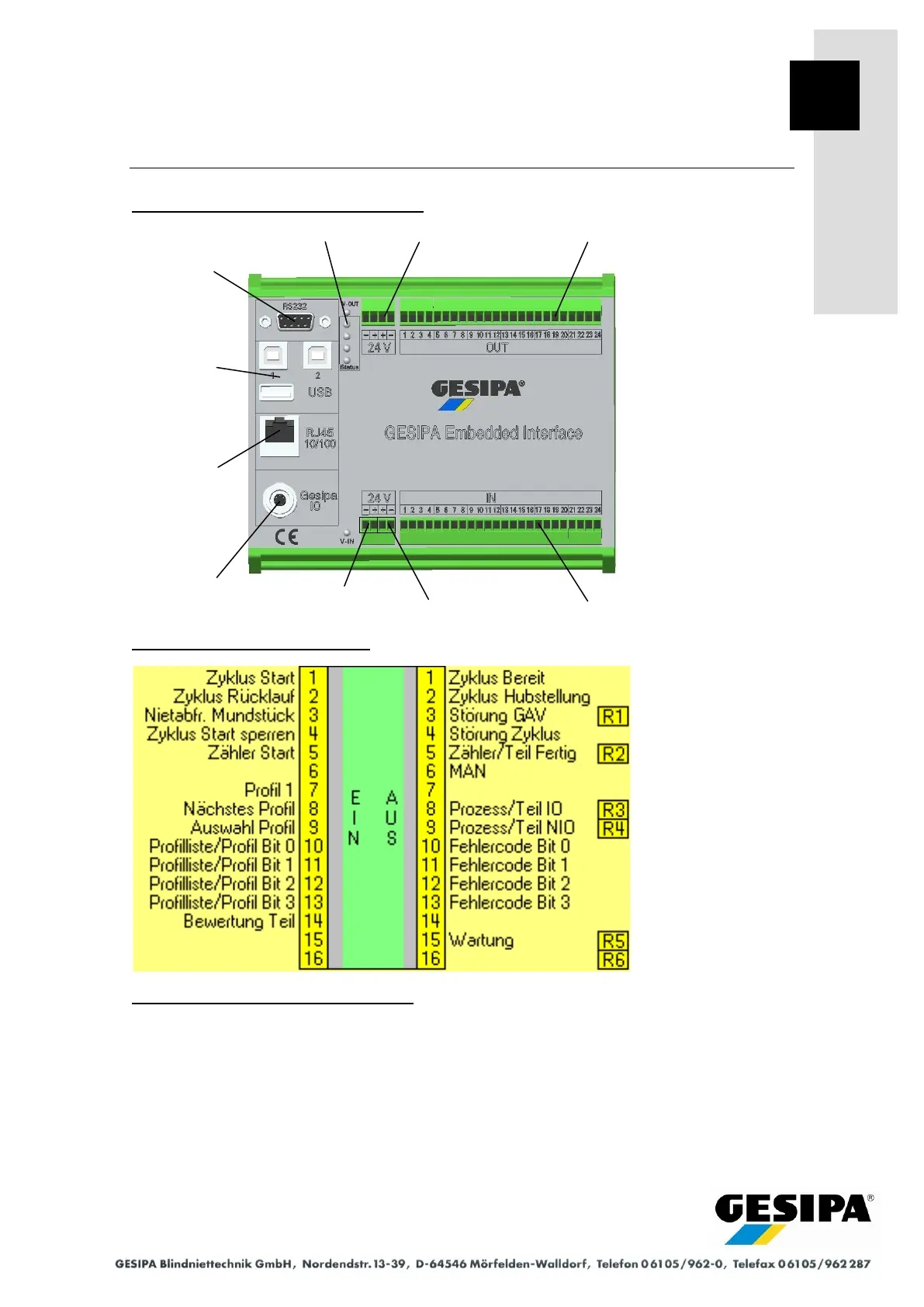

PLC interface connection assignments:
GAV8000 function assignments:
Inputs and outputs with dual function:
● Output 5 "Counter/Part Finished" signals that the set values has been reached with the "pro-
cess counter" function activated or the finished part with the "profile list" activated.
● With inputs 10 to 13 "Profile List/Profile Bit 0" to "Bit 3" both profile lists (see Section 28.5
"Profile List Selection") as well as profiles with the "profile selection" (24 V) active can be se-
lected from the active profile list (see Section 28.6 "Direct Profile Selection").
● The outputs 8 to 13 "Process/Part OK" and "NOK" can output the evaluation of the last pro-
cess (see Section 28.8 "Process Evaluation") as well as the evaluation of the component
(see Section 28.9 "Component Evaluation") with the "part evaluation" (24 V) input active.
Power supply
unit control
Power supply
unit outputs
