Gesipa 8000 - Page 156

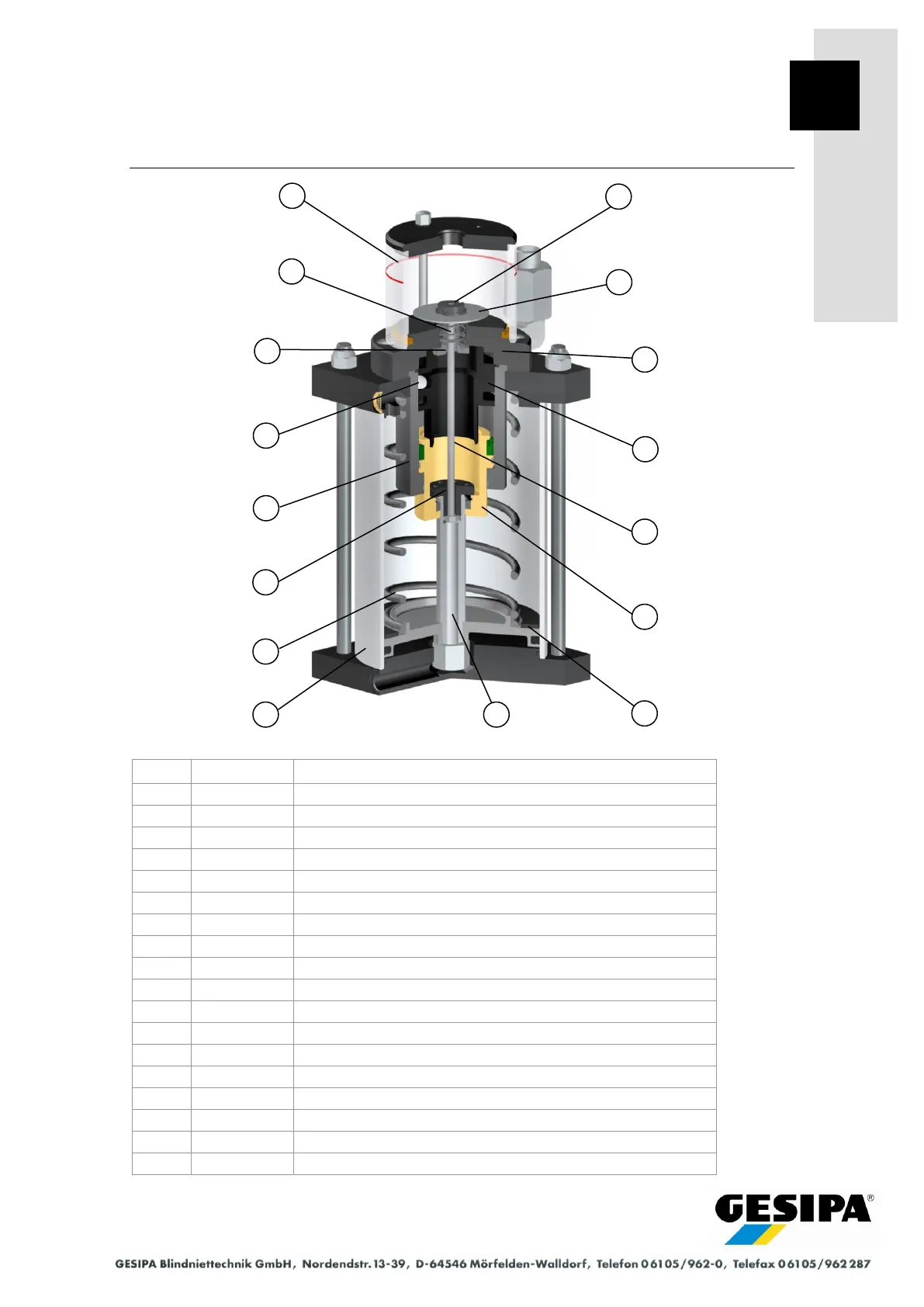

E3 Hydraulic Booster Unit
Spare Parts
E3 Hydraulic Booster Unit
Item
Part No.
Description
-
7191130
Pressure booster (with no add-on parts)
-
1456925
Pressure booster - set of seals
1
1434578
Flange
2
1434651
Barrel
3
1434656
Converter piston
4
1456998
Valve plate assy
5
1434627
Locking socket
6
1434657
Collar screw
7
1456971
Plunger assy with air piston
8
1434632
Barrel
9
1434692
Sight glass
10
1434653
Valve stem
11
1434674
Plate
12
1434658
Throttle cylinder
13
1445562
Valve ball (2x)
14
1445560
Compression spring
15
1434655
Compression spring
16
1462881
Ring magnet
E3
4
15
2
13
6
14
8
9
1
12
10
3
16
5
11
- 12 -
7
