Process Monitoring
11.3 Creating Profile

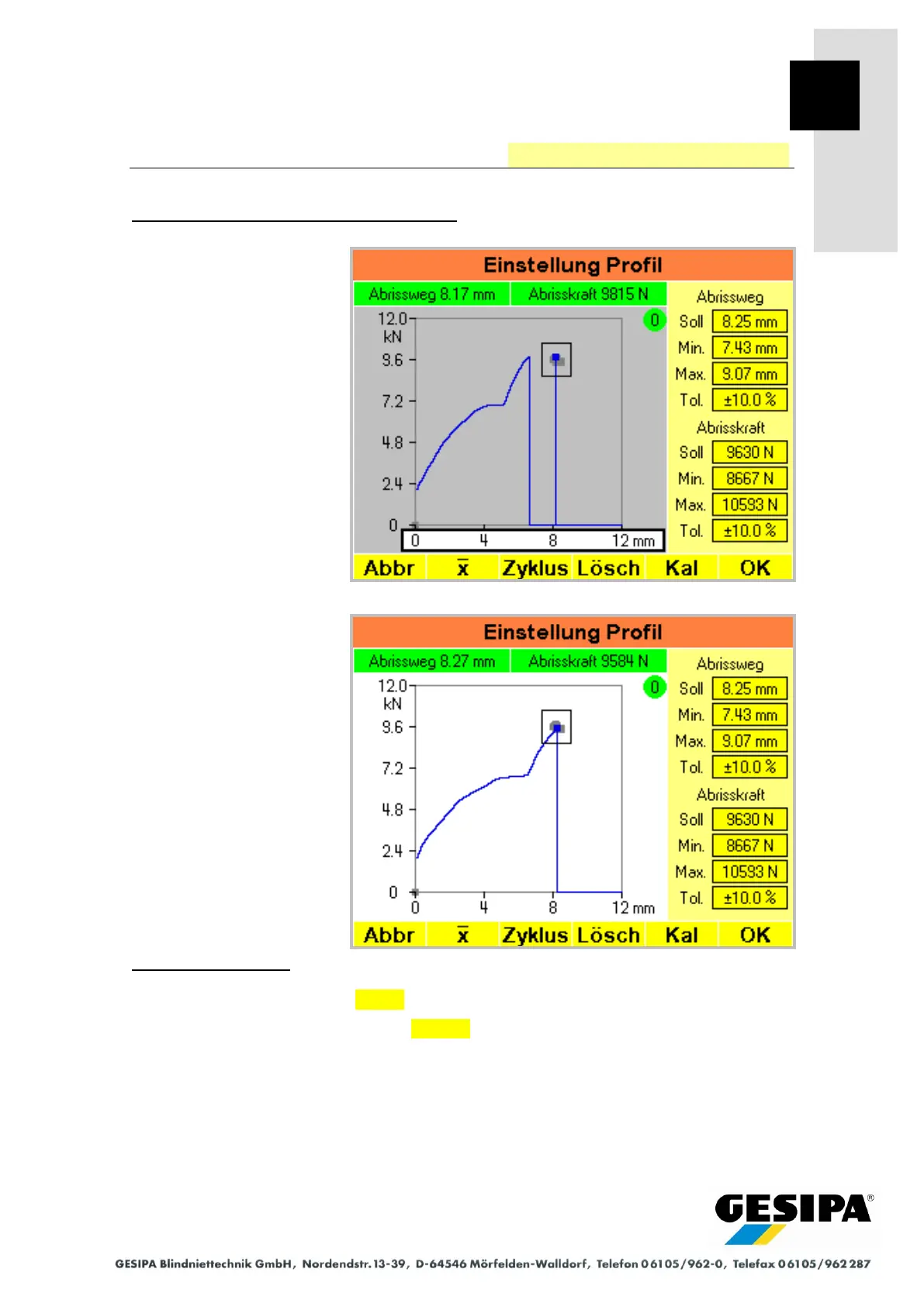

Step 5: Setting pulling displacement scaling
The scaling for the pulling
displacement is to be set
such that the setpoint for the
break-off point is approx. 75%
of the total scaling.
When the pulling displace-
ment scaling is changed, the
break-off points are updated
directly but the curve is up-
dated during the next cycle.
The scaling for the pulling
force is adapted automatically
after each measurement.
Further process curves can
then be run as a check.
Step 6: Saving profile
The new profile is saved with OK .
The procedure can be cancelled with Cancel and the old profile is loaded again.
