Process Monitoring
11.3 Creating Profile
With Cycle at least 3 blind
rivets are processed in the
material.
The break-off point of the cur-
rent process curve is shown
in blue and the maximum last
20 processes in grey.
With Delete all recorded da-
ta can be deleted and the
process curve created again.

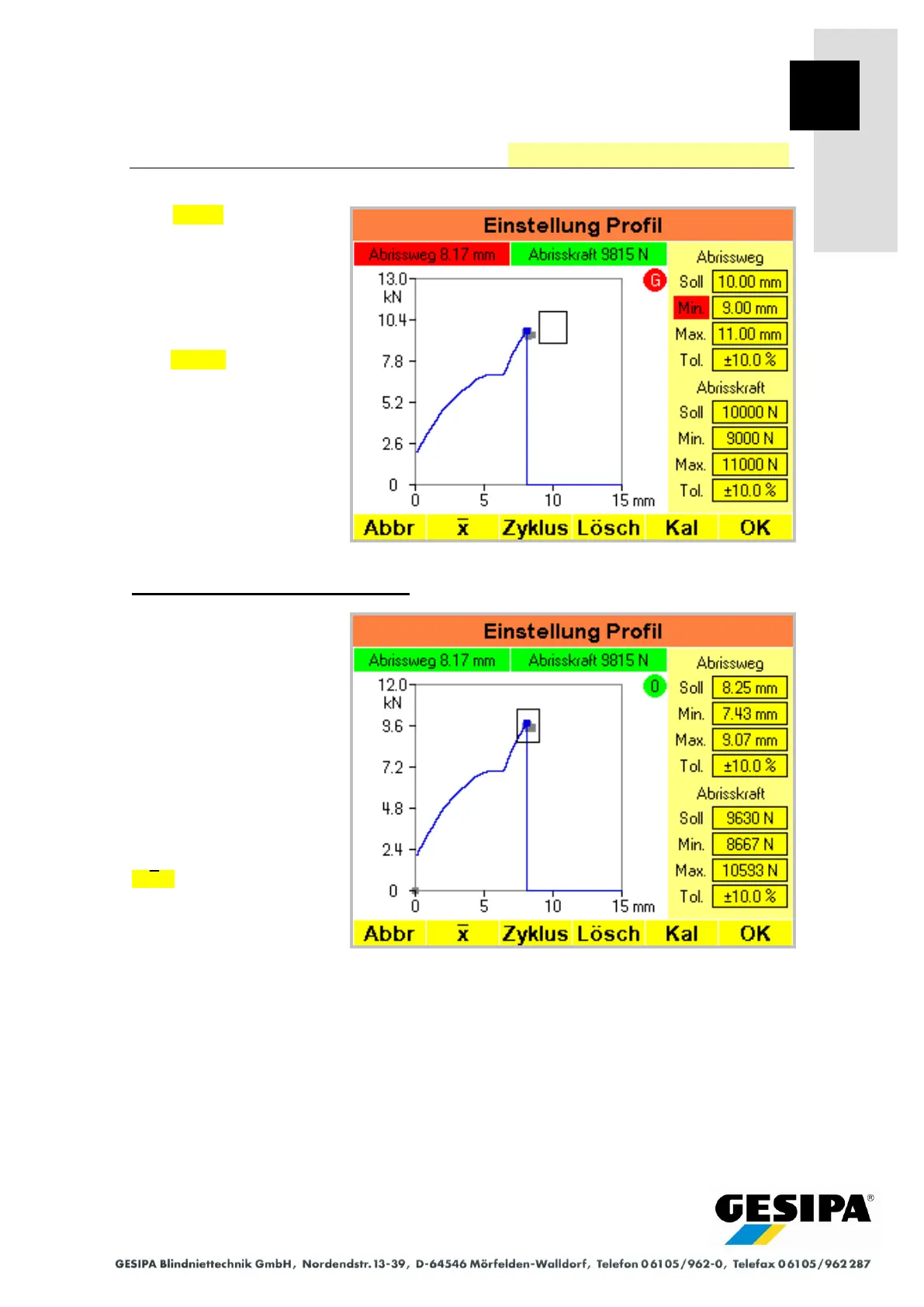

Step 4: Setting evaluation parameters
The evaluation parameters for
the break-off displacement
and break-off force can now
be defined. They are defined
by setting the absolute min.
and max. values or the set-
point and the percentage de-
viation.
The set limits are represented
by a window.
The window over the
break-off points can be de-
termined automatically with
x . Nevertheless, the tol-
erable percentage deviation
still needs to be set.
To Next Page
