Major Hardware Components TRIND Overhead Antennas
Page 4-18 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013

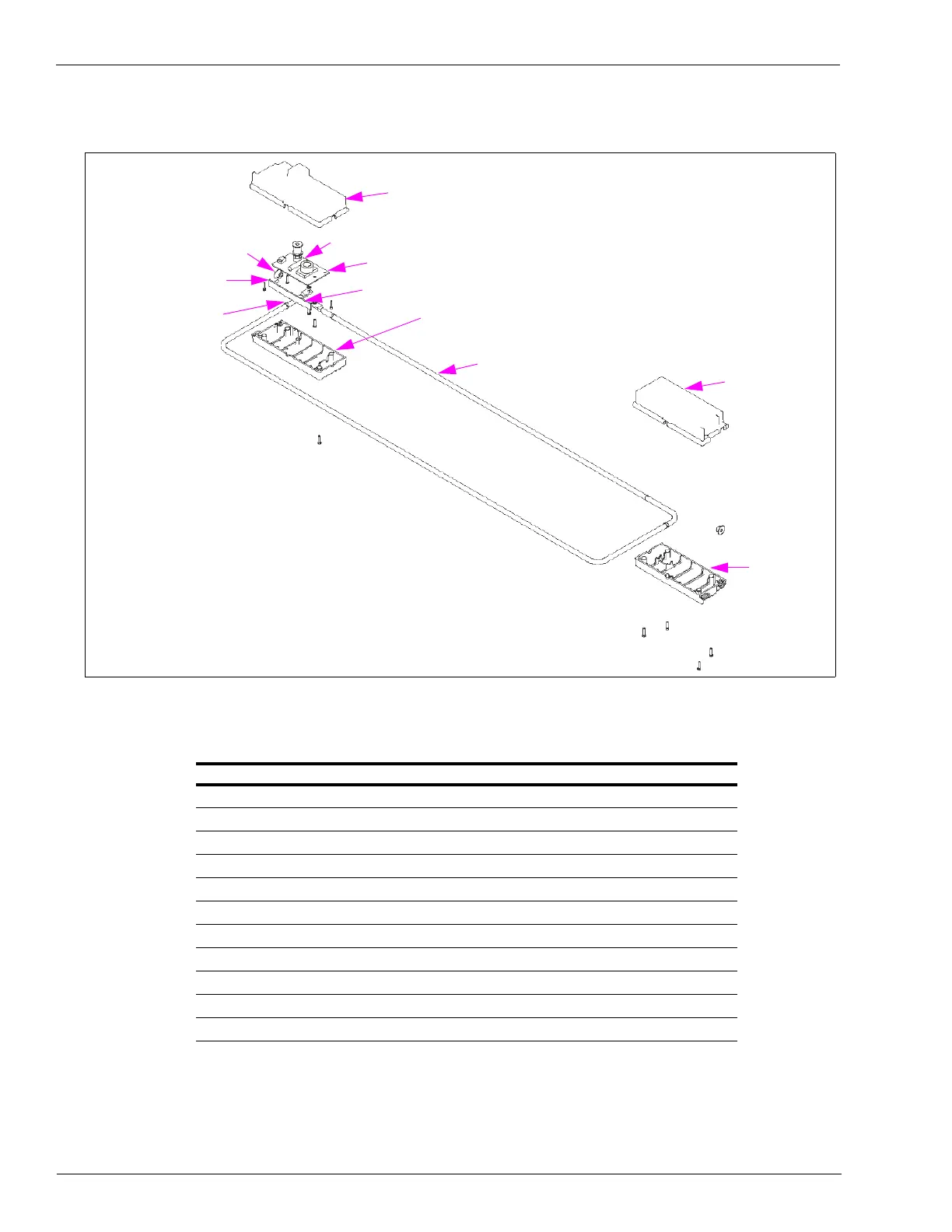

Figure 4-21: Single-loop Overhead Antenna Assembly
Top Left Antenna Box
Lock Washer
Antenna Tuner PCA
Screw Thread Form # 6-19
Bottom Left Antenna Box
Antenna
Bottom Right
Antenna Box
Top Right Antenna
Box
Hex Nut
UHF Receiver Antenna
Neoprene Adhesive
Tape
Single-loop Overhead Antenna Assembly (Domestic)
Following table lists the Single-loop Overhead Antenna Assembly (Domestic) parts:
Item Description T20632-G1 T20632-G2 T20632-G3 T20632-G4
1 Bottom Right Antenna Box T20615-04 T20615-04 T20615-04 T20615-04
2 Top Right Antenna Box T20615-02 T20615-02 T20615-02 T20615-02
3 Antenna W03889-01 W03889-02 W03889-03 W03889-04
4 Bottom Left Antenna Box T20615-03 T20615-03 T20615-03 T20615-03
5 Screw Thread Form # 6-19 Q12011-17 Q12011-17 Q12011-17 Q12011-17
6 Antenna Tuner PCA T20579-G1 T20579-G2 T20579-G3 T20579-G4
7 Lock Washer K46212 K46212 K46212 K46212
8 Top Left Antenna Box T20615-01 T20615-01 T20615-01 T20615-01
9 Hex Nut Q11890-04 Q11890-04 Q11890-04 Q11890-04
10 UHF Receiver Antenna Q13851-01 Q13851-01 Q13851-01 Q13851-01
11 Neoprene Adhesive Tape Q11899-12 Q11899-12 Q11899-12 Q11899-12
