MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013 Page 4-19
TRIND Overhead Antennas Major Hardware Components
Single-loop Overhead Antenna Assembly (International)
Following table lists the Single-loop Overhead Antenna Assembly (International) parts:
Item Description T20632-G5 T20632-G6 T20632-G7 T20632-G8
1 Bottom Right Antenna Box T20615-04 T20615-04 T20615-04 T20615-04
2 Top Right Antenna Box T20615-02 T20615-02 T20615-02 T20615-02
3 Antenna W03889-01 W03889-02 W03889-03 W03889-04
4 Bottom Left Antenna Box T20615-03 T20615-03 T20615-03 T20615-03
5 Screw Thread Form # 6-19 Q12011-17 Q12011-17 Q12011-17 Q12011-17
6 Antenna Tuner PCA T20579-G1 T20579-G2 T20579-G3 T20579-G4
7 Lock Washer K46212 K46212 K46212 K46212
8 Top Left Antenna Box T20615-01 T20615-01 T20615-01 T20615-01
9 Hex Nut Q11890-04 Q11890-04 Q11890-04 Q11890-04
10 UHF Receiver Antenna Q13851-02 Q13851-02 Q13851-02 Q13851-02
11 Neoprene Adhesive Tape Q11899-12 Q11899-12 Q11899-12 Q11899-12

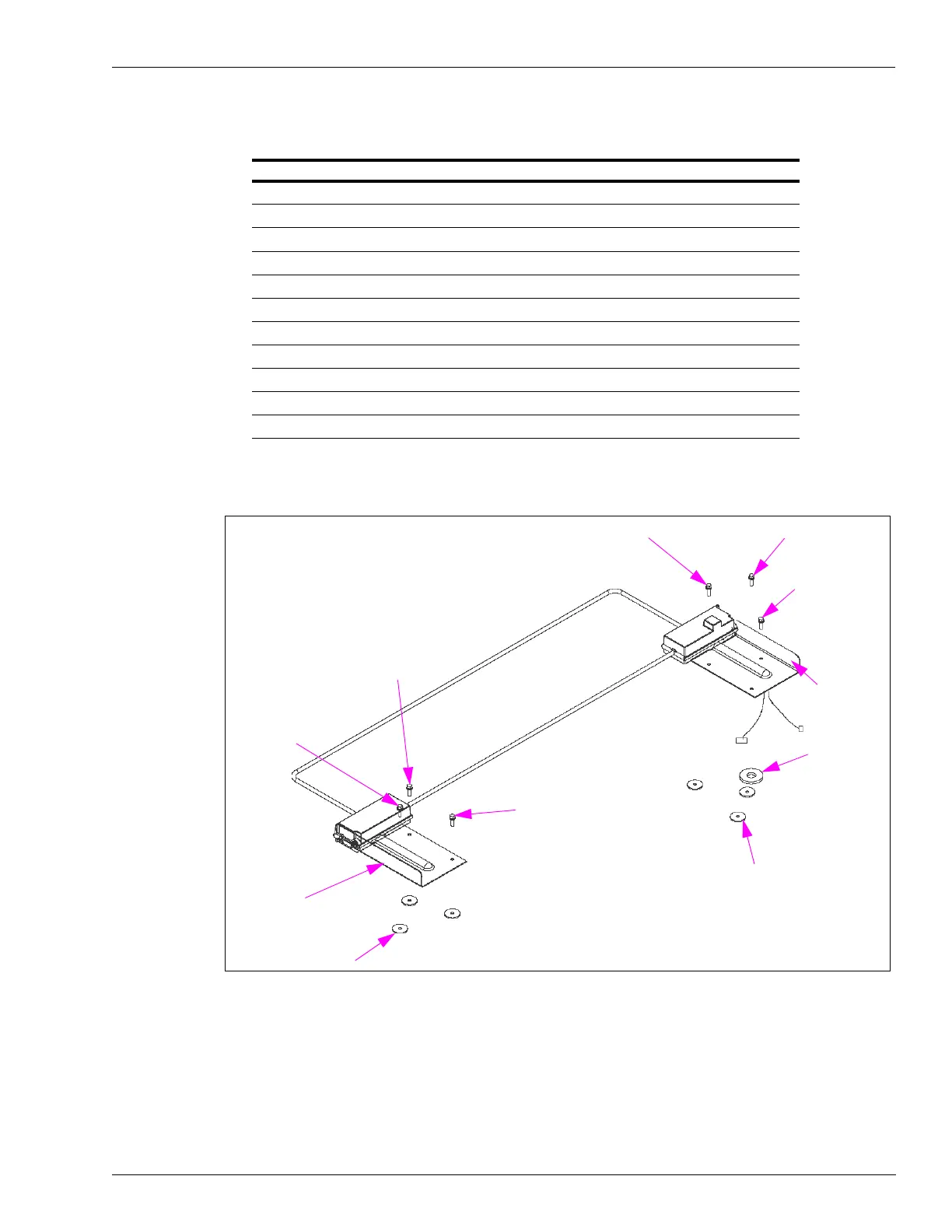

Figure 4-22: Single-loop Antenna Brackets and Hardware
Bottom Right Antenna Box
Antenna
Screw Thread
Form # 6-19
Screw Thread Form # 6-19
Antenna Tuner PCA
Antenna Tuner PCA
Antenna Tuner PCA
Antenna Tuner PCA
Top Right
Antenna Box
Bottom Left
Antenna Box
Antenna
To Next Page
