Dispenser Setup Tuning Antennas
Page 7-8 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
4 On Card Cage, move the three position “tune” toggle switch from the center position to “A”.

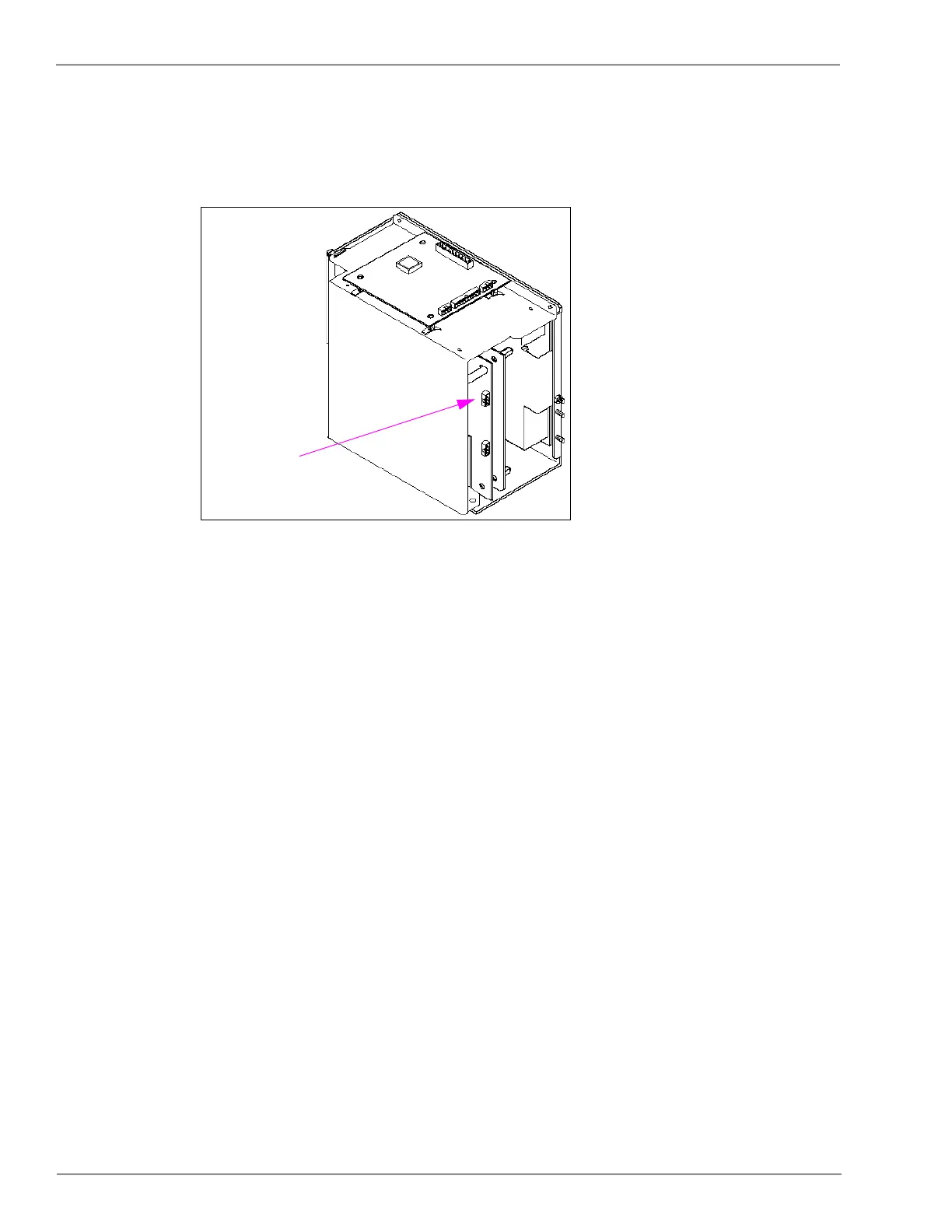

Figure 7-8: Tune Toggle Switch Location
“Tune” toggle switch location
5 Connect the leads on the multimeter to field strength sensor. Set the meter to the DC voltage
range.
6 By fine adjustments to variable inductor, set to the highest DC voltage reading.
Note: Voltage will peak at a point between 12 VDC and 20 VDC, and then decr
ease with turns
in either direction. Set at peak.
7 Repeat steps 1 on page 7-7 through 6 for Side B.
8 When finished, return the tune toggle switch to the center position.
