41
Circlip D0=17
1
42
Elastic Hoop H
2
43
Clamp
2
44
Rubber Boot Ⅰ
2
45
Hexagon Nut M14×1.5
2
46
Steering Gear Ball Joint
2
47
Spring Washer8
1
48
Plain Washer 8
1
49
Steering Wheel Assy
1
50
Key
1
Common Key
1
51
Ignition Switch
1
Steering Mechanism Part
No.
Part Name
Qty
Remarks

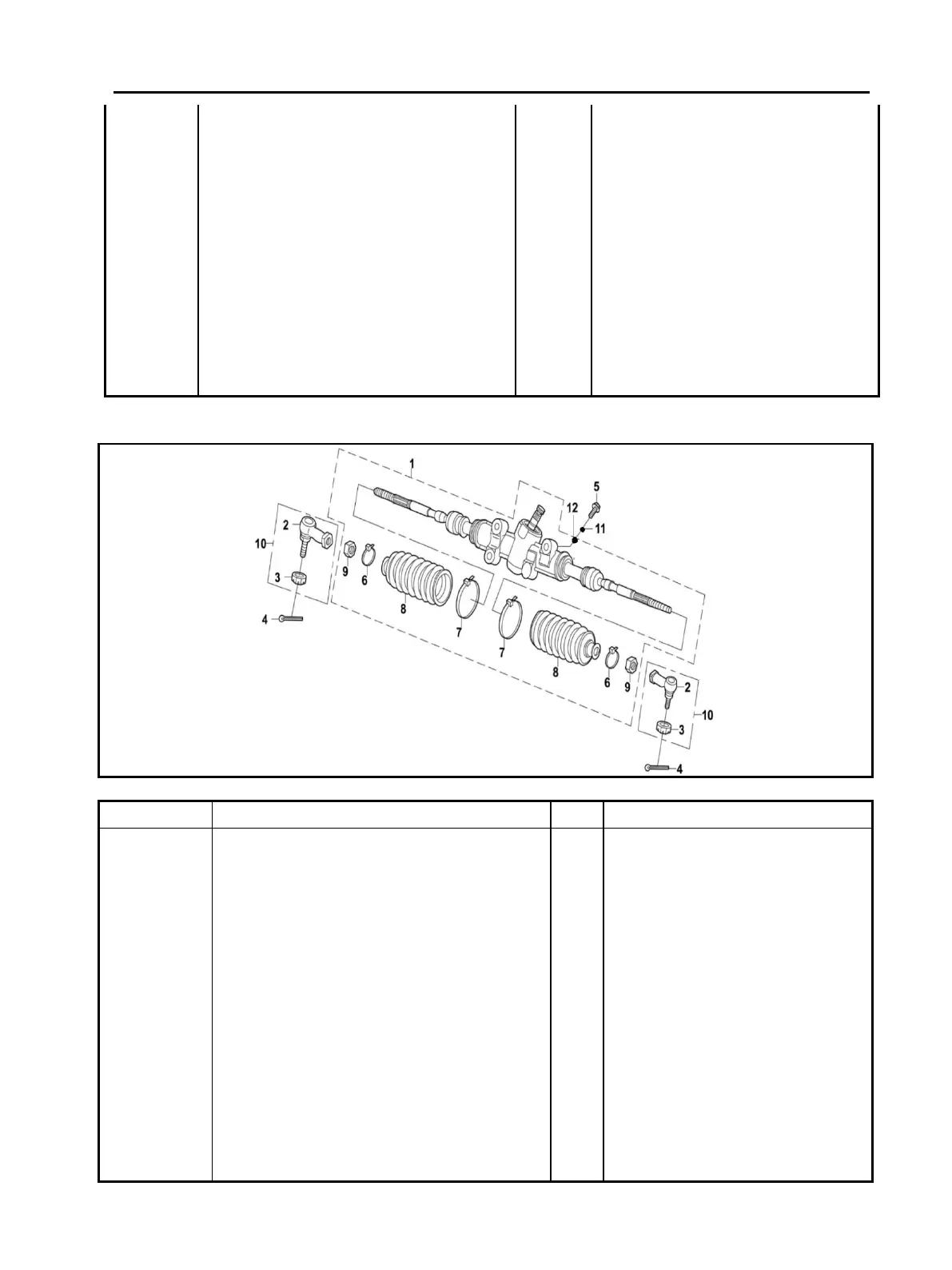

Removing the steering mechanism
1
Steering Gear Assy
1
2
Steering Gear Ball Joint
2
3
Hexagon Thin Slotted Nut M14×1.5
2
4
Pin 2×30
2
5
Hexagon Flange Bolt M10×1.25×35
4
6
Elastic Hoop H
2
7
Clamp
2
8
Rubber Boot Ⅰ
2
9
Hexagon Nut M14×1.5
2
10
Steering Gear Ball Joint
2
11
Spring Washer Φ10
2
12
Plain Washer Φ10
2
