5.5.1 Disassemble Universal
Joint
Remove:
• universal joint

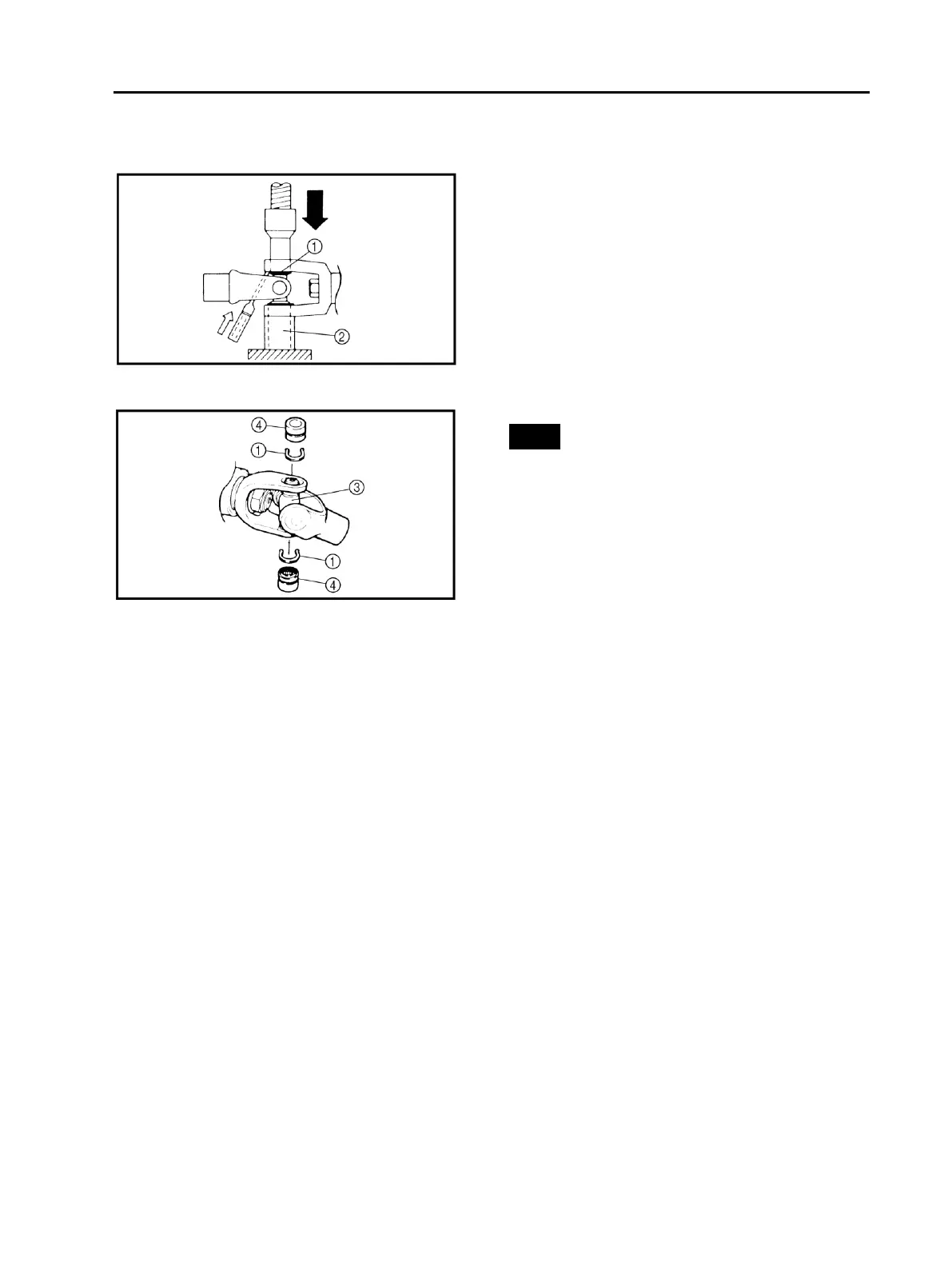

a. Remove the circlips ①.
b. Place the universal joint in a press.
c. With a suitable diameter pipe ② beneath the
yoke ③, press the bearing ④ into the pipe as
shown.
d. Repeat the steps for the opposite bearing.
e. Remove the yoke.
NOTE
It may be necessary to lightly tap the yoke
with a punch.
