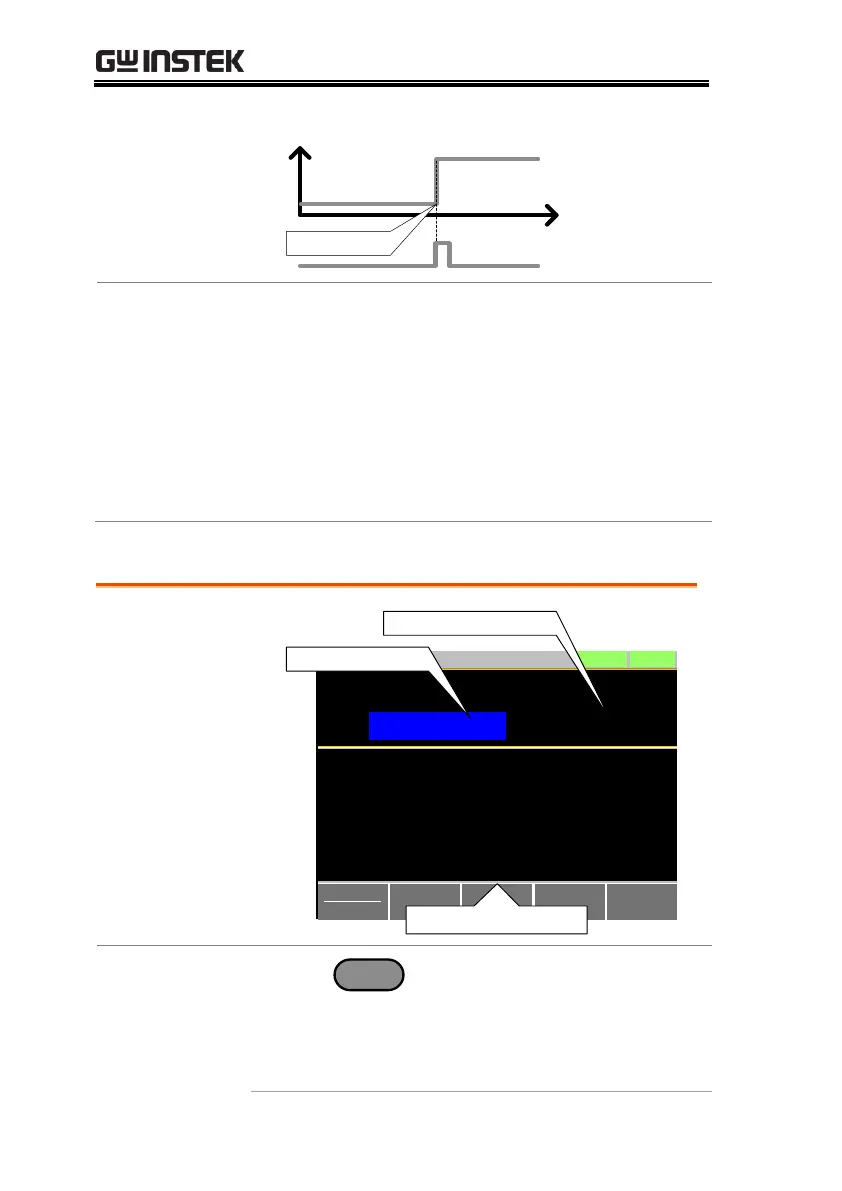

GW Instek PEL-3000 Series User Manual

PEL-3000(H) User Manual
130
Time
amplitude
TRIG OUT = ON
TRIG OUT
Start of step
PAUSE
ON, OFF
Pause: Inserts a pause at the
end of the step. When paused,
the unit will pause at the end of
the step
current/voltage/resistance/po
wer level. The sequence can be
resumed by pressing Next[F2]
or by using an external trigger
signal (page 183).
Timing Edit Configuration
Edit Timing
Display
Previous
Menu
LOADRS232
01/Oct/2017
Timing Edit for Normal Sequence
Loop:
Range:
Mode:
Infinity
ILVL
CC
Chain:
Last
Last Load:
Off
0.000 mA
OFF
Seq.No: S01
N. Seq.
Off
Edit
Sequence
Start sequence
Start S01
Memo: No Memo
Sequence number
Sequence settings
Operation
1. Press
FUNC
> Normal Sequence[F2].
 Note that N. Seq.[F1] is off by default.
2. Select Start and select the number of the
starting sequence.
