H3C S5120-SI Series Configuration Guide

1-3

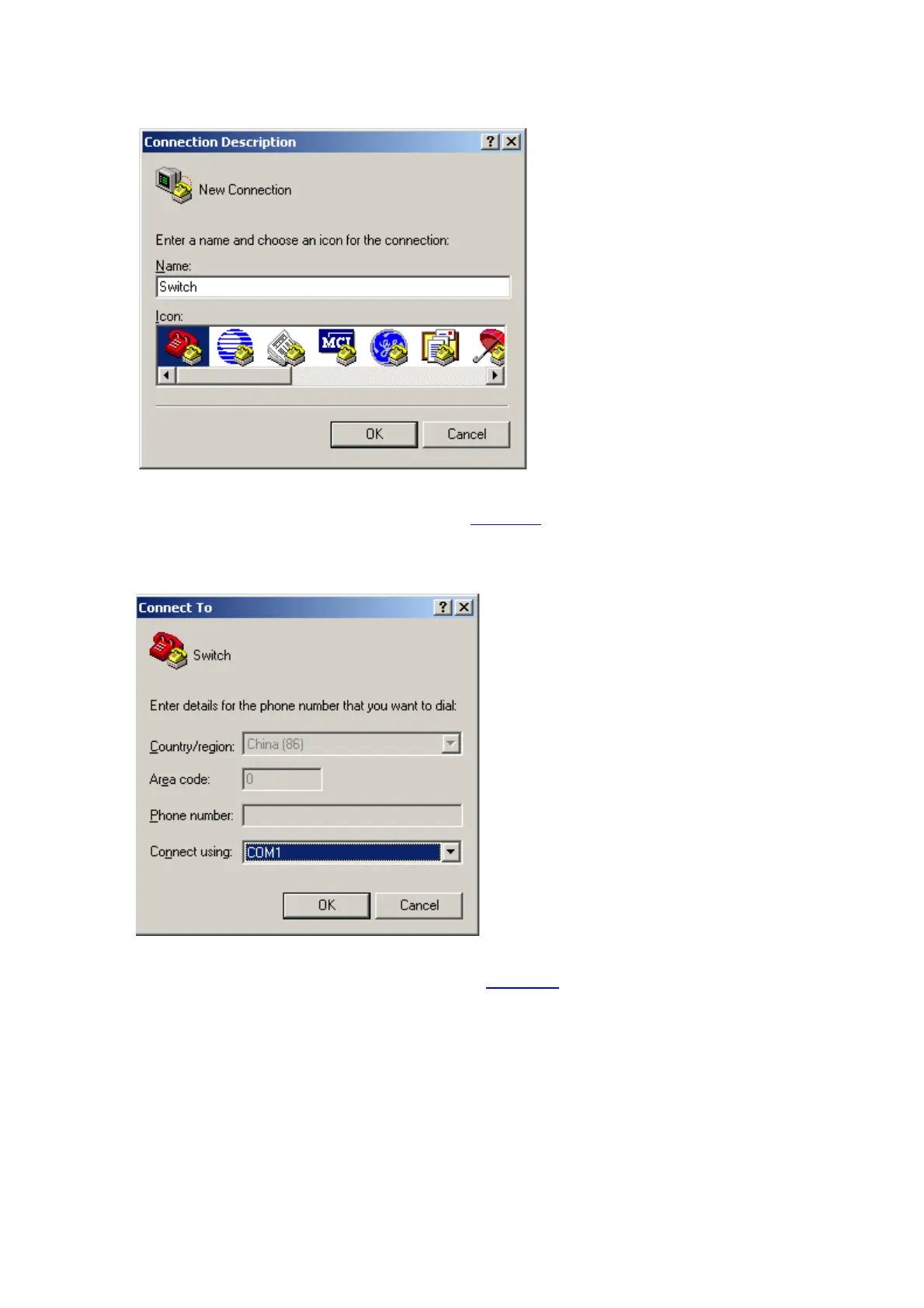

Figure 1-3 Connection description
3) Then, the Connect To window as shown in Figure 1-4
appears. Select the serial port you want to
use from the Connect using drop-down list, and then click OK.
Figure 1-4 Specify the serial port used to establish the connection
4) The COM1 Properties window as shown in Figure 1-5
appears. On the window, set Bits per
second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None. Click
OK.
