Haas Mill User Manual

158
G Codes
96-8000 rev R June 2007
Square Island
5
6
1, 14
2
7
8
10
X0, Y0
9
4
3

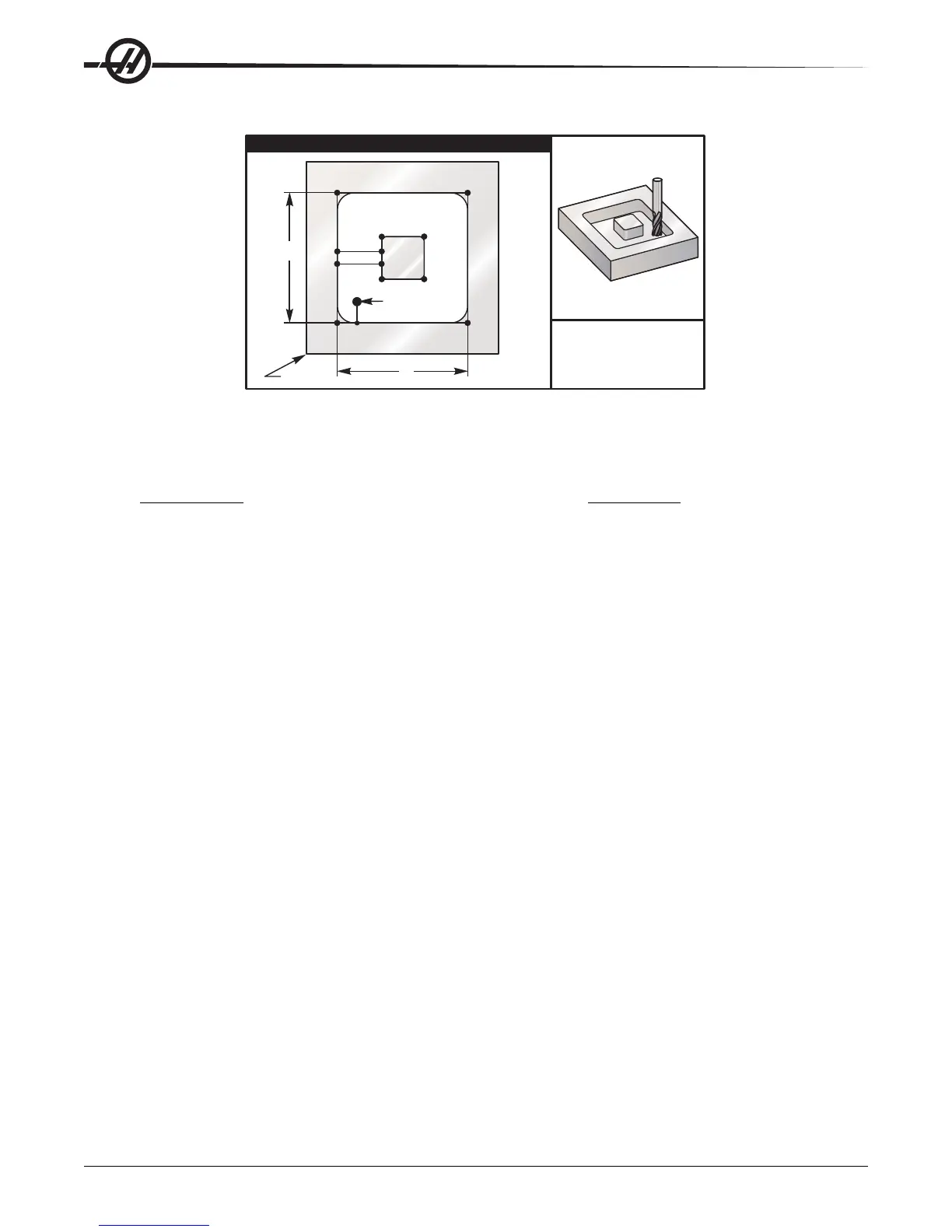

G150 Pocket Milling (Square Island)
G150 Pocket Milling (Square Island)
Tool #1 is a .500
diameter end mill
5
5
13
11
12
Start Point
G150 Pocket milling program with a Square island.
5.0 x 5.0 x 0.500 DP. Square Pocket with Square Island
Main Program Subprogram
%%
O02010 O02020 (Subprogram for G150 in O02010)
T1 M06 (Tool is a 0.500" diameter endmill) G01 Y1. (1)
G90 G54 G00 X2. Y2. (XY Start Point) X6. (2)
S2500 M03 Y6. (3)
G43 H01 Z0.1 M08 X1. (4)
G01 Z0.01 F30. Y3.2 (5)
G150 P2020 X2. Y2. Z-0.5 Q0.5 R0.01 I0.3 K0.01 G41 D01 F10. X2.75 (6)
G40 G01 X2. Y2. Y4.25 (7)
G00 Z1.0 M09 X4.25 (8)
G53 G49 Y0. Z0. Y2.75 (9)
M30 X2.75 (10)
% Y3.8 (11)
X1. (12)
Y1. (13)
X2. (14) (Close Pocket Loop)
M99 (Return to Main Program)
%
