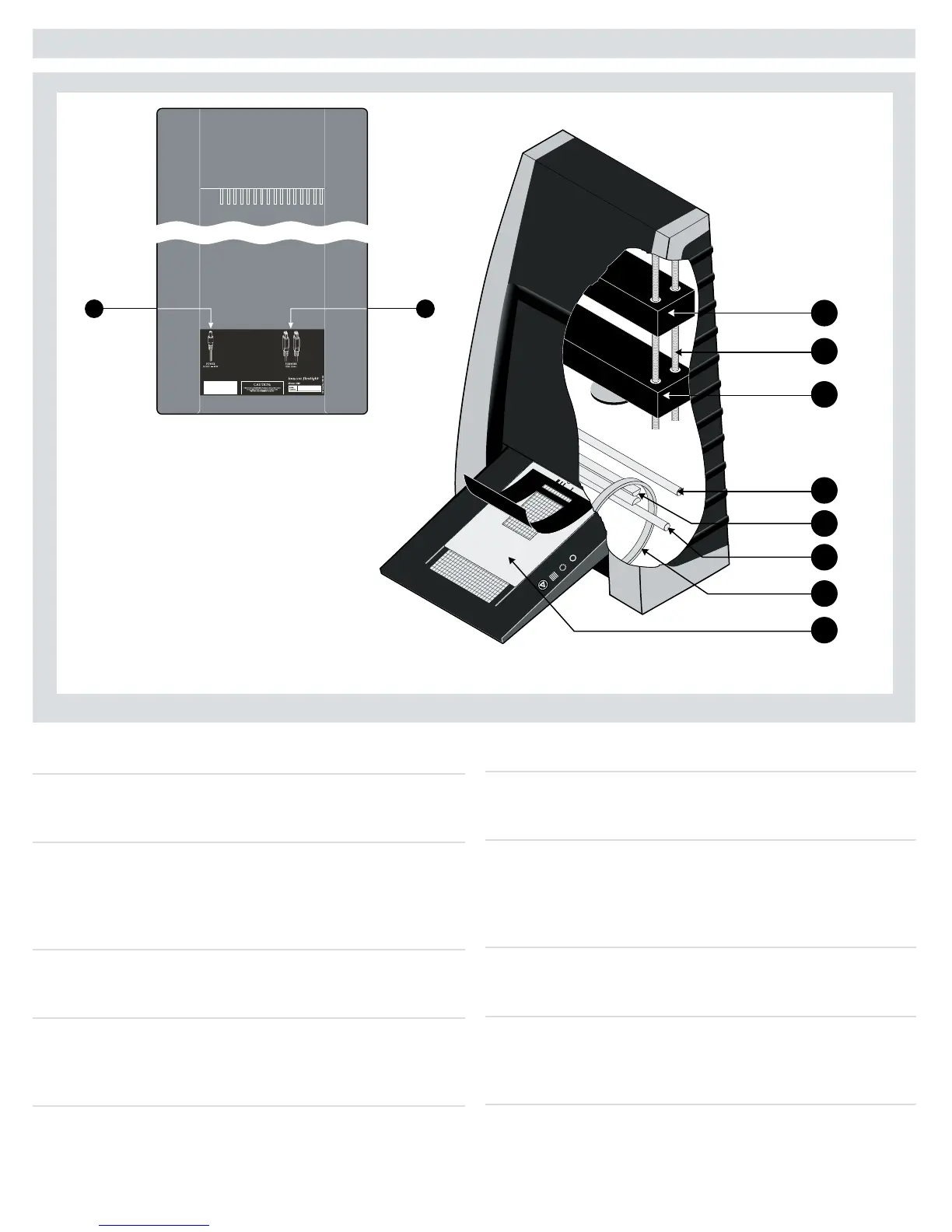

Hasselblad Flextight X1 - Parts and Components - Cutaway View; Power Cable and Interface Sockets; Internal Scanner Mechanisms; Scanner Light Sources and Prism Module

A Power cable socket
Connect the power cable into this socket.
B FireWire interface sockets
Socket for FireWire cable (max. 6 m) for computer con-
nection. e second socket allows connection to another
device (hard disk, printer etc.) in the FireWire chain.
C CCD housing
Movable platform holding the CCD sensor.
D Spindle
For positioning of the CCD housing and optics housing for
the appropriate resolution and original size.
E Optics housing
Movable platform holding the optics that focuses the image
of the original on the CCD-sensor.
F Upper light source
Illuminates reflective originals. Flextigh X5 only.
G Prism-module
Focuses the light from various angles and thereby removes
or heavily reduces dust and scratches in the scanned image.
Flextigh X5 only.
H Lower light source
Illuminates transparent originals.
I Drum
Rotates the original into the scanner and transports it past
the optical scan line.
J Original holder
In this case, a transparency holder is shown in the
mounted position and with the retaining flap held open.
